VEVOR CNC 3018 Pro CNC Router 15W Laser 3 Axis GRBL Regulation CNC Machine Laser Engraver, MGDKJ3018M15W0001V1, 742521694091
- Aluminum Material: Built with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides assist you monitor the engraving process conveniently.
- Three Perfectd Axes: The axes are equipped with knobs to assist you move the carving machine manually, meaningfully improving working efficiency for a precise carving setting.

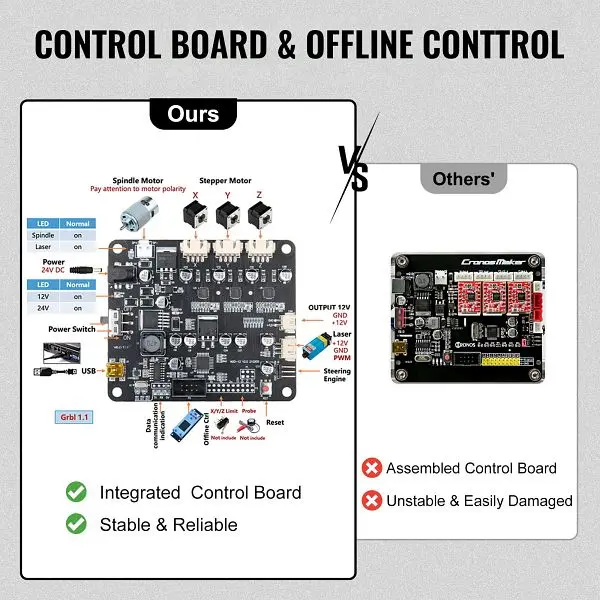

- GRBL Regulation Board: The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces back PWM, TTL functions for full function laser engraving.
- Offline Regulationler: An offline controller of the CNC router is also included for simple remote control without a computer to improve your working efficiency.

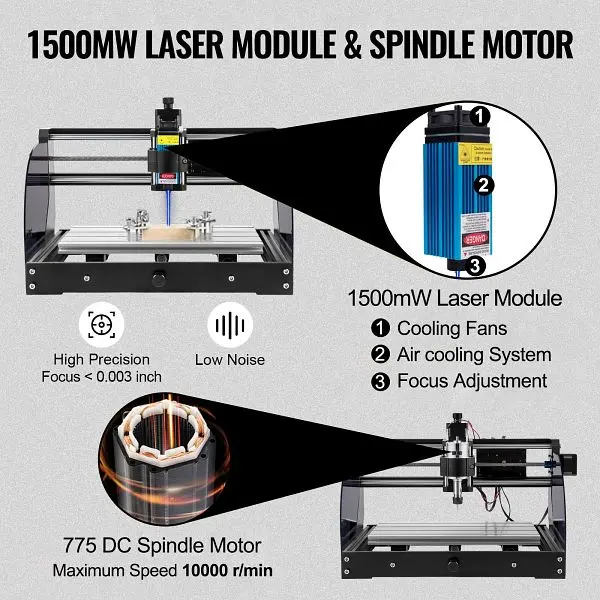

- High-efficiency Motors: There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.

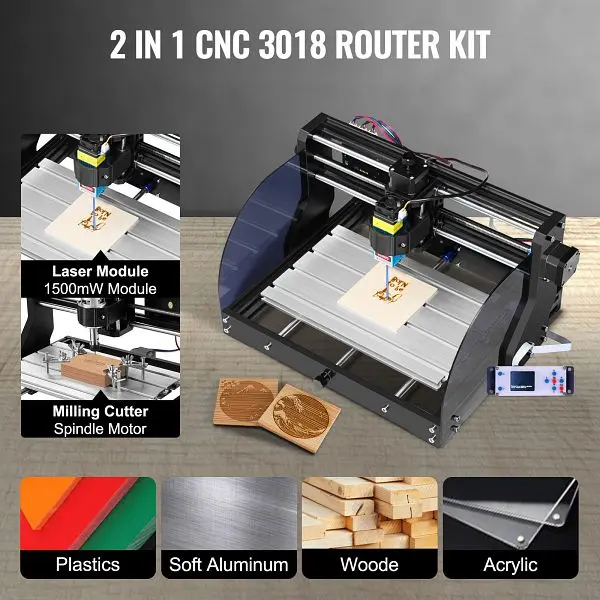

- Extensive Application: This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
- 1 x 3018 CNC Router Kit
- 1 x 15000mw Laser Module
- 1 x Spindle
- 1 x U-Disk (Software & Instruction)
- 1 x Set of Milling Cutter
- 1 x Pair of Preserveive Glasses
- 1 x USB Cable
- 1 x Power Provide
- 1 x Set of Tools
- 1 x Brush
- 1 x Card Reader
- 1 x Manual
Technical specs

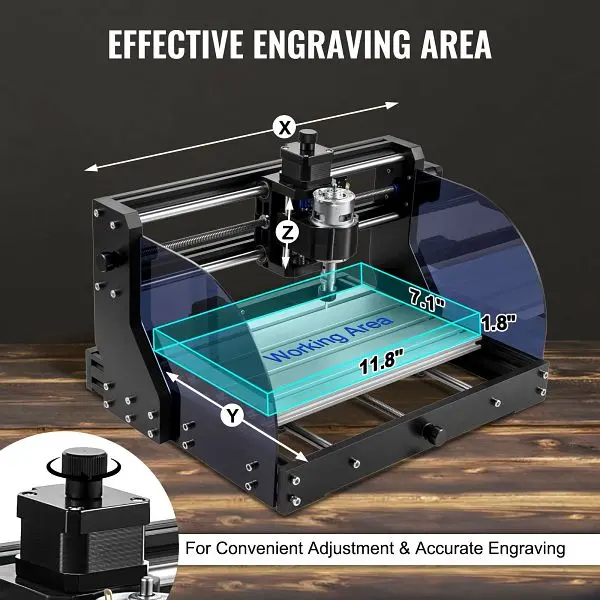

- Effective Working Area(X x Y x Z): 11.8″ x 7.1″ x 1.8″ / 300 x 180 x 45 mm
- Materials: Aluminum Profile & Bakelite
- Control Software: GRBL Control
- Input Power: DC 24V 5A
- Spindle Speed: 10000 rpm
- Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
- Driving Units: T8 Stainless Steel Screws
- Cutter Diameter: 0.125″ / 3.175 mm
- Positioning Accuracy: 0.003″-0.004″ / 0.08-0.1 mm
- Item Dimension: 15.7″ x 11.8″ x 9.4″ / 400 x 300 x 240 mm
