VEVOR Superior Cable Wire Stripping Machine 38mm Stripper Scrap Copper 0.06-1.5 in, Y-001-2BXQ0000001V0

VEVOR Cable Wire Stripping Machine 38mm Stripper Scrap Copper 0.06-1.5 in, Y-001-2BXQ0000001V0, 609832181248

Manual Hand Cranked Industrial Wire Stripping Machine

Powerful Motor & Large Wire Range & Standard Blades

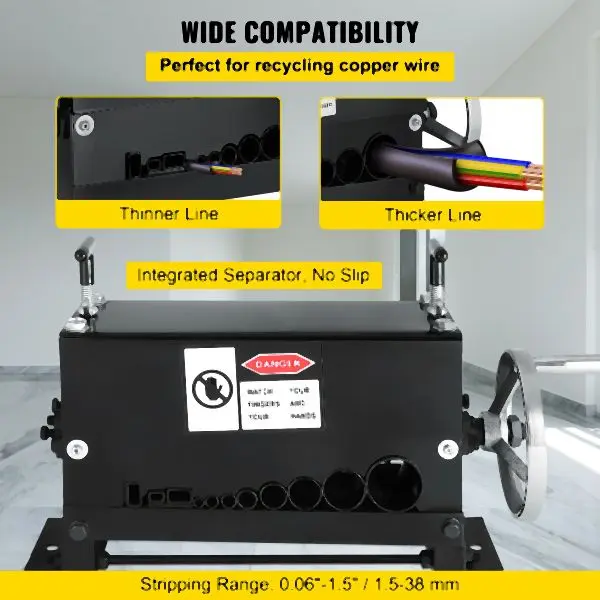

The machine features 11 channels of cutting wheels for stripping scrap copper wire. It strips wire from 1.5 mm up to 38 mm diameter. This machine can move the plastic and rubber insulation from undamaged scrap wire, recycle copper wire.

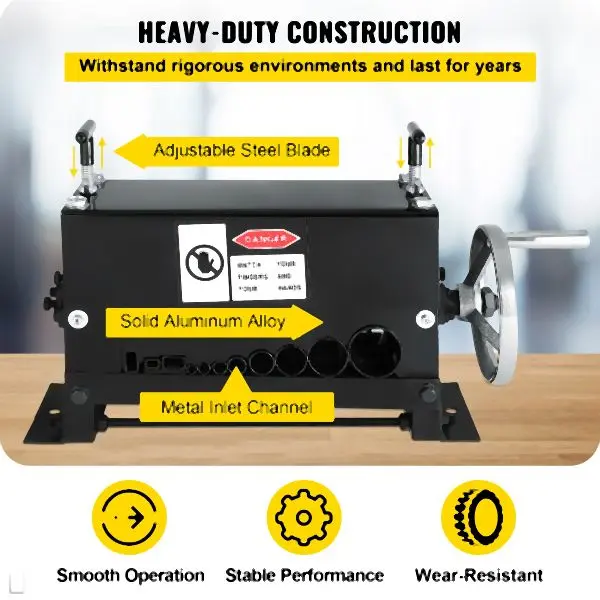

• Heavy-duty Construction
• Luxury Cutter Wheels
• Multiple Stripping Channels
• Hand-Crank Driven

• Stable & Space-saving: Travel-friendly and heavy-duty design to ensure security. Made of durable metal material. Easy to operate with two installation holes.
• Fully Blades Preserveion: 10 blades are of high hardness, to be rust-proof and provide fast stripping speed. The housing is utilized to prevent the blade from damage.
• Sufficient Stripping Force: Stripping Capacity is from 0.06″ to 1.5″ (1.5 – 38mm). Ergonomic hatchsupport design, adjustable two screws. The cutting force of this machine can be adjusted by regulating the distance between shafts through-bolts adjustment.
• 11 Cutting Channels: Incorporates both flat slot and round channels for stripping scrap copper wire and accommodate a variety of wire sizes.
• Adjustable Handle: It cut the necessary depth within the ring gear. The drive is manually carried on by the supplied handwheel.

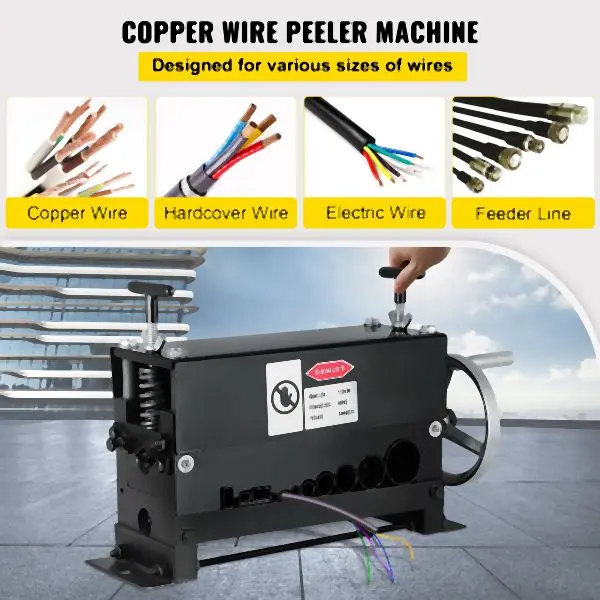

• Various Application: The manual wire stripper is able to strip round wires and flat wires of various specifications.

Package Content

• 1 x Wire Stripping Machine

Technical specs

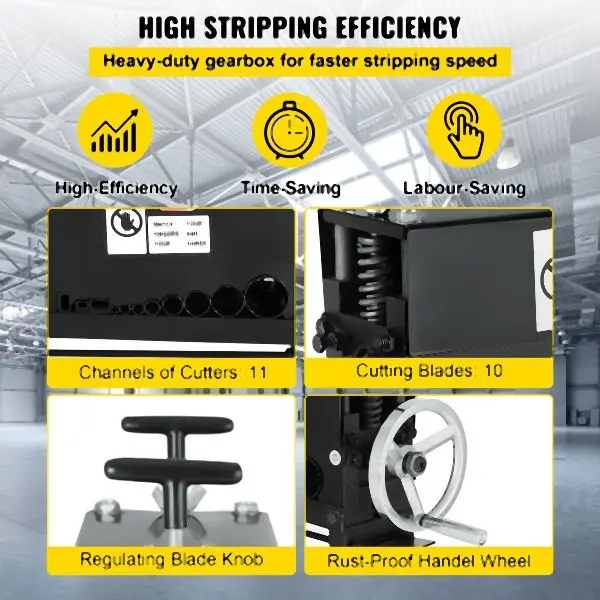

• Channels of Cutters: 11
• Wire gauge range: 0.06″-1.5″ / 1.5 – 38mm
• Overall Dimensions with handle: 520 x 135 x 290 mm / 20.47″ x 5.31″ x 11.42″
• Channel C: 6.0-9.0 mm Diameter Feeding Hole
• Channel D: 9.0-13 mm Diameter Feeding Hole
• Channel A: Flat Cable Feeding Hole
• Channel B: 1.5-6 mm Diameter Feeding Hole
• Channel G: 19.0-24 mm Diameter Feeding Hole
• Channel H: 24-28 mm Diameter Feeding Hole
• Item Dimensions: 16.5 x 4.5 x 9 inch / 41.9 x 11.4 x 22.8 cm
• Channel E: 13.0-16.0 mm Diameter Feeding Hole
• Channel F: 16.0-19.0 mm Diameter Feeding Hole
• Net Weight: 52.9 lbs / 24 kg
• Channel I: 28-38 mm Diameter Feeding Hole
• Cutting Blades: 10
