VEVOR CNC 3018 PRO Router Machine, GRBL Regulation 3-Axis Milling Engraver Engraving Machine, DIY CNC Router Kit, JCKDF3018PRO-P2NIV1, 700721009633
CNC 3018 PRO Router Machine w/ Transparent Enclosure

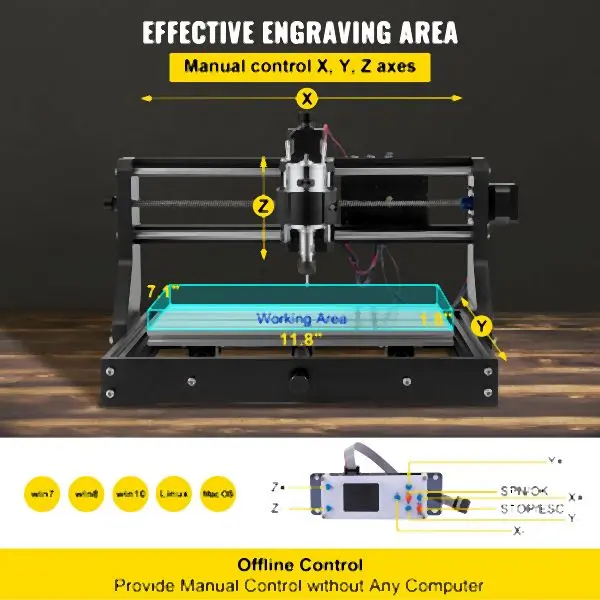

This CNC engraving machine with an effective working area of 11.8″(X)x7.1″(Y)x1.7″(Z) has an acrylic CNC enclosure to watch the engraving process from every side. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave plastics, soft aluminum, wood, PVC, etc.
- Long-lasting Aluminum Profiles
- Transparent Enclosure Incorporated
- Enhanced Three Axes
- GRBL & Offline Regulation
- High-Efficiency Motors
- Robust Aluminum Alloy: CNC 3018 PRO router machine is builded with aluminum alloy and bakelite materials, rustproof, hard-wearing, and durable. In addition, it has excellent cutting and milling performance to meet your various requirements.

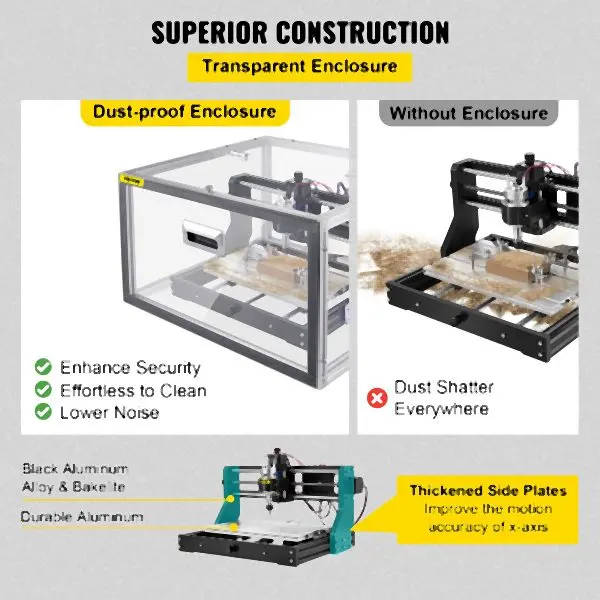

- Acrylic CNC Enclosure: This acrylic CNC enclosure is builded with premium aluminum alloy and acrylic boards to provide an all-around safe shield. It also prevents your workspace from being dirty and messy. Moreover, the noise will reduce up to 21dB during operation.

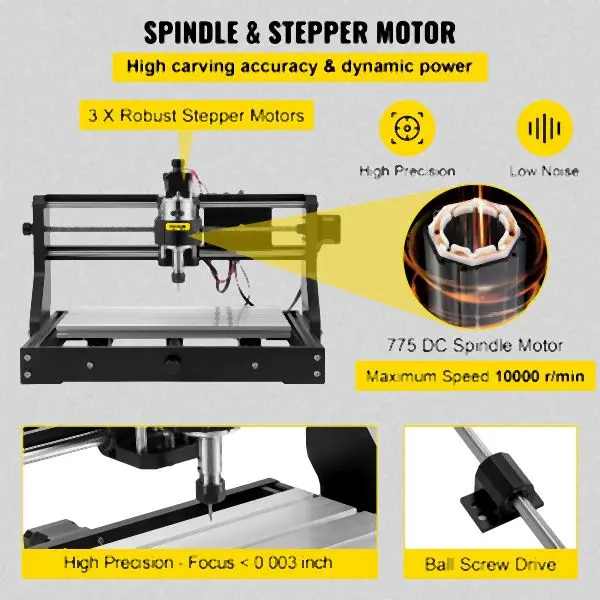

- Three Perfectd XYZ Axes: The axes are equipped with knobs to assist you move the carving machine manually. There are three 42 stepper motors on three axes for smooth movement. The 775 24V spindle motor on the Z-axis can reach the speed of 10000 r/min.
- Full GRBL Regulation Board: CNC milling machine features the GRBL control board, which can be connected to a computer via a USB interface. And the 3Pin laser driver interfaces back PWM, TTL functions for full function laser engraving.
- Practical Offline Regulationler: An offline controller of the 3-axis DIY CNC engraving machine is also included for simple remote control without a computer to improve your working efficiency for a precise carving setting meaningfully.

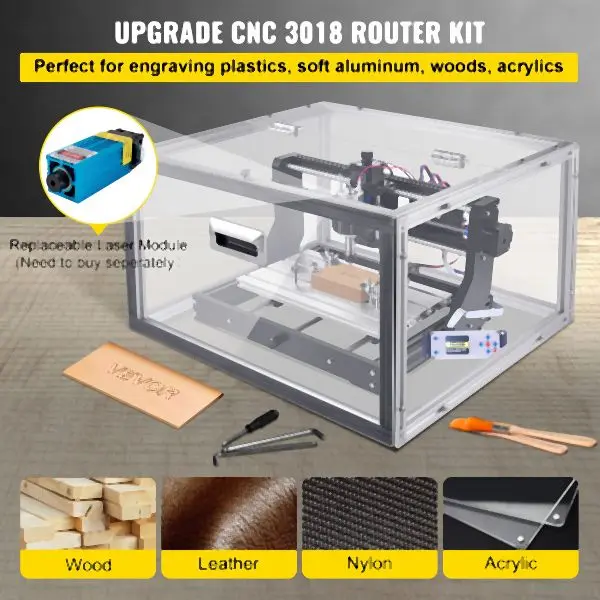

- Wide Usage Scenarios: This CNC router machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. It’s great for home DIY and small business.
Package Content
- 1 x 3018 CNC Router Kit
- 1 x Acrylic CNC Enclosure
- 1 x Set of Mounting Tools
- 1 x User Manual
Technical specs
- Control Software: GRBL Control
- Enclosure Thickness: 0.12 inch / 3 mm
- Enclosure Size(L x W x H): 21.3 x 18.6 x 12.3 inch / 54 x 47 x 31 cm
- Input Power: DC 24V 5A
- Materials: Aluminum Profile & Bakelite
- Enclosure Net Weight: 5.6 lbs / 2.54 kg
- Spindle Rated Power: 775 Spindle 60W; 10000 RPM
- Machine Size(L x W x H): 15.7 x 13.0 x 9.4 inch / 40 x 33 x 24 cm
- Machine Net Weight: 13.18 lbs / 5.98 kg
- Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Cutter Diameter: 0.125 inch / 3.175 mm
- Driving Units: Stainless Steel Screws
- Model: 3018Pro
- Enclosure Material: Aluminum Alloy & Acrylic
- Stepping Motor: 42HD, 12V, Torque: 0.25 N/m
- Positioning Accuracy: 0.003 inch / 0.08 mm
