VEVOR Rotary Welding Positioner 50KG, 0-90° Welding Positioning Turntable Table 0.5-6RPM 120W, HJBWJX50KG12BUA9MV1

VEVOR Rotary Welding Positioner 50KG, 0-90° Welding Positioning Turntable Table 0.5-6RPM 120W, HJBWJX50KG12BUA9MV1, 197988456117

With 12.4 Inch 3-Jaw Lathe Chuck & Welding Torch Stand Holder for Cutting, Grinding, Assembly, Testing.

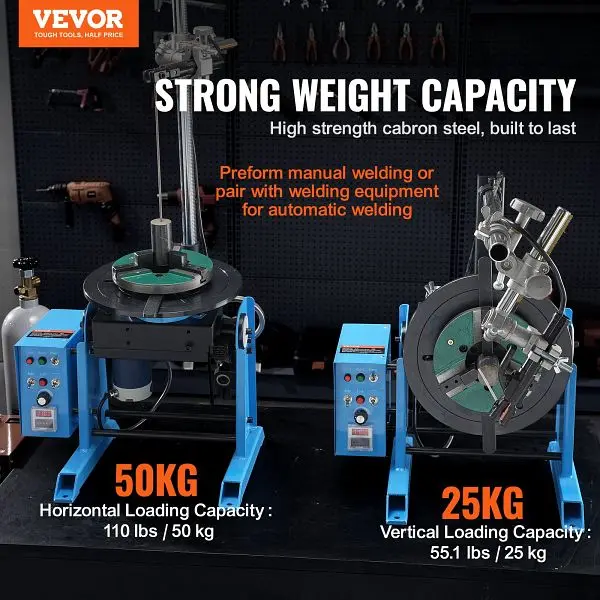

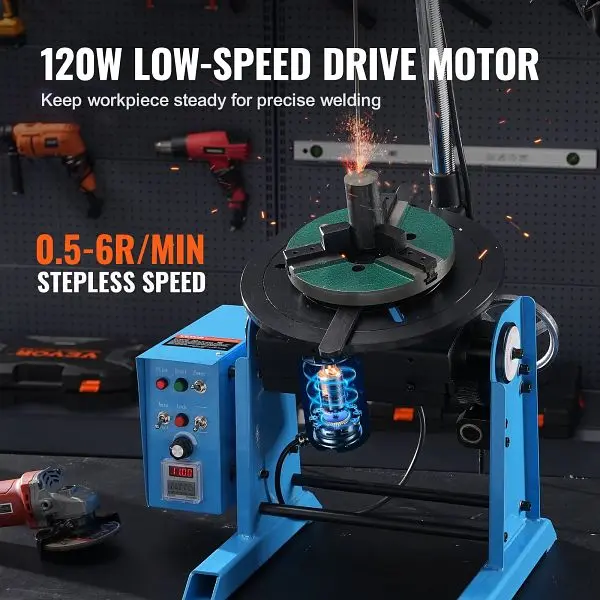

• Smooth Rotation: VEVOR rotary welding positioner boasts 120W high quality motor that runs at 0.5-6 rpm low speed for stable and smooth operation. With a load capacity of up to 55lbs/25Kg (vertical) or 110lbs/50Kg (horizontal), it offers excellent stability and backs efficient, precise welding.

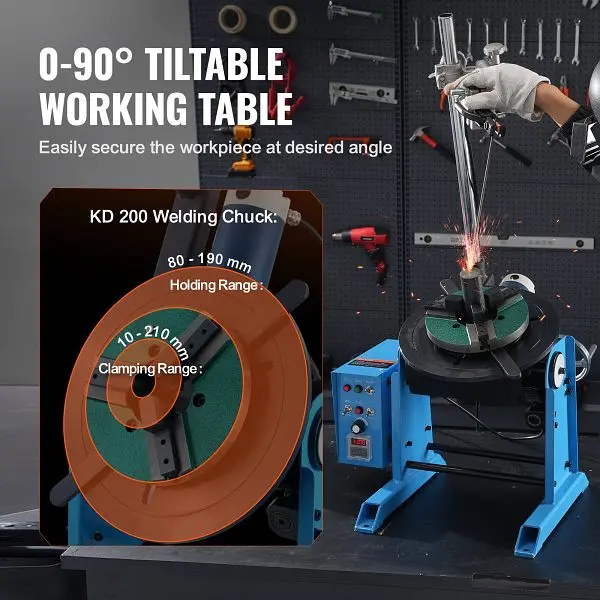

• 0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
• Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m backing range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.

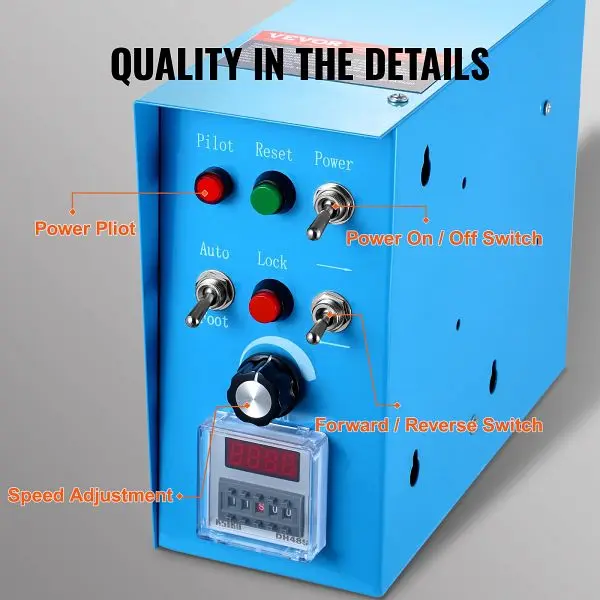

• Easy to Operate & Regulation: The welder positioning turntable table offers 0.5-6 rpm stepless speed adjustment. You can easily control the rotation speed with the utilizer-friendly control box. The convenient foot pedal switch also allows for simple control of table’s 360 degrees rotation.
• Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!

Technical specs

• Motor Power: 120W
• Speed: 0.5-6 RPM
• Horizontal/Vertical Load Capacity: 55lbs/25 kg ; 110lbs / 50kg
• Working Table Tilting Angle: 0-90°
• Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm
• Turntable Diameter: 12.4″ / 315mm
• Net Weight: 85.0 lbs / 38.6 kg
• Product Dimensions: 25.7″ x 19.8″ x 35.2″ / 652 x 502 x 895 mm
