VEVOR Pro-Series Bench Top Mini Metal Milling Lathe 7×12 Variable Speed 0-2250 RPM with Lamp, JSMNCC0618-3BYS01V1

VEVOR Bench Top Mini Metal Milling Lathe 7×12 Variable Speed 0-2250 RPM with Lamp, JSMNCC0618-3BYS01V1, 742521656976

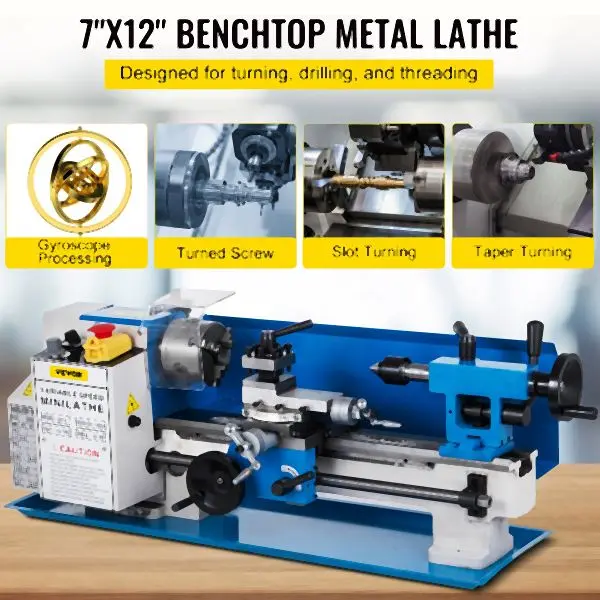

7″ x 12″ Metal Lathe

Variable Speed & w/ a Movable Lamp & Emergency Stop

The 7 x 12 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 550W DC Single Phase motor, designed to perform various types of metal turning, easy to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250 RPM spindle speed sublevel of two tranches spindle gear alter speed control, continuously adjustable. A movable lamp is free for you.

• Robust Iron Construction
• Infinitely Variable Speeds
• Accurate 3-Jaw Chuck
• Professional Compound Rest

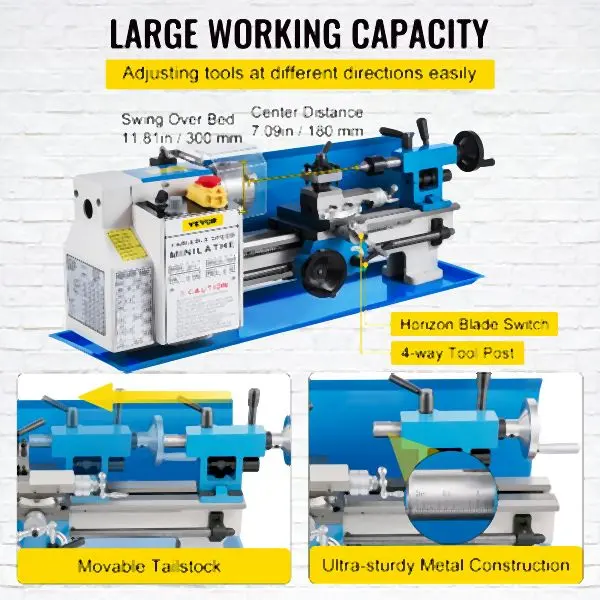

• Heavy-Duty Machine: Attributes a 7-inch swing over bed, 11.81 inch distance between centers and 0.83″ / 21 mm spindle bore. Incorporates a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.
• Infinitely Variable Speeds: Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

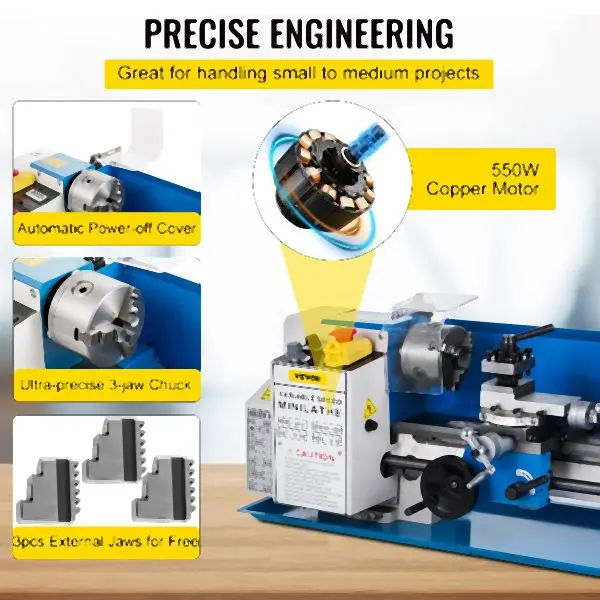

• High Accuracy Chuck: 3-jaw self-centering chuck has gone tested with accuracy and reiterateability to set cylindrical materials steadily. Backsplash guard included. Spindle is backed by precision tapered roller bearings, spindle accuracy within 0.01 mm.
• Four-way Tool Post: T-slotted compound slide with four-way tool post, simple to alter rapidly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
• Professional Cross Slide: Made of premium cast iron for exceptional hardness our mini lathe utilizes wearable nylon gears to provide strong and efficient power trans mission to the lathe. A lamp is for accurate operation in a dark circumstances.
• Adjustable Tailstock: The tailstock is compatible with any MT2 taper, slides along the way to back your workpieces of varying lengths, ensuring stable and secure operation.

Package Content

• 1 x Mini Metal Lathe
• 1 x Lamp
• 1 x Oil Can
• 3 x Chuck Jaw
• 9 x Gear
• 5 x Allen Key
• 2 x Wrench
• 1 x Set of Fitting
• 1 x Manual

Technical specs

• Spindle Speed: 0-2250 RPM
• Inch Thread: 12-52 TPI
• Spindle Bore: 0.83″ / 21 mm
• Volt: 110V
• Chuck Diameter: 3.15″ / 80 mm
• Spindle Taper: MT3
• Swing Over Bed: 7.09″ / 180 mm
• Tail Stock Taper: MT2
• Centers Distance: 11.8″ / 300 mm
• Item Dimensions: 27.5″ x 8.5″ x 11.6″ / 70 x 21.7 x 30 cm
• Metric Thread: 0.4-2 mm
• Power of Motor: 550W DC Single Phase
• Item Weight: 88.18 lbs / 40 kg
