VEVOR 32″ Manual Hand Plate Shear for Metal Sheet Processing, Benchtop Cutter with Q235 Material, SDJBQ31YC15MHUSH7V0, 840349955551
for Crafts Thick Steel Crafting, Heavy Duty Roll Press Machine for Builders, DIY Enthusiasts.

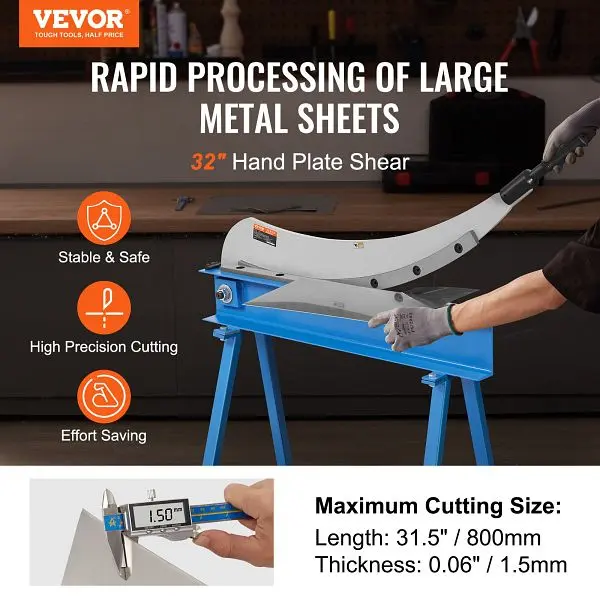

- 32″ Long Blade Steel Plate Cutting Machine: Maximum Cutting Size: Length: 32″ / 800mm Thickness: 0.06″ / 1.5mm. can cut larger size materials. Can easily cope with cutting large sized sheet metal. Can cut large size material at one time, no need to cut multiple times, which greatly improves your working efficiency.

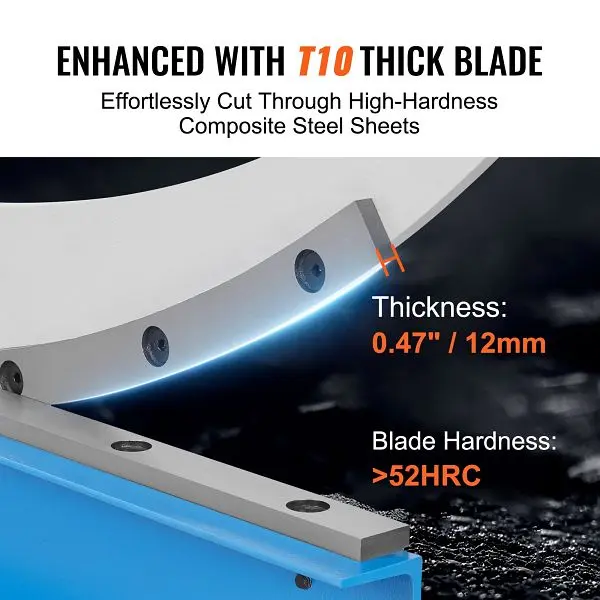

- Adopt T10 steel blade: Blade hardness: >52HRC; Thickness: 0.47″ / 12mm, all kinds of hard metal plates can be easily coped with. For example, mild steel plate, aluminum plate, aluminum alloy plate, electro galvanized plate, tinned plate, composite steel plate, color coated steel plate, this versatility creates it more convenient for you when working.

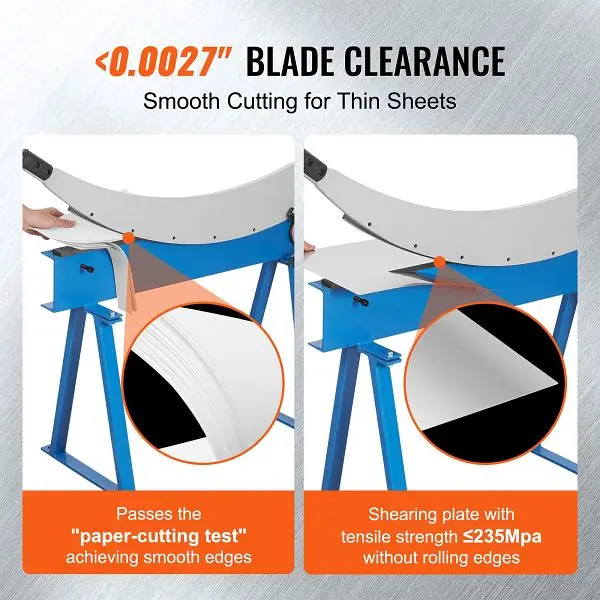

- Smooth cutting edges: <0.0027″Edge clearance, through the paper cutting test, paper can also cut a completely smooth edge. Cutting steel plate material, more can recognize the edge smooth without burr, avoid material is wasted or destroyed.
- Long Handle & Save Power: The long handle design allows you to generate more power with less effort, greatly reducing the challenge and fatigue of cutting. Whether you need to cut thick or hard materials, this plate cutter creates it simple for you and greatly improves your work efficiency.
- Solid Body: Robust steel frame, preventing the utilize of the process of shaking, stable and safe, so that you have more confidence in cutting materials, do not need to influence their movements becautilize of will be on the machine instability factors.
Technical specs
- Max. Shearing Length: 31.5″/800mm
- Max. Shearing Plate Thickness: 0.06″ / 1.5mm
- Blade Clearance: <0.07mm (Cuts Paper)
- Sample Specifications: Q235, 6mm x 70mm Steel Strip
- Shear Plate Tensile Strength: ≤235Mpa
- Operating Method: Floor Bolt Fixation, Manual Cutting
- Surface Treatment & Color: Painted, Blackened Treatment, Blue
- Primary Material: Q235, T10
- Product Weight: 92.15lbs / 41.8Kg

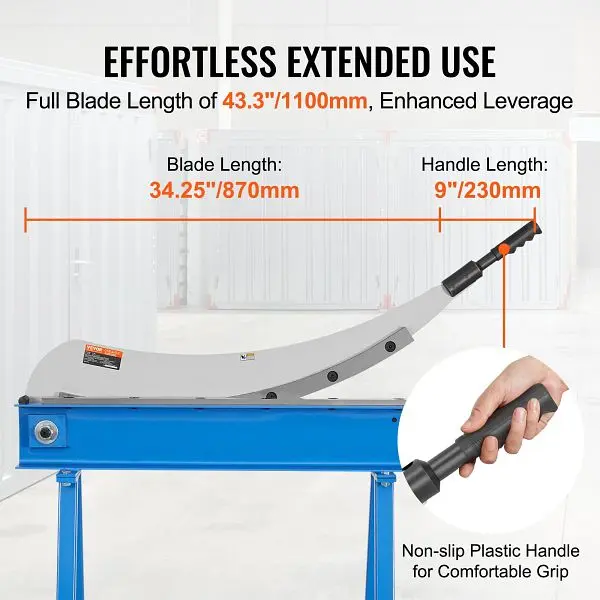

- Handle Length: 9″/230mm
- Product Dimensions: 53.15×8.66×41.34″/1350x220x1050mm
