VEVOR Linear Actuator 12V 20Inch 0.55"/s High Speed 220lbs/1000N IP54 Preserveion, CGXXZXQ20INCR452NV9

VEVOR Linear Actuator 12V 20Inch 0.55″/s High Speed 220lbs/1000N IP54 Preserveion, CGXXZXQ20INCR452NV9, 197988817031

• Fast & Productive Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55″/s. Ideal for applications requiring frequent height adjustments, whether it’s changeing furniture heights or raising and lowering office desks and chairs.
• Dependable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty assignments like lifting platforms and motorized doors and windows. Multi-functional for both home and industrial utilize, it delivers exceptional performance.
• Flexibility Unleashed: VEVOR’s 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

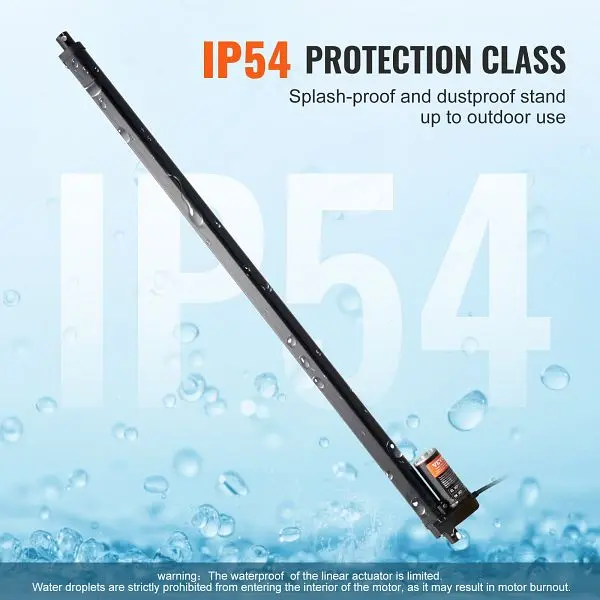

• IP54 Preserveion Rating: Dust, splashing water, or light humidity? No issue. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

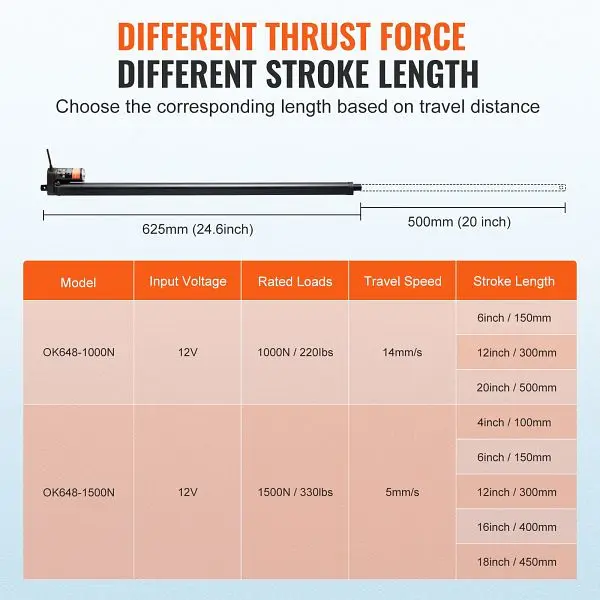

• Key Details: Stroke Length: 20 inch (500mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 24.6″ (625mm); Extended Length: 44.6″ (1125mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

Technical specs

• Item Model Number: OK648-1000N
• Rated Voltage: DC12V
• Maximum Load/Actuation Force: 1000N
• Travel Speed: >0.55 inch/s / >14mm/s
• Stroke Length: 20 inch / 500 mm
• Protection Class: IP54
• Noise Level: ≤50dB
• Rated Current: <5A

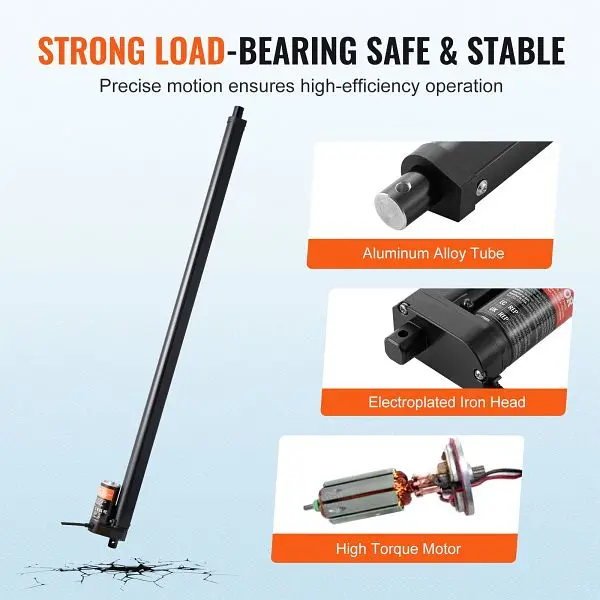

• Main Material: Aluminum Alloy
• Net Weight: 3.26 lbs / 1.48 kg (including all accessories)
• Product Dimensions: 24.6 x 2.95 x 1.57 inch / 625 x 75 x 40 mm
