VEVOR Custom Z-Axis Power Feed for Milling Machine, 450 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, 110VZDQ200PR1UNQCV1

VEVOR Z-Axis Power Feed for Milling Machine, 450 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, 110VZDQ200PR1UNQCV1, 197988815761

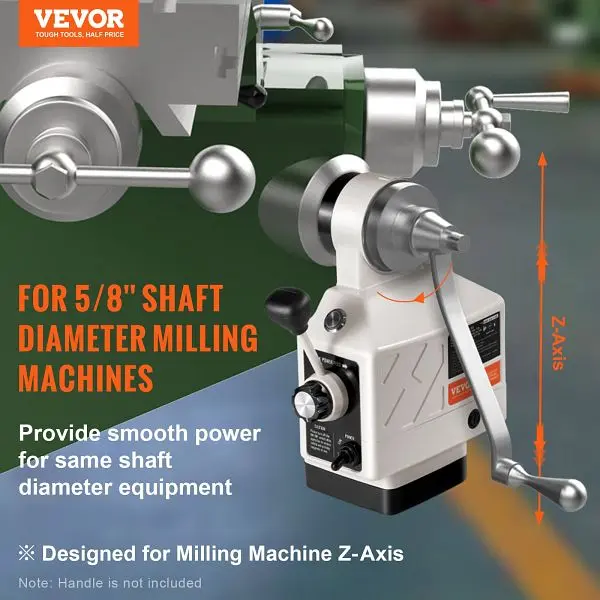

• Supreme High-Compatibility Solution: Our power feed table mill Incorporates everything needed to mount on most knee-type mills with a 5/8” end shaft diameter that distributes the identical installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.

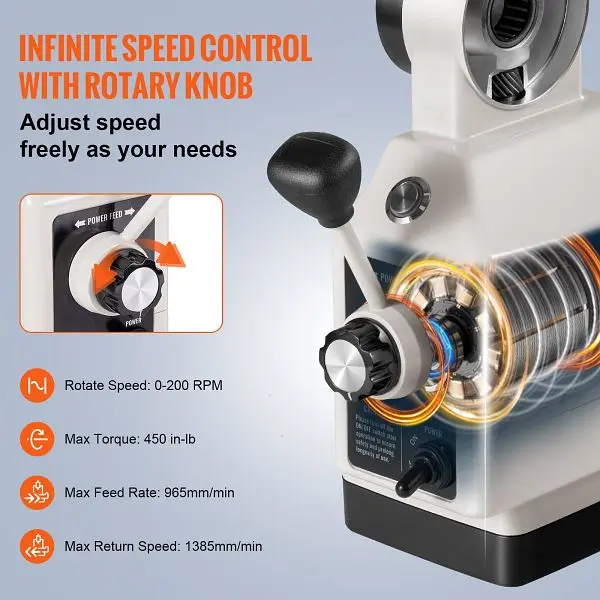

• Infinitely Variable Speed Regulation: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 450 in-lb(50.7 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.

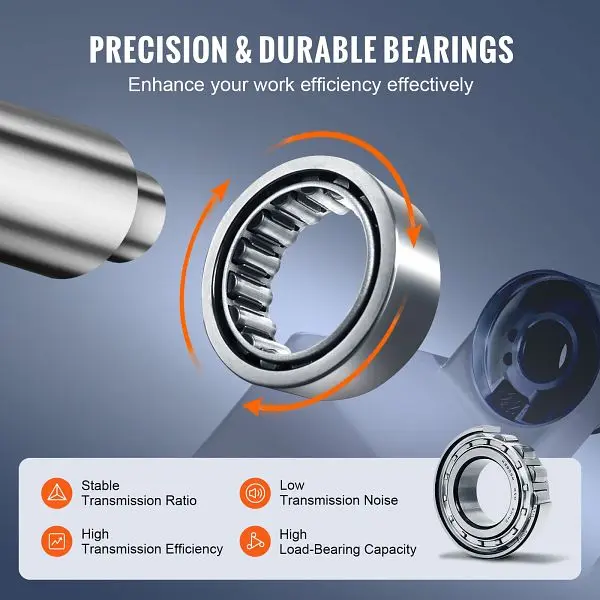

• Highly Stable and Productive: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission.

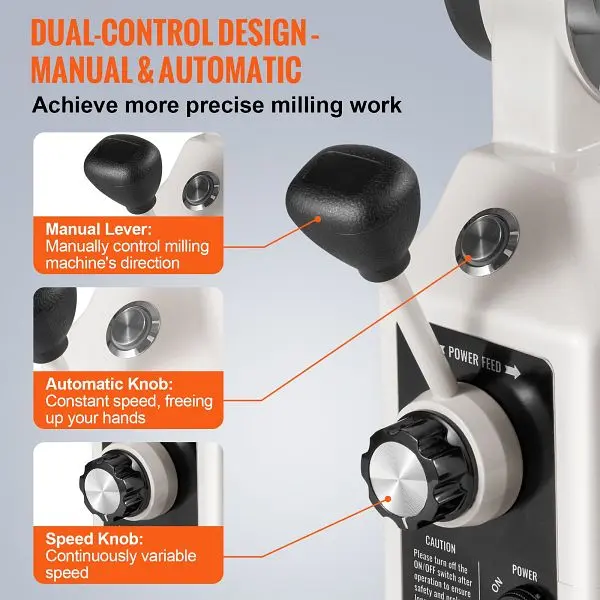

• Easy to Use, Manual or Automatic: Our power feed milling machine offers two different speed adjustment modes: manual and automatic. With manual control buttons, you can adjust the speed as needed. Alternatively, set the device to automatic constant speed mode for hands-free operation, making your milling assignments a breeze.
• Crafted for Z-axis Direction: This power feed woodworking enables smooth movement in the Z-axis direction. Its versatility extends to various machines, including radial milling machines, drilling and boring machines, small grinding machines, and specialized machine tools, ensuring stable power delivery across a wide range of equipment.

Technical specs

• Item Model Number: AL-450
• Use Axis: Z-axis
• Voltage Frequency: AC120V, 60Hz, 210W
• Speed Range: 0-200 RPM
• Max Speed: 200 RPM
• Max Torque: 450 in-lb(50.7 NM)
• Max Feed Rate: 965 mm/min
• Max Return Speed: 1385 mm/min
• Machine Tool Spindle Diameter: 5/8″
• Noise: ≤85 dB
• Net Weight: 12.57 lbs / 5.7 kg
• Product Dimensions: 9.45 x 8.27 x 4.72 in / 240 x 210 x 120 mm
