VEVOR Cnc 3018 Pro CNC 3018 CNC Machine Engraver for Wood Leather Polymer, DKJ3018PROJCK0001V1

VEVOR Cnc 3018 Pro CNC 3018 CNC Machine Engraver for Wood Leather Plastic, DKJ3018PROJCK0001V1, 617201480038

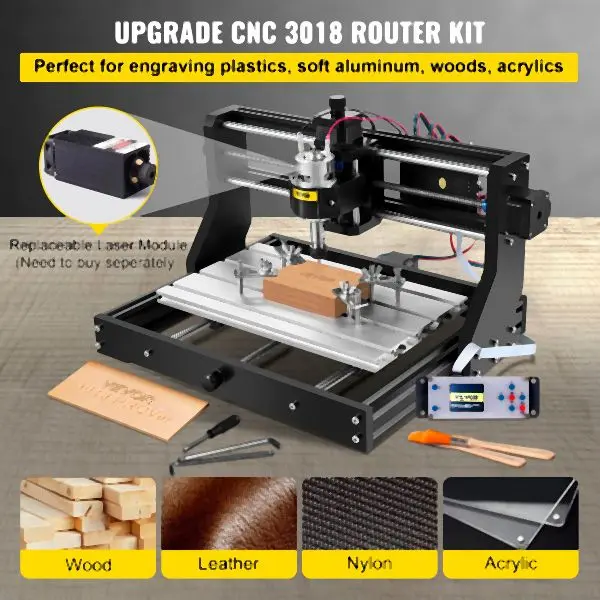

CNC 3018 Engraving Machine

Easy to Use & Enhancement Material & Complete Accessories

This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.

• Note: The machine does not come with a laser module. If necessary, you can purchase our modules to create the engraving machine more efficient.
• CNC 3018 Router Machine
• Large Working Area
• Excellent Motor
• Enhanced Regulation Board
• Robust Material

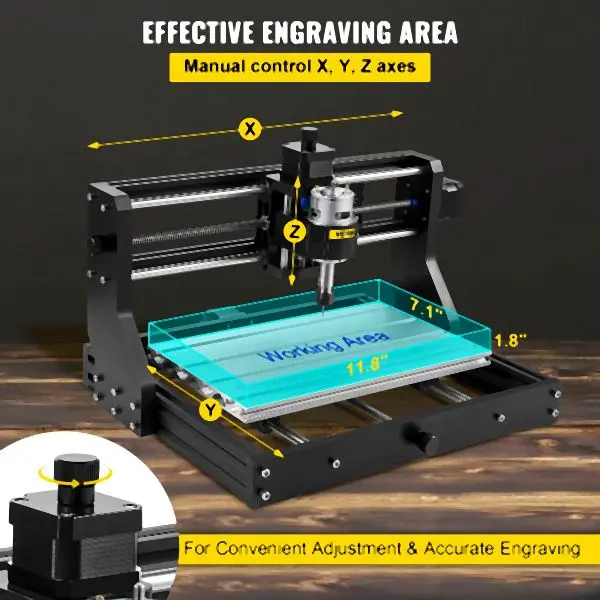

• Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to assist you move the carving machine manually, meaningfully improving working efficiency for a precise carving setting.

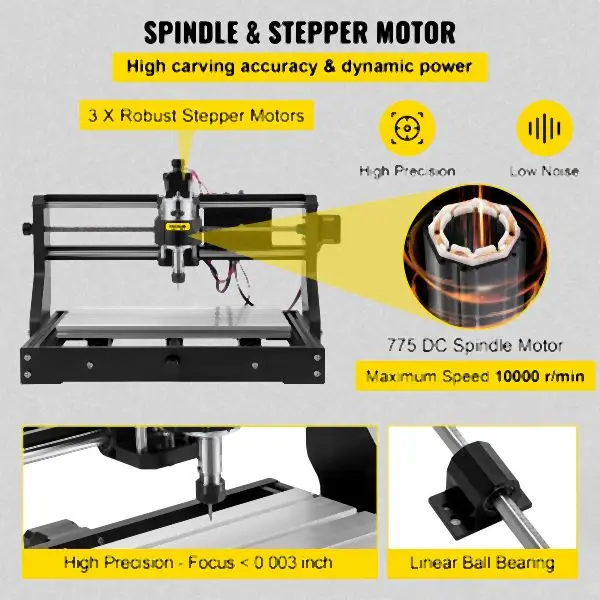

• Powerful Motor: There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.

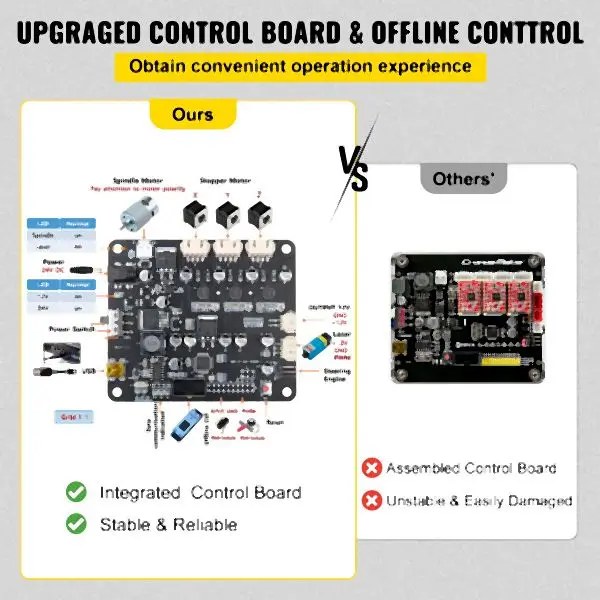

• Practical Regulation Board: The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting utilize.
• Extraordinary Standard: Built with aluminum alloy and Bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
• Easy to Install: We provide a detailed utilizer manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
• Extensive Application: This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

Package Content

• 1 x 3018 CNC Router Kit
• 1 x Offline Regulationler
• 1 x U-Disk (Software & Instruction)
• 1 x Set of Milling Cutter
• 1 x Cable
• 1 x Brush
• 1 x Manual

Technical specs

• Spindle Speed: 10000 rpm
• Control Software: GRBL Control
• Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 300 x 180 x 45 mm
• Input Power: DC 24V 5A
• Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
• Materials: Aluminum Profile & Bakelite
• Driving Units: Stainless Steel Screws
• Model: VG-S3018 Pro
• Stepping Motor: 12V; Torque: 0.25 N/m
• Positioning Accuracy: 0.003″ / 0.08 mm
