VEVOR CAT40 Merged Precision Keyless Drill Chuck, 1/2 inch, Collet Chuck for Haas CNC Engraving Machine & Milling Lathe Tool, CAT40ZTDJJ0000001V0, 609832153603
CAT40-APU13-100 Drill Chuck Keyless Chuck
The flexibility of the APU holder for APU type, can clamp drills, reamers, end mills, taps and much more. Keyless drill chuck is of capacity 1/2″, and it’s integrate with CAT40 holder into one piece. Drill chuck has very strong holding power and all Jaws are Hardened, V-Flange design.
- Long-lasting Spring Steel
- Great Accuracy
- Easy To Transform
- Simple To Operate
- Wrench Incorporated
- Heavy Duty Design: Made of high grade spring steel for long, durable service life.

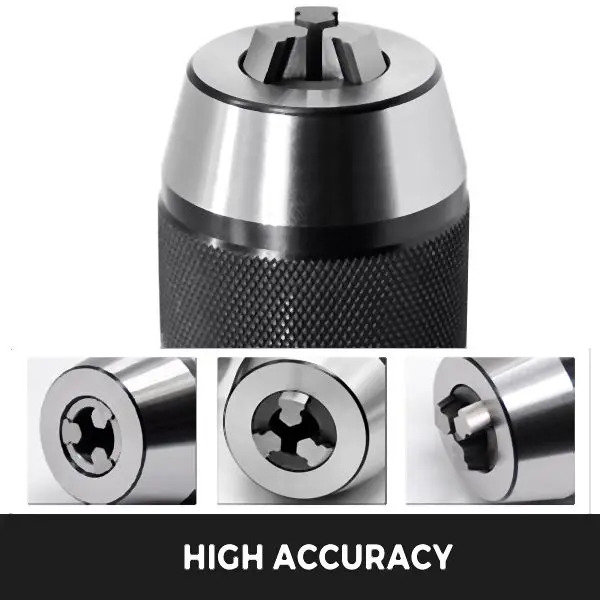

- High Accuracy: Lathe drill chuck with high accuracy. 4″ projection.
- Accessible Replacement: CNC Chuck uses V-groove, simple on tool alterrs for less spindle and alterr maintenance.

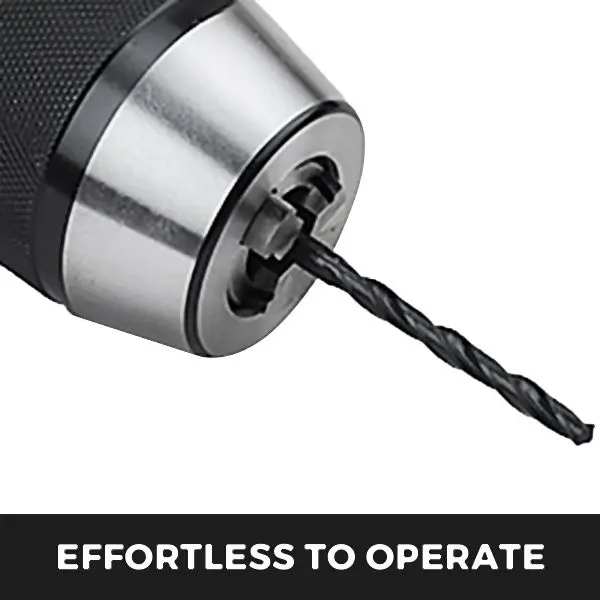

- Simple To Operate: User-friendly, safer than separate shank model.
- Free Wrench: A FREE wrench for extra tightening and simple release, a HAAS pull stud for any HAAS CAT40 spindle.
- Wide Application: Suitable for CNC Lathe/milling, drill press, and heavy duty hand tools.
Package Content
- 1 x CAT40-APU13-100 Drill Chuck
- 1 x Pull Stud
- 1 x Spanner Wrench
Technical specs
- Type: CAT40-APU13-100
- Drill Chuck
- Runout: 0.04 mm/0.0015” T.I.R
- Gage Length: 3.93”
- Balanced to: G2.5/20,000 RPM
- Rear Thread: 5/8”-11
- Drill Chuck Runout TIR: 0.0032-0.0048″
- Martial: 40cr
- Drill Chuck’s Capacity: 1/32 – 1/2″
- Drill Chuck Adapter
- Draw Bar Thread: 5/8”-11
