BS-0 Precision Dividing Head

The indexing head doesn’t only look great, but allow you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interalterable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect helpant to machine the flutes of a milling cutter, cut the teeth of a gear, mill curved slots, or drill a bolt hole circle around the circumference of a part.

• Strong in Construction
• Comfort of Adjustment
• With High Precision
• Strong Workpiece Substantiate

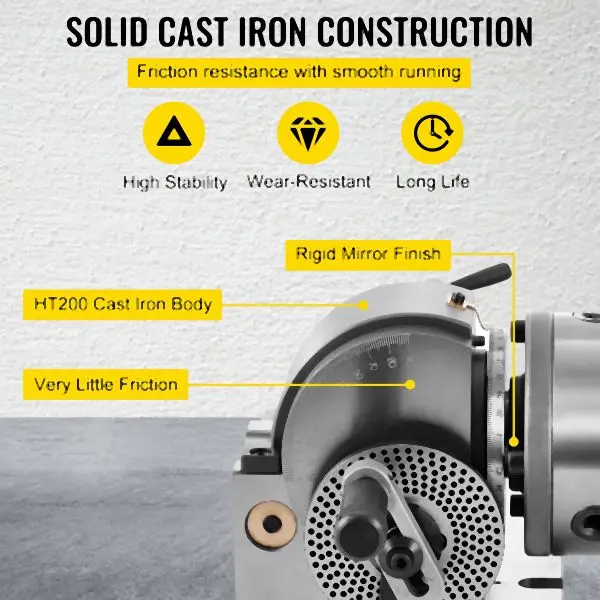

• Rigid & Long-lasting Body: The indexing head features a long service life due to its rigid quality. It is designed with a mirror conclude that resists wear and tear and looks low-profile.

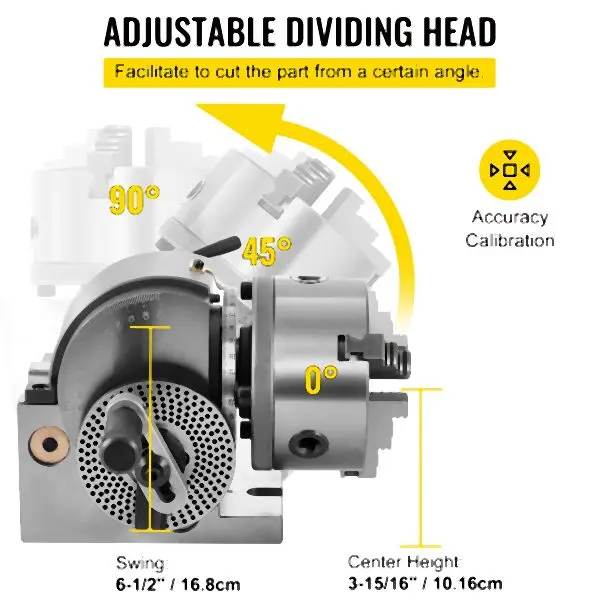

• Adjustable Headstock: The dividing head is enabled to tilt from 10° below horizontal to 90° vertical. And that will be convenient if you want to cut the part from a certain angle.
• Direct Indexing Plate: By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.

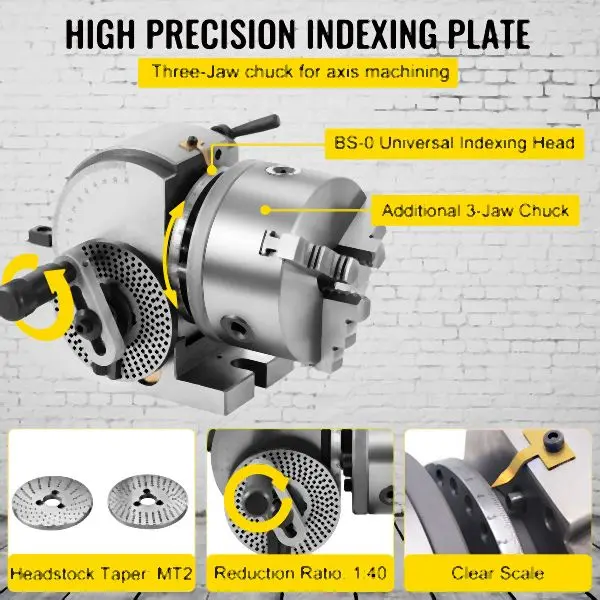

• More Precise Plates: The high precision performance of the indexing head is accomplishd with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
• Strong MT2 Tailstock: The MT2 tailstock gives strong back to the workpiece being machined. It is particularly utilizeful when the workpiece is relatively long and slender.

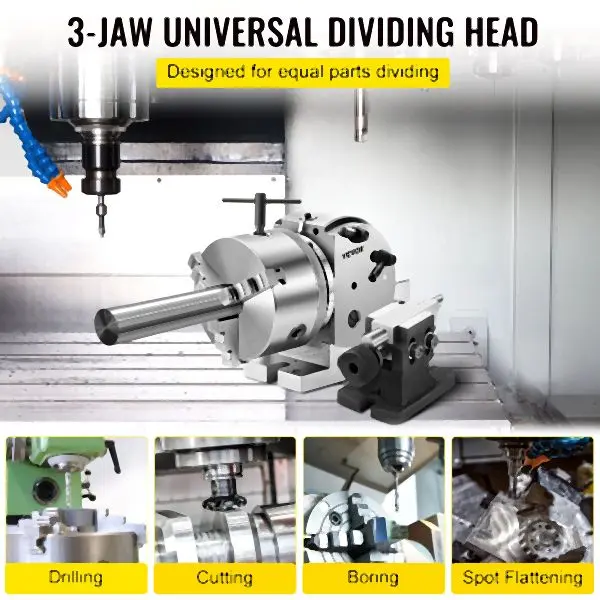

• Wide Application: The rotary indexer is utilized on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.

Package Content

• 1 X Dividing Head
• 3 X Dividing Plates
• 1 X Tailstock
• 1 X 125 mm 3-Jaw Chuck

Technical specs

• Headstock Taper: MT2
• Center Height: 3-15/16″ (10 cm)
• Headstock Dimensions: 9.5″ x 7.5″ x 6.5″ ( 24 x 19 x 16.5 cm)
• Swing: 6-1/2″ (16.5 cm)
• Tailstock Dimensions: 3.5″ x 6″ x 4″ (9 x 15 x 10 cm)
• Net Weight: 50.7 lbs (23 kg)
