VEVOR Benchtop Mini Metal Lathe 8" x 16" Digital Presentation Variable Speed with Chucks, JSMNCC8X16HHPJ001V1

VEVOR Benchtop Mini Metal Lathe 8″ x 16″ Digital Presentation Variable Speed with Chucks, JSMNCC8X16HHPJ001V1, 742521657034

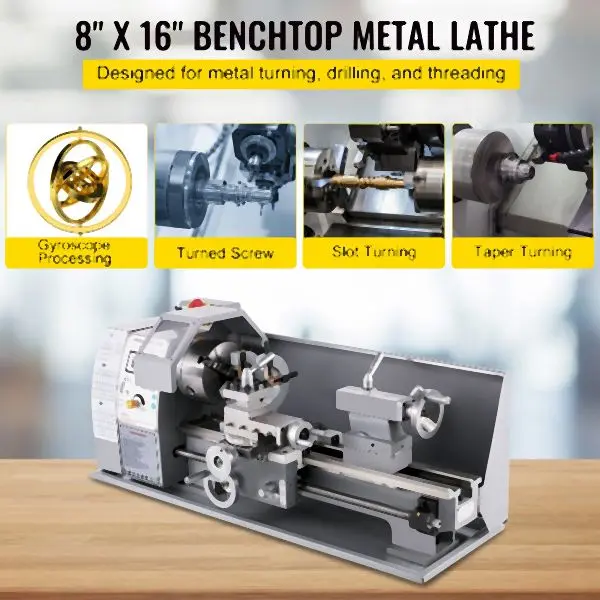

8″ x 16″ Variable-Speed Metal Lathe

The 8″ x 16″ precision mini benchtop lathe features a 4-jaw chuck, an MT2 tailstock taper, a tool rest, and a 1.5 HP motor, designed to perform various types of metal turning, easy to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250RPM spindle speed sub-level of two tranches spindle gear alter speed control, continuously adjustable

• Long-lasting Construction
• Variable Speed Regulation
• Effective Metal Lathe
• Large Swing Range

• Long-lasting Metal Lathe: Cast iron buildion creates wood lathes durable, providing boostd stability and smooth operation. 1100W powerful motor starts softly to offer the motor’s maximize security and low noise design.

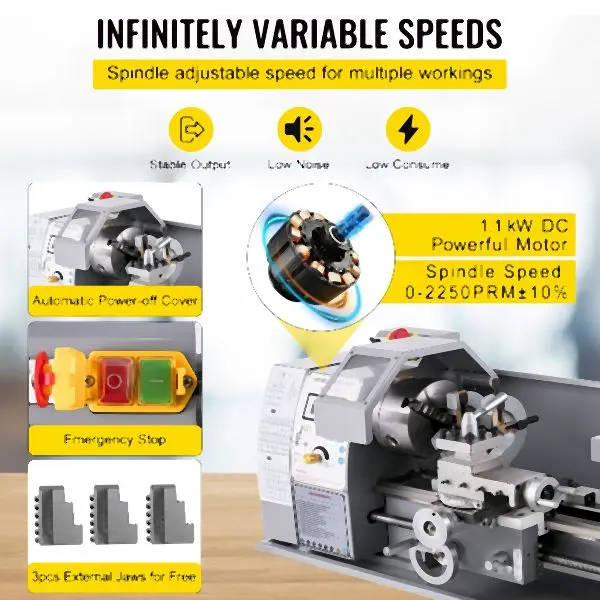

• Variable Speeds: The turning speed control knob clockwise or counterclockwise to adjust the speed freely within 0-2250 RPM. MT5 Spindle. It is simple to read via a digital speed display.
• Effective Tool Post & Chuck: High accuracy chuck with reiterateability to set cylindrical materials steadily. The lathe’s adjustable 4-way tool post allows you to alter your cutting tools easily and angles permitting beveling.

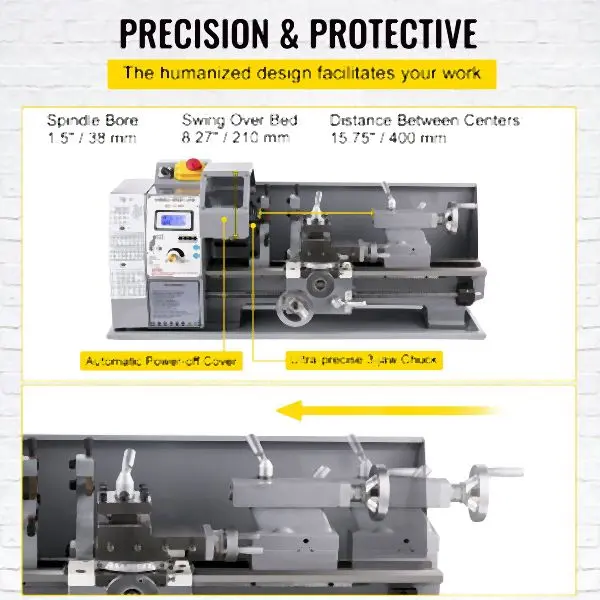

• Swing Range & Accurate Tailstock: This lathe has a swing over bed of 8″/210 mm and a distance between centers of 16″/400 mm. An MT2 taper can be moving smoothly to adjust proper lengths for workpieces.
• Professional Cross Slide: The lathe machine is designed with abrasive resistance, moving blades freely with a feed rod. 16 TPI reversible lead screw. The V-slideways with the distance between center: 16″ / 400 mm.
• Wide Application: The benchtop wood lathe is suitable for many processing assignments, including turning, drilling, threading, and cutting. It’s an ideal tool for utilize in labs, workshops, engineering, and education.

Package Content

• 1 x Mini Metal Lathe
• 9 x Cutters
• 6 x Metal Gears
• 1 x 3-Jaw Chuck (on the Machine)
• 1 x 4-Jaw Chuck
• 1 x Fixed and Travelling Steadies Set
• 7 x Jaws
• 1 x Quick Transform Tool Post Set
• 4 x Engineers Measuring Kit
• 1 x Accessory Kit
• 1 x Manual

Technical specs

• Phase: Single Phase
• Inch Thread: 8 – 44 T.P.I
• Spindle Bore: 1.5″ / 38 mm
• Variable Speed: 0 – 2250 RPM
• Volt: 110V 60Hz
• Chuck Diameter: 4.92″ / 125 mm
• Spindle Taper: MT5
• Swing Over Bed: 8.27″ / 210 mm
• Tail Stock Taper: MT2
• Item Dimension: 33″ x 13.4″ x 15.3″ / 84 x 34 x 39 cm
• Centers Distance: 15.75″ / 400 mm

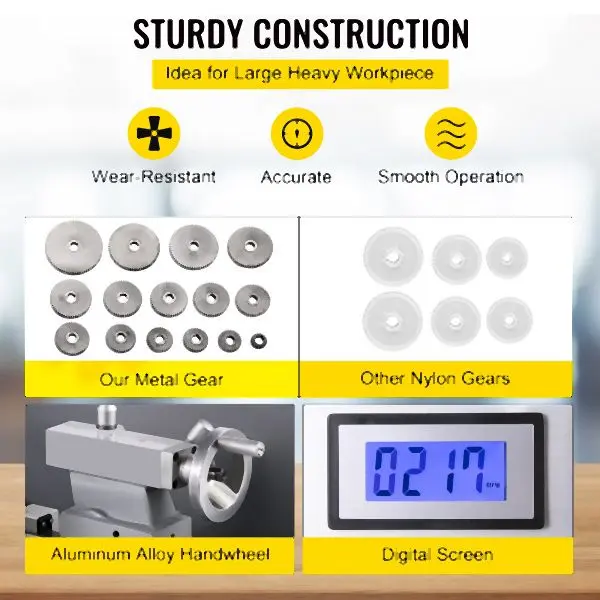

• Gear Material: Metal
• Metric Thread: 0.5 – 3 mm
• Power of Motor: 750W DC
• Item Weight: 180.78 lbs / 82 kg
