VEVOR 1100W Magnetic Rotary Drill Press, Maximum Boring Depth: 5" (125mm), MD40CLZJZT11JT001V1

VEVOR 1100W Magnetic Drill Press, Maximum Boring Depth: 5″ (125mm), MD40CLZJZT11JT001V1, 601285895253

Electric Magnetic Drill Press

This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 12000 N, an optimized rotation speed of 550 RPM. It is an vital tool for performing heavy-duty industrial and steel fabrication work.
NOTE: Our magnetic drill can only be utilized with hollow boring bits, not with annular bits.

• High-quality Executeance
• Luxury Coring Bits & Cooling Pot
• 12,000 N Magnetic Force
• User-Friendly Design
• Various Applications

• Excellent Executeance: Crafted for precise and demanding coring, this mag drill features 550 rpm and 1100 watts of motor power. Max. Coring Diameter: 1.57” (40 mm); Max. Coring Depth: 5” (125 mm). And our magnetic drill can only be utilized with hollow boring bits, not with annular bits.
• High-quality Accessories: 11 coring bits meet different working requirement, and it can be installed directly without drill clip. Also, there are a stainless steel coolant pot and a pilot pin provided for your convenient operation.

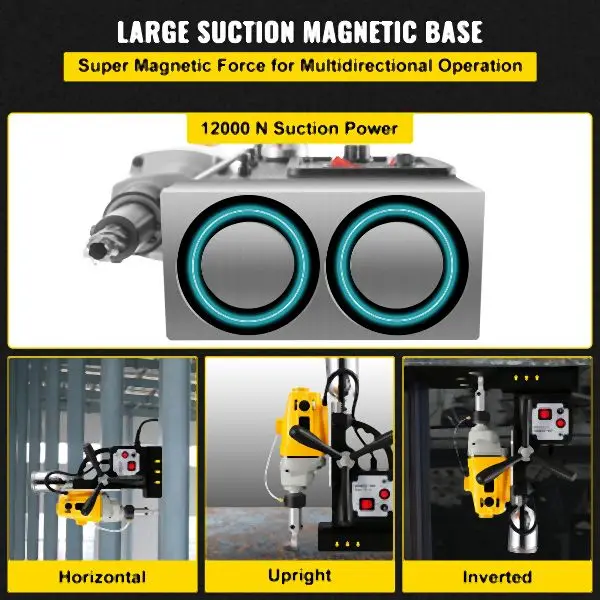

• 12,000 N Suction Power: The stable base acts as a powerful electromagnet to firmly fix the drill bit at a force of 2700 pounds (12,000 N) during work, preventing movement during drilling process.

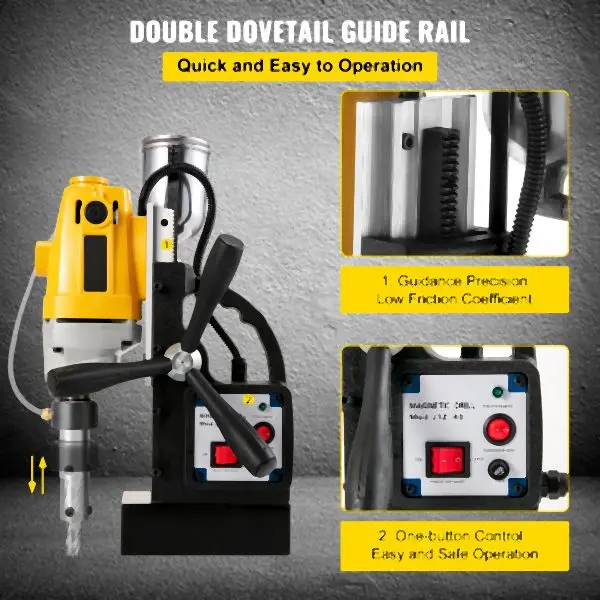

• Double Dovetail Guide Rail: The wear resistance of this double dovetail guide rail is better than that of ordinary guide rails, it boosts the rigidity and improves the wear resistance of the magnetic drilling machine.
• Considerable Specifications: The crank handles are coated with non-slip rubber, which creates the operation simple and labor-saving. The ergonomically designed handle provides a comfortable grip. A easy control panel allows simple operation.
• Various Application: The electromagnetic drill press plays a essentially crucial role in shipconstructing, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.

Package Content

• 1 X MD40 Magnetic Drill Press
• 7 X Core Drill Bit (0.47″ x 1″/12mm x 26mm, 0.51″ x 1″/13mm x 26mm0.59″ x 1″/15mm x 26mm, 0.63″ x 1″/16mm x 26mm, 0.71″ x 1″/18mm x 26mm, 0.79″ x 1″/20mm x 26mm, 0.82″ x 1″/21mm x 26mm)
• 4 X Core Drill Bit (0.90″ x 1″/23mm x 26mm, 0.94″ x 1″/24mm x 26mm, 1.02″ x 1″/26mm x 26mm, 1.06″ x 1″/27mm x 26mm)
• 1 X Stainless-Steel Pot
• 1 X Pilot Pin
• 1 X Rope
• 1 X User’s Manual

Technical specs

• Rated Frequency: 60 Hz
• Rated Input Power: 1100 W
• Maximum Boring Depth: 5″ (125mm)
• Maximum Boring Diameter: 1.57″ (40mm)
• Voltage: 110V
• Spindle Speed (No-load Speed): 550 RPM
• Overall Weight: 30 Lbs (13.6 Kg)
• 2700 lbs (12000 N) Max Magnetic Forcexx (Thinner Metal = Less Force)
• Toolholder: 3/4 in(19.05 mm) Weldon Shank
• Stainless-Steel Pot: 21.36 Cubic Inch/350ml
