Simatec Simatool Bearing Seal Instillation and Mounting Tool Kit, FT-P

Simatec Simatool Bearing Seal Instillation and Mounting Tool Kit, FT-P

Attributes:

• Part Number: 310.1330
• Ships directly from the Simatec USA warehoutilize so you can be confident that you’re getting the newest model!
• Swiss Made
• For mounting bearings with bore diameters from 55 – 60mm.

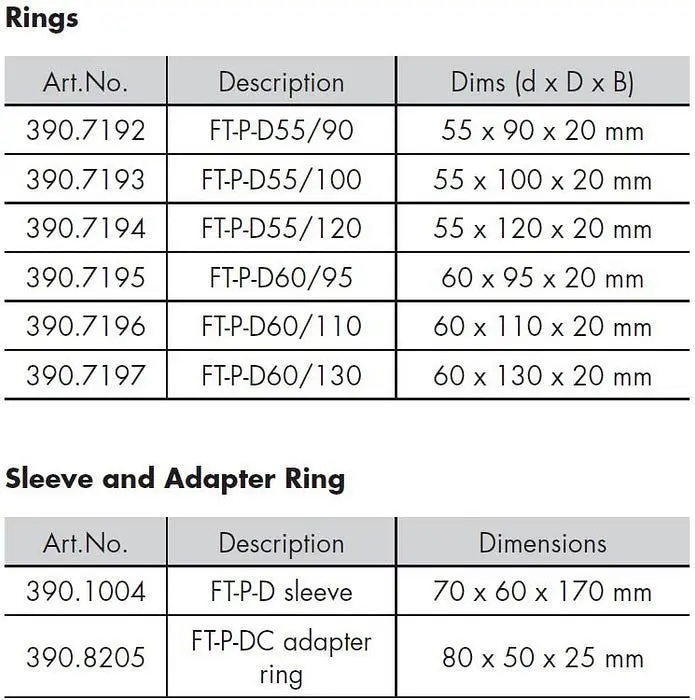

• Consists of: 6 Aluminum Rings, 1 Sleeve, 1 Modifyer Ring, Superior case with attached instructions.
• An ideal answer for installations with high installation forces.
• Can be utilized with a mechanical Press (with force of up to 5 tons)
• If there is a suitable receptacle, the sleeve can also be screwed tightly to the press.

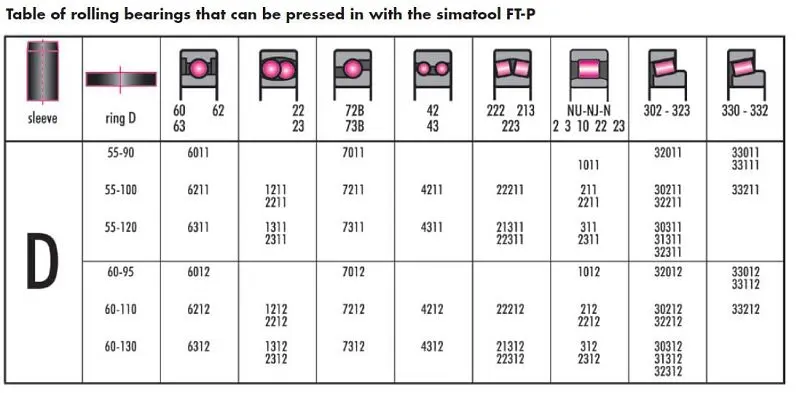

• Can be utilized with the rings C35 / 62 to C50 / 110 of the FT 33 Thanks to the special DC adapter of the FT-P, the C-rings of the Fitting Tool FT 33 can also be utilized on presses.
• Seals can be mounted without a press: Seals with an inside diameter of up to 60 mm can be easily mounted using a hammer. On roller bearings with bore diameter 55, on the other hand, the tool must be utilized with a press.

If you need an simple way to mount seals, beings and other parts with your mechanical press you’re going to need the Simatec Simatool FT-P Bearing Seal Instillation And Mounting Tool Kit. It, in combination with a mechanical press, guarantees the correct assembly of components with an inside diameter of greater than 50 mm. The FT-P is the ideal answer for installations with high installation forces.
