Simatec Simatherm Induction Bearing Heater, for rolling bearings up to 150kg, IH 090

Simatec Simatherm Induction Bearing Heater, for rolling bearings up to 150kg, IH 090

Attributes:

• Part Number: 110.1401
• Ships directly from the Simatec USA warehoutilize so you can be confident that you’re getting the newest model!
• Swiss Made
• Great for: Bearings, gearwheels, Sprockets, compression rings, Labyrinth rings, Sleeves, & Joints.
• For rolling bearings weighing up to 150 kg
• For parts with an inner diameter of 20 – 400mm
• Operating Area (W x D): 145 x 205 mm (Optional: 145 × 410 mm)
• Dimensions: 420mm x 280mm x 420mm
• Obtainable for voltages of 400, 575 and 200 V
• Temperature range from 20 to 250 °C
• Maximum temperature: 400 °C
• Variable Power Level: 5 levels: 20%, 40%, 60%, 80%, 100%.
• Magnetic Probe Incorporated: Yes
• Coil Diameter, 155mm
• Frequency: 50 – 60Hz
• Max Amperage: 16A, 16A, 25A.
• Power: 6.4 – 7.4kVA. 9.2kVA, 5kVA.
• Accuracy: ± 3 °C
• Overall weight: 38 kg
• Swivel Arm

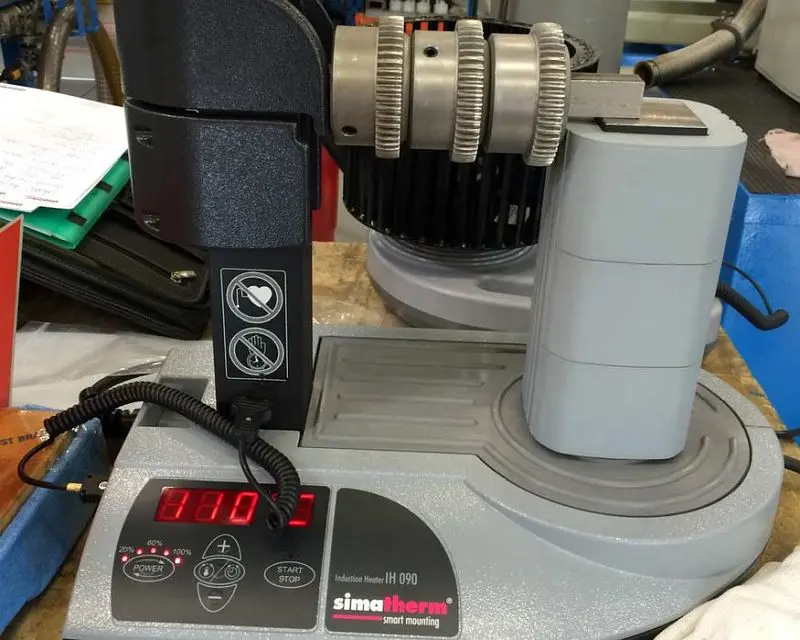

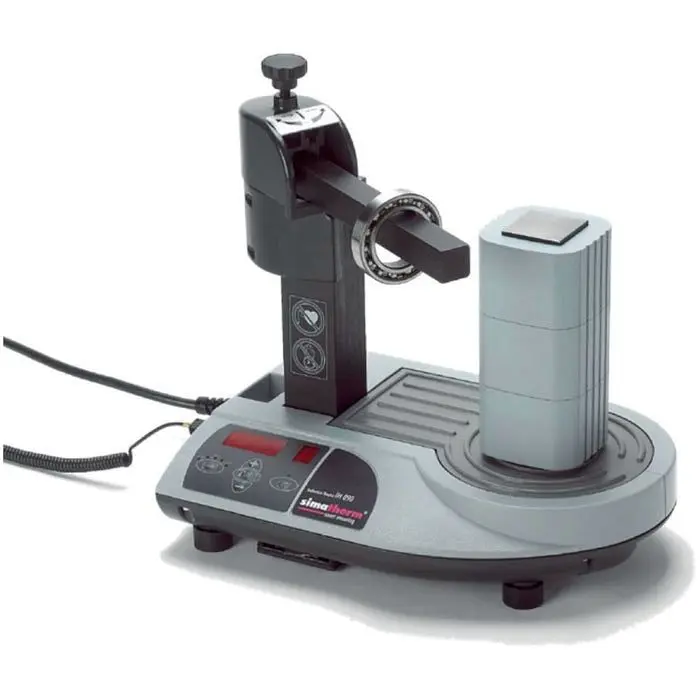

The Simatec Simatherm IH 090 Induction Bearing Heater is fantastic for heating up small – medium parts prior to instillation. With a Simatherm induction heater, rolling bearings and other ring-shaped metal parts can be heated easily and efficiently. They replace conventional heating methods such as heating plates, hot oil baths, open flames, and ovens, and offer a quick, clean installation of your part. With Induction heating, only the part is heated while the device itself remains cool. An changenating electro-magnetic field induces a high current directly in the workpiece and raises it to the required installation temperature in a controlled manner.
