Simatec Grooved Simatherm Bearing Heater & Hot Plate, Small, HPS 200

Simatec Simatherm Bearing Heater & Hot Plate, Small, HPS 200

Attributes:

• Part Number: 110.1806
• Ships directly from the Simatec USA warehoutilize so you can be confident that you’re getting the newest model!
• Swiss Made
• Great for: Bearings, gearwheels, Sprockets, compression rings, Labyrinth rings, Sleeves, & Joints.
• For parts weighing up to 5 kg

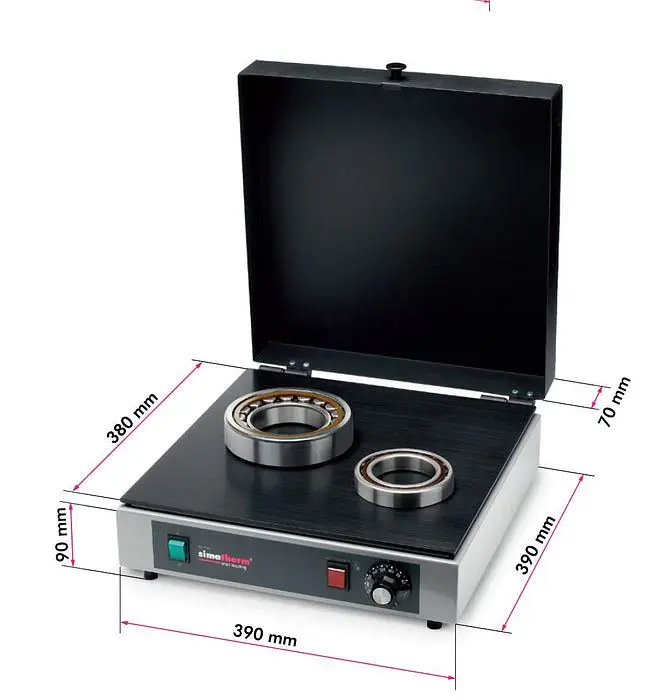

• Plate surface (W x D): 380 x 180 mm
• Obtainable for voltages of 100–115 and 230 V
• Regulation range from 50 to 200 °C
• Frequency: 50 – 60Hz
• Max Amperage: 5A – 10A
• Power: 1000w
• Accuracy: ± 5 °C
• Overall weight: 6 kg

The Simatec Simatherm HPS 200 Bearing Heater & Hot Plate is great for heating multiple small components all at once. With Simatherm induction heaters, rolling bearings and other ring-shaped metal parts can be heated efficiently. They replace conventional heating methods such as heating plates, hot oil baths, open flames and ovens and offer a quick, clean installation of your part. With Induction heating, only the part is heated while the device itself remains cool. An changenating electro-magnetic field induces a high current directly in the workpiece and raises it to the required installation temperature in a controlled manner.
