Simatec All-Purpose Simatherm Volcano Induction Bearing Heater, IH 025

Simatec Simatherm Volcano Induction Bearing Heater, IH 025

Attributes:

• Part Number: 110.1103
• Ships directly from the Simatec USA warehoutilize so you can be confident that you’re getting the newest model!
• Swiss Made
• Great for: Bearings, gearwheels, Sprockets, compression rings, Labyrinth rings, Sleeves, & Joints.
• For rolling bearings weighing up to 10 kg
• Bore diameter: From 20mm inner to 160mm outer.
• Dimensions: 340mm x 250mm x 364mm (121mm over the cone)
• Obtainable for voltages of 100, 115 and 230 V
• Temperature range from 20 to 180 °C
• Maximum temperature: 180 °C
• Variable Power Level: 5 levels: 20%, 40%, 60%, 80%, 100%.
• Magnetic Probe Incorporated: Yes
• Frequency: 50 – 60Hz
• Max Amperage: 6A, 10.5A
• Power: 1.5kVA. 1.15kVA, 1.0kVA.
• Accuracy: ± 3 °C
• Overall weight: 3.5 kg
• Cooling Fan: Yes

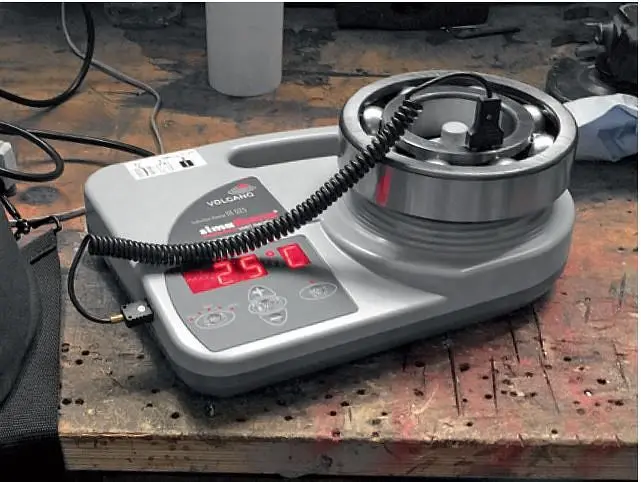

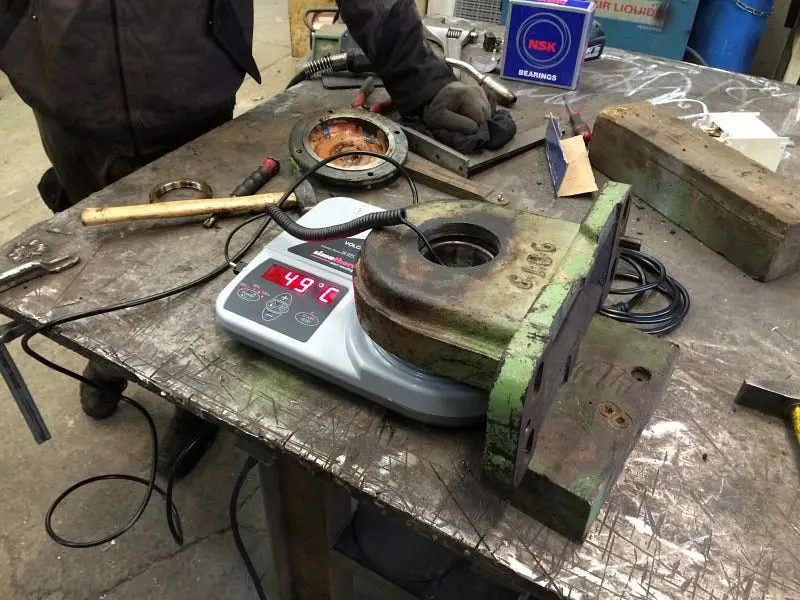

The Simatec Simatherm Volcano IH 025 Induction Bearing Heater is great for heating up small workpieces prior to instillation. With a Simatherm induction heater, rolling bearings and other ring-shaped metal parts can be heated easily and efficiently. They replace conventional heating methods such as heating plates, hot oil baths, open flames, and ovens, and offer a quick, clean installation of your part. With Induction heating, only the part is heated while the device itself remains cool. An changenating electro-magnetic field induces a high current directly in the workpiece and raises it to the required installation temperature in a controlled manner.
