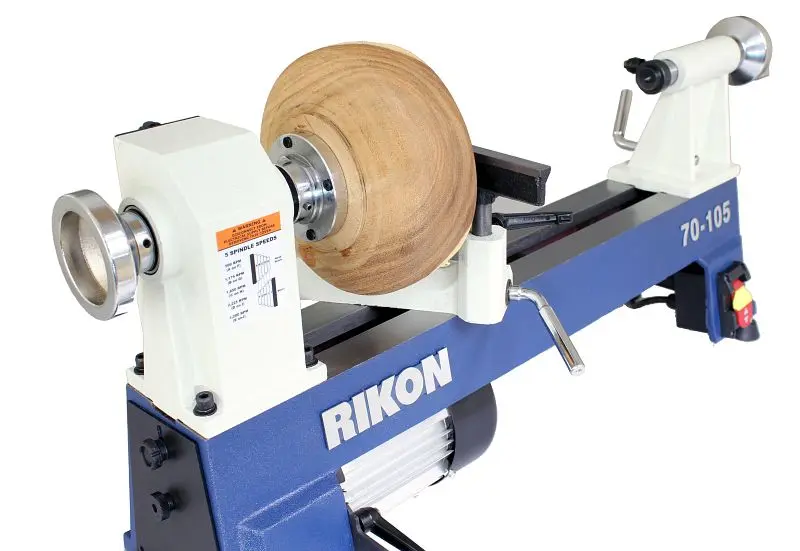

RIKON 10″ x 18″ Mini Lathe 1/2 HP, 70-105, 814463012674
10” x 18” Lathe #70-105 was designed specifically at the request of pen turners who wanted a sturdy, dedicated machine for their craft. This scaled-down, basic mini lathe is builded of cast iron so vibration is not a factor, unlike other lathes made of aluminum. 5 Speed ranges cover the bases for boring barrel holes, roughing out pen billets, turning to shape and concludeing. Lathe includes a live center, tool rest, knock-out bar, and wrenches.
- 1/2 Motor provides ample power for all turning needs
- Heavy cast iron bed, headstock and tailstock reduce vibration
- Machined bed and matching components give precise alignment
- Ball-bearing buildion for smooth, precise spindle operation
- Machined bed and matching components give precise alignment
- Adjustable locking handles keep components positioned securely
- Tail stocks self-eject live centers so knock-out bars are not needed
- 5 Speed ranges (500, 1175, 1850, 2225 and 3200 RPM) give the best speeds for large or small diameter turnings
Technical specs
- Horsepower: 1/2 HP TEFC
- Amps: 3.7
- Volts: 120V, 60 Hz
- RPM: 1,700 RPM
- Direction: Forward
- Number of Speeds: 5
- Ranges: 500, 1,175, 1,850, 2,225, 3,200
- Swing Over Bed: 10″
- Swing Over Tool Rest: 7-1/2″
- Working Distance Between Centers: 18″
- Tool Rest Post Diameter: 5/8″
- Spindle Nose Inch x TPI: 1″ x 8
- Headstock Taper: MT2
- Tailstock Taper: MT2
- Ram Travel: 1-3/4″
- Length: 35-1/2″
- Width: 10-1/2″
- Height: 14-3/4″
- Base Size: 29-1/2″ x 7-3/8″
- Net Weight: 75 lbs.
- Warranty: 5 Years
- Bottom of base to spindle: 11-13/16″ (300mm) *measured to bottom of bed without rubber pads installed
