RIKON Tool-Free 4" x 36" Belt 8" Disc Sander, 50-114

RIKON 4″ x 36″ Belt 8″ Disc Sander, 50-114, 814463014838

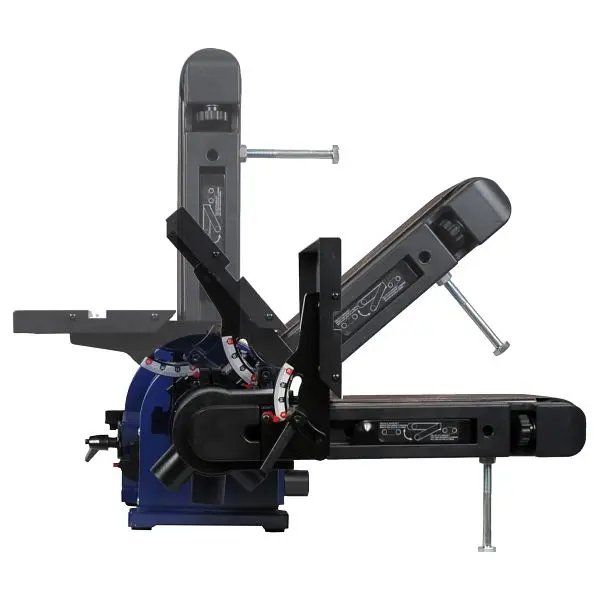

4” x 36” Belt / 8” Disc Sander #50-114 is a powerful sanding machine that features a direct drive power system driving both the disc and belt. The speeds eat through wood effortlessly, while still giving the utilizer fine control of shaping and concludeing projects. Belt frame adjusts in any position from horizontal to vertical to meet your sanding needs. Both the Disc and Belts’ back fences tilts 0-45 degress for angled work. Machine features precision die-cast metal base, quick release belt lever, and large 8″ diameter sanding disc, and includes 2 tilting tables for sanding fine, detail and angled work.

• 3/4HP, 5amp, 3450 RPM induction motor with direct drive power transfer gives fast, powerful sanding results on the disc or belt. Sanding Disc’s speed is 3450 RPM, and the Belt’s speed is 2165 SFPM.
• Frame is made of sturdy die-cast metal precision fitting of parts and rigidity during utilize.

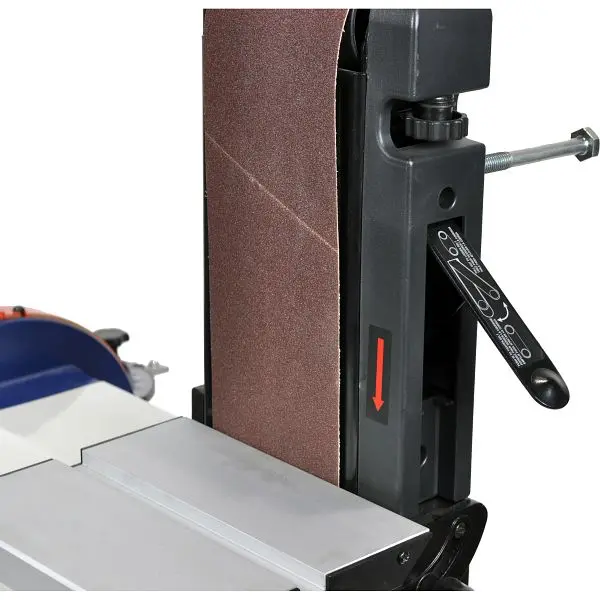

• Monitoring knobs allow correct positioning of belts on frames

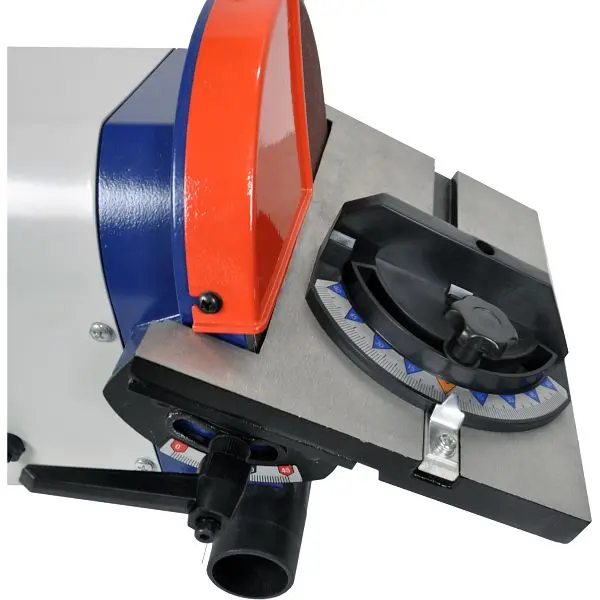

• Work tables adjust 0° to 45° with large locking lever handles for sanding angles
• PSA Discs apply rapidly to their metal discs for instant utilize.

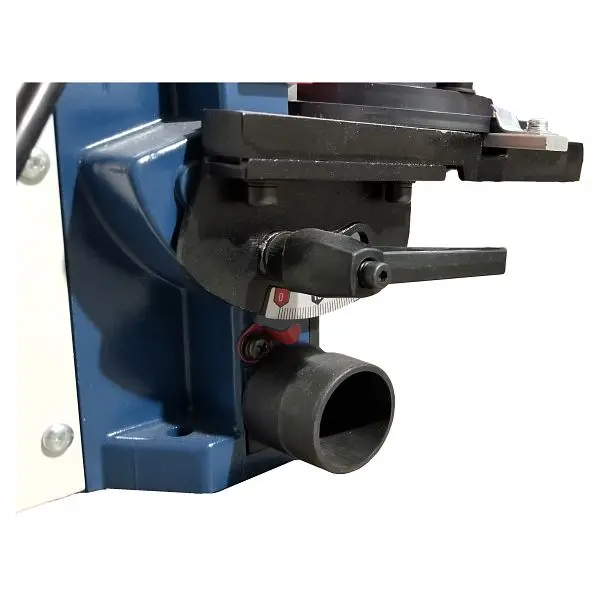

• Dual Dust Hoods and ports for efficient dust removal with attached dust collectors. Special 4″ Dut Fitting and 2 Hose Accessory Set #52-114, Sold Separately, connect both machine dust ports at once!
• On/Off switch has removable safety tabs for extra security
• Incorporates miter gauge

Technical specs

• Horsepower: 3/4 HP
• Amps: 5
• Volts: 120V, 60Hz
• Disc Table Size: 10-3/8″ x 5-7/8″
• Tables Tilt: 0° to 45°
• Miter Gauge: Included
• Miter Gauge Slot (16 x 6.5mm): 5/8″ x 5/16″
• Belt Table Size: 7-1/2″ x 6-1/4″
• Size: 4″ x 36″
• Speed: 2,165 SFPM
• Tilt: 0° – 90°
• Diameter: 8″ PSA
• Speed: 3,450 RPM
• Height: 20″
• Width: 25-1/4″
• Depth: 14″
• Base Size: 10-7/8″ x 8-5/8″
• Dust Ports: 2@1-1/2″ O.D.
• Net Weight: 32.4 lbs.
• Warranty: 5 Years
