RIKON 18″ Bandsaw 2.0 HP Motor, 10-342, 814463012810

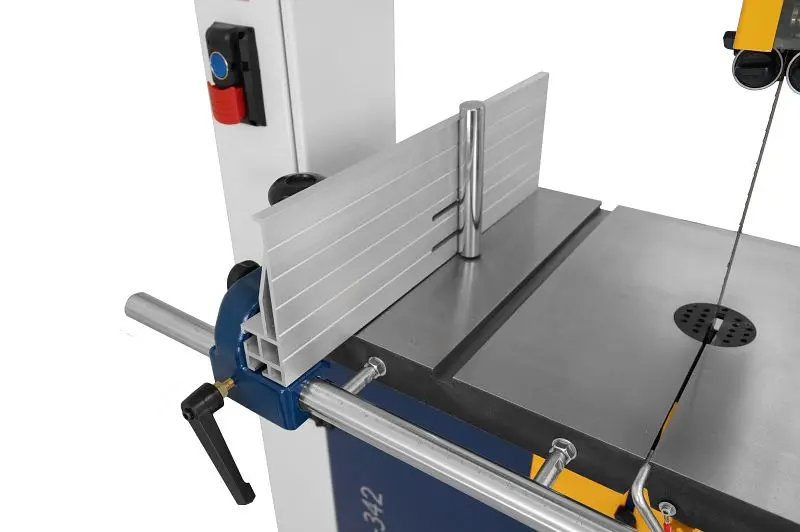

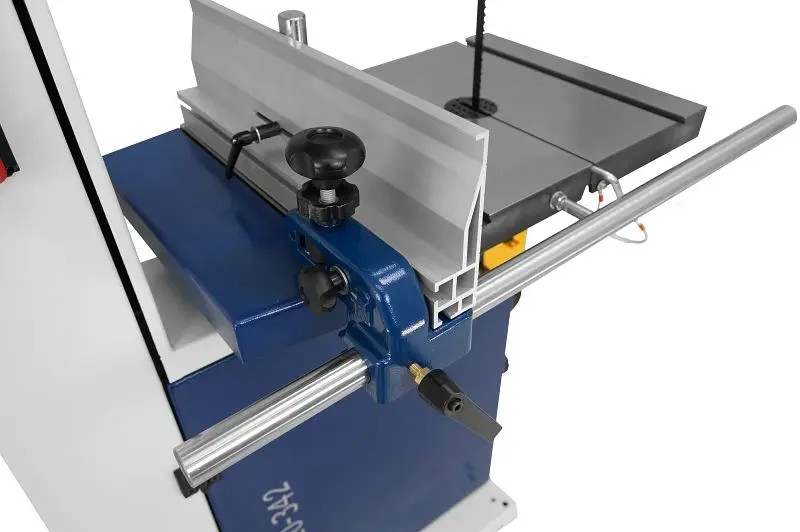

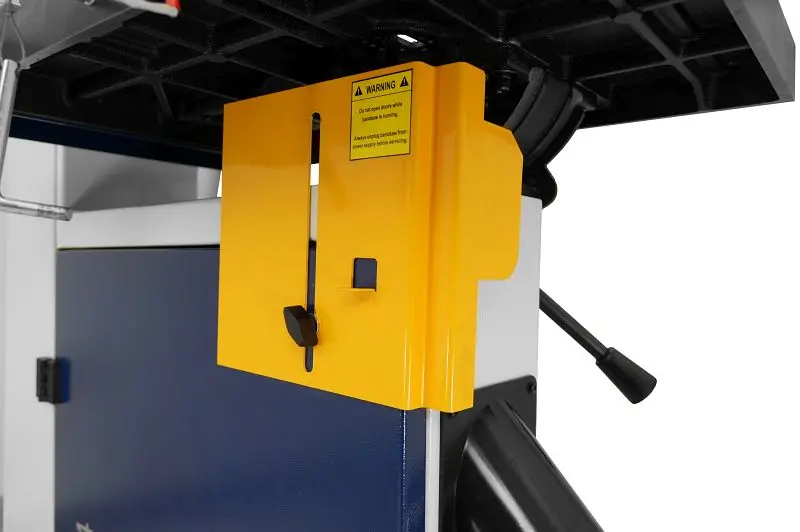

18” Bandsaw #10-342 is RIKON’s newest model with many Patent Pending features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window. 2HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade back during difficult cuts. Incorporates 6″ tall rip fence with re-saw bar.
- Rugged welded steel column and frame
- Stabilized cast iron drive wheels
- Resaw Capacity 13″
- Precision Guide Bearings
- Machined cast iron table with miter gauge ‘T’ slots
- Quick-release blade tension system
- Rack and Pinion upper guide adjustments
- Reliable 2 HP 60Hz motor
Technical specs
- Horsepower: 2 HP TEFC
- Amps: 7.5
- Volts: 220V, 60Hz, 1Ph
- Blade Speed: 3,280 FT/MIN
- Height: 13″
- Width: 17-1/2″
- Width: 1/4″ – 1-3/8″
- Length: 153″
- Size: 21-1/2″ x 15-3/4″
- Left Side Extension: 4-3/8″ x 15-3/4″
- Left Tilt: -10°
- Right Tilt: 45°
- Miter Gauge”T” Slot: (2) 3/4″ x 3/8″
- Height to Floor: 35-1/2″
- Fence Size: 20-7/8″ x 1-7/8″ x 6″
- Height: 72-7/8″
- Width: 38-1/2″
- Depth: 28-1/8″
- Base Size: 29-5/16″ x 18-1/8″
- Dust Port: 2@4″
- Net Weight: 324 lbs.
- Warranty: 5 Years
