RIKON 1 HP Travel-friendly Dust Gatheror, 60-105, 814463012964

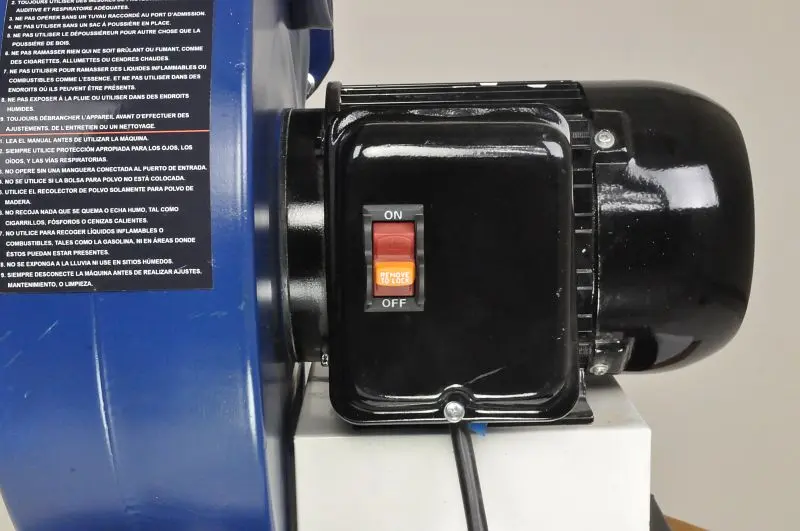

1 HP Travel-friendly Dust Gatheror #60-105 is a great size and adaptable for many utilizes that a small shop encounters. Single 4” dust port draws 660 CFM, more than enough vacuum power for big chip creaters, like jointers and planers. Constructed-in casters and handle create moving it about simple. Attributes an adjustable pipe extension with chip collecting funnel that can be positioned high for utilize with lathes, drill presses, workbenches etc. Incorporates 2 micron cloth filter bag, 108″ long x 4″ dust hose, adjustable pipe & funnel attachmentsystem, safety on/off switch, and wall mounting brackets.
- 1 HP Develops 660 CFM
- 4″ Dust Port inlet for attaching to a single machine
- Incorporates casters for simple mobility around the shop
- Incorporates adjustable pipe & funnel system for dust collection utilize with lathes, drill presses, workbenches, etc. Can be positioned up to 55″ high.
- Incorporates 2-micron cloth filter bag.
- Incorporates wall mounting bracket and hardware for hanging the dust collector for permanent positioning next to a machine, or for storage.
Technical specs
- Horsepower: 1 HP TEFC
- Amps: 7.5/3.75
- Volts: 115/230V, 60 Hz
- Speed (No Load): 3,400 RPM
- Air Flow @ 4″ Diameter: 660 CFM
- Blower Impeller: 9″ Diameter, Steel
- Cloth Bag Filtration: 2 Microns
- Bag Diameter: 16″
- Bag Length: 22″
- Bag Capacity: 2.4 Cubic Feet
- Dust Ports/Hose Connections: 1@4″
- Intake Funnel Size: 9″ x 4-3/4″
- Maximum Funnel Height: 55″
- Dust Hose Size: 9″ Long x 4″ Diameter
- Sound Rating @ 3 feet: <78dB
- Height: 19″
- Width: 14-1/2″
- Depth: 18″
- Base Size: 13-5/8″ x 11-5/8″
- Net Weight: 48 lbs.
- Warranty: 5 Years
