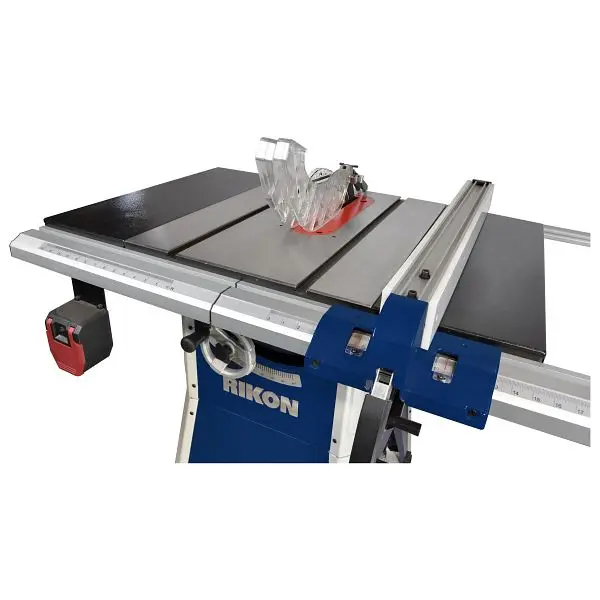

RIKON 10″ Contractors Saw, 10-205, 814463010533
10” Left Tilt Contractor Table Saw #10-205 is a no nonsense machine whose simplicity is the strength behind its popularity with home craftspeople and professional workshops. Operating this table saw is straight forward – blade controls are large and simple to access, box-type rip fence sets accurately, dual table ‘T’ slots give great choices for utilize of miter gauges and other jigs, blade alters are simple, blade guards and control switch with large ‘off’ paddle add excellent safety measures to the utilizer, and the built-in mobile base allows moving the saw around the shop simple. Wired for utilize with 3-wire 120V receptacles.
- Powerful 1-3/4 HP, 1Ph, 120/240V, 3450 RPM motor
- Industrial quality, multi-ribbed flat J-belt for smooth power transfer
- Precision machined cast iron table top and steel wings
- Dual table ‘T’ slots for utilize with miter gauges and jigs
- Magnetic table insert removes without tools
- Clear blade guard with riving knife/splitter for extra utilizer safety

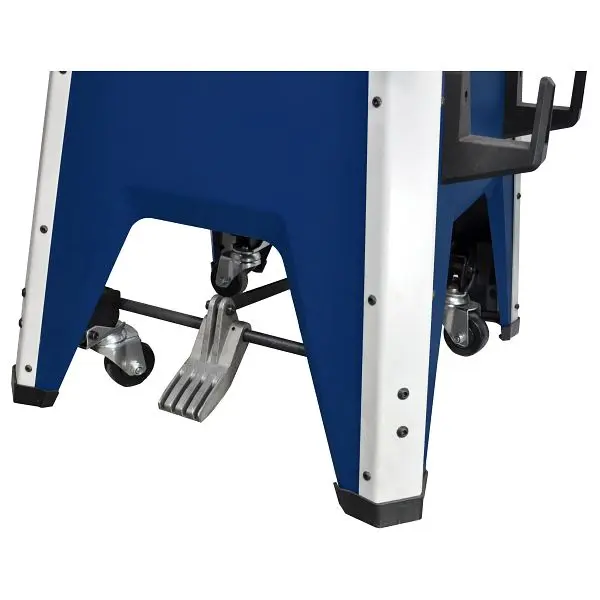

- Constructed-in mobile base activates with easy foot pressure
Technical specs
- Horsepower: 1-3/4 HP
- Amps: 15/7.5
- Volts: 120/240V, 60 Hz
- RPM: 3,450
- Diameter: 10″
- Teeth: 40 ATB, Carbide
- Arbor: 5/8″
- Speed: 3,450
- Tilt: Left
- Maximum Depth of Cut at 90°: 3-1/8″
- Maximum Depth of Cut at 45°: 2-3/16″
- Maximum Width of Dado: 3/4″
- Maximum Rip to the Right of Blade: 29-1/2″
- Maximum Rip to the Left of Blade: 14-1/2″
- Table in Front of Blade: 11-3/8″
- Size: 27″ x 40″
- Miter Gauge”T” Slot (2): 3/4″ x 3/8″
- Height from Floor: 31-3/8″
- Table Size without Wings: 20-1/8″ x 27″
- Left Wing Dimension: 9-7/8″ x 27″
- Right Wing Dimension: 9-7/8″ x 27″
- Height: 45.5″
- Width: 52″
- Depth: 39″
- Dust Port: 1@4″
- Net Weight: 260 lbs.
- Warranty: 5 Years
