RIKON Instant 12" x 16" VSR Midi Lathe, 70-150VSR

RIKON 12″ x 16″ VSR Midi Lathe, 70-150VSR, 814463015224

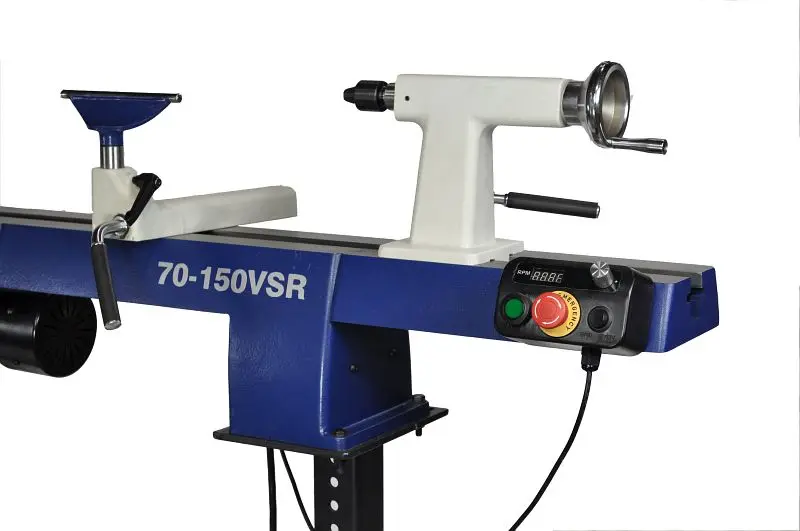

12” x 16.5” Variable Speed Midi Lathe #70-150VSR is has been designed to offer features seen on larger industrial lathes. An ideal lathe for novice to professional turners. Crafted with a powerful 1HP DC motor, electronic variable speed controls, a wide range of operating speeds, digital RPM readout, ample diameter and spindle length turning capacities in forward and reverse drives. Corded control box has a magnetic support that allows it to be moved along the front of thecast iron lathe bed, and positioned where you want it for easiest access when turning. Left, outboard end of the lathe bed is milled to take a special 13-1/2″ bed extension (#70-903 sold separately) to allow outboard turning of diameters up to 15″ . Lathe includes spur center, live center, 3” faceplate, 6″ tool rest with 1″ diameter post, knock-out bar, wrenches and tool holder.

• Powerful 1HP DC Motor provides ample power for all turning needs

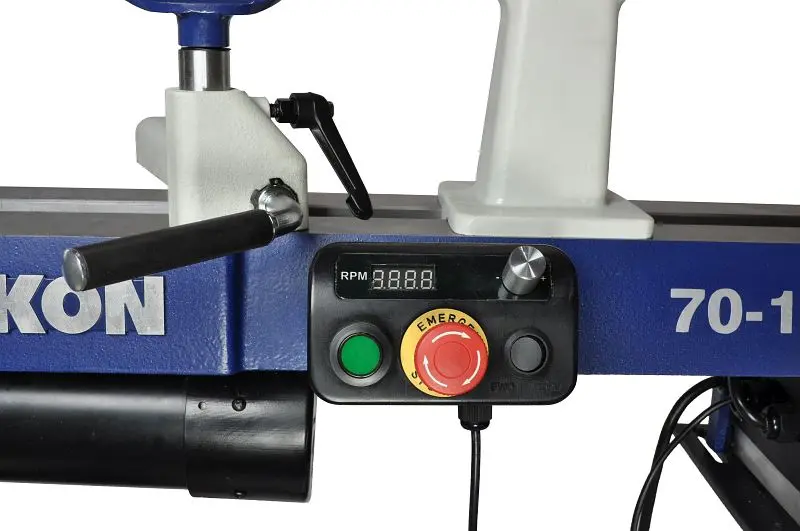

• Electronic variable speed controls, wider range of operating speeds, digital RPM readout for forward and reverse rotation speeds. Magnets on support of the control box allow it to be placed anywhere easily accessible to turners for quick controlling of the lathe speeds or emergency stopping.
• Pivoting belt cover for simple access when changing belt speeds
• Ball-bearing buildion for smooth, precise spindle operation
• Machined bed and matching components give precise alignment
• Adjustable locking handles keep components positioned securely
• 1” diameter tool rest post
• Lathe bed has machined ends for adding extensions to boost spindle capacity

Technical specs

• Horsepower: 1 HP TEFC
• Amps: 6A. 60HZ
• Volts: 115V, 1 PH
• RPM: 3,200 RPM
• Direction: Forward (C-Clockwise) & Reverse (Clockwise)
• Number of Speeds: 3
• Ranges: 250-850 / 430-1,450 / 950-3,200 RPM
• Swing Over Bed: 12″ (305 mm)
• Swing Over Tool Rest: 9-1/4″ (235 mm)
• Working Distance Between Centers: 16-1/2″ (419 mm)
• Tool Rest Post Diameter: 1″ (25.4 mm)
• Spindle Nose Inch x TPI: 1″ x 8 TPI
• Headstock Taper: MT2
• Tailstock Taper: MT2
• Ram Travel: 3-1/2″ (90 mm)
• Indexing Positions: 24
• Length: 39″ (991 mm)
• Width: 13-3/8″ (340 mm)
• Height: 15-5/8″ (397 mm)
• Base Size: 31-13/16″ x 7-7/32″ (808 x 183.5 mm)
• Net Weight: 95 lbs (43 kg)
• Warranty: 5 Years
• Bottom of base to spindle: 13-1/2″ (343mm)
