RIKON Spindle Sander, 50-300, 814463012834
Oscillating Spindle Sander #50-300 is a specialized sander for the fast and accurate sanding of curved board edges. Abrasive sleeves mounted on the machine’s spindles oscillate up-and-down 15/16″, 29 time per minute while the spindle spins, providing more efficient abrasive cutting action. Powerful 1/2 HP motor, all steel gearing, ample cast iron tilting table, metal housing and 5 spindle diameters (1/2″ – 2″) with 6 table inserts create this a valuable machine for every shop. 4-1/2″ long abrasives. Weighs 76 lbs!
- 1/2 HP motor with all steel gearing provides excellent power for sandling
- Machined, cast iron table measures a big 14-3/4″ x 14-3/4″ and tilts from 0° to 45° for sanding angled surfaces
- Incorporates 5 spindle diameters – 1/2″, 3/4″, 1″, 1-1/2″ and 2″. Each is 4-1/2″ long.
- Spindles oscillate up-and-down 15/16″, 29 times per minute for efficient abrasive cutting action.
- Optional 3″ diameter spindle is available for sanding big arcs or circles in projects.

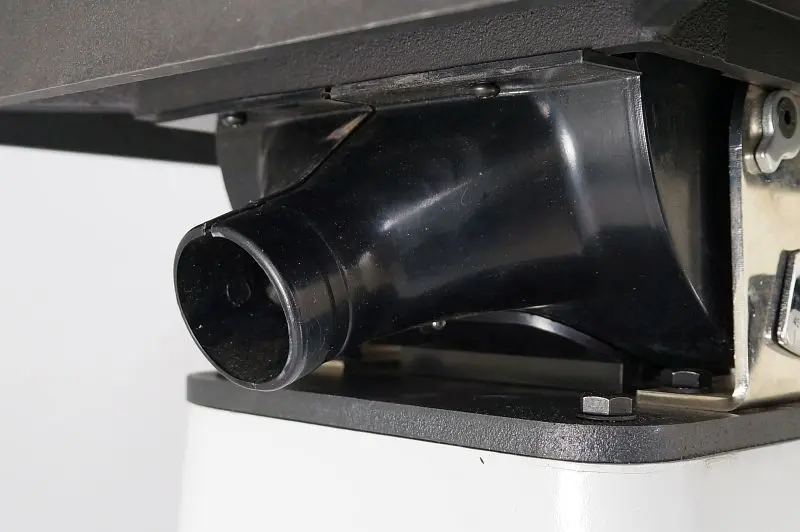

- Incorporates a standard 50mm (1-3/4″ I.D. or 2″ O.D.) dust port for utilize with dust collectors.
- Machine measures only 19″ from its base to the table, making it perfect for benchtop utilize.
- Incorporates 6 table inserts to match the spindle diameters utilized.
Technical specs
- Horsepower: 1/2 HP
- Amps: 3.4
- Volts: 110V, 60 Hz
- Speed (No Load): 1,700 RPM
- Table Size: 14-3/4″ x 14-3/4″
- Table Tilt: 0° to 45° Forward
- Spindle Length: 4-1/2″
- Spindle diameter Included(5): 1/2″, 3/4″, 1″, 1-1/2″, 2″
- Max. Spindle diameter Allowed: 3″(Available Separately)
- Spindle Oscillation: 15/16″
- Oscillations Per Minute: 29
- Dust Outlet: 2″ O.D. or 1-3/4″ I.D.
- Sound Power Level: < 76 dB
- Height: 23-1/2″
- Width: 17-1/4″
- Depth: 14-3/4″
- Base Size: 11-13/16″ x 11″
- Net Weight: 76 lbs.
- Warranty: 5 Years
