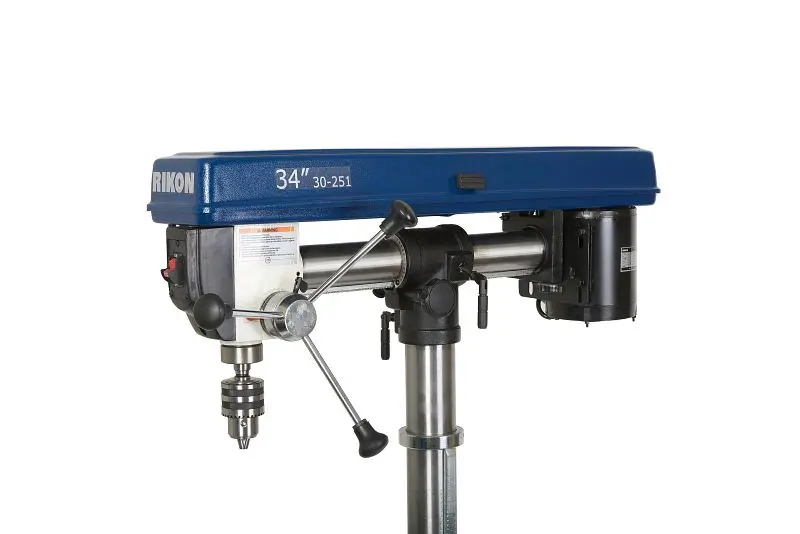

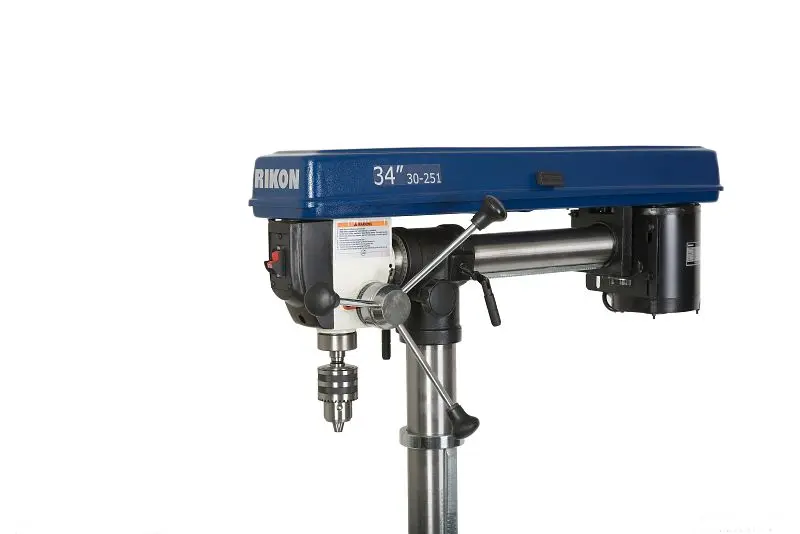

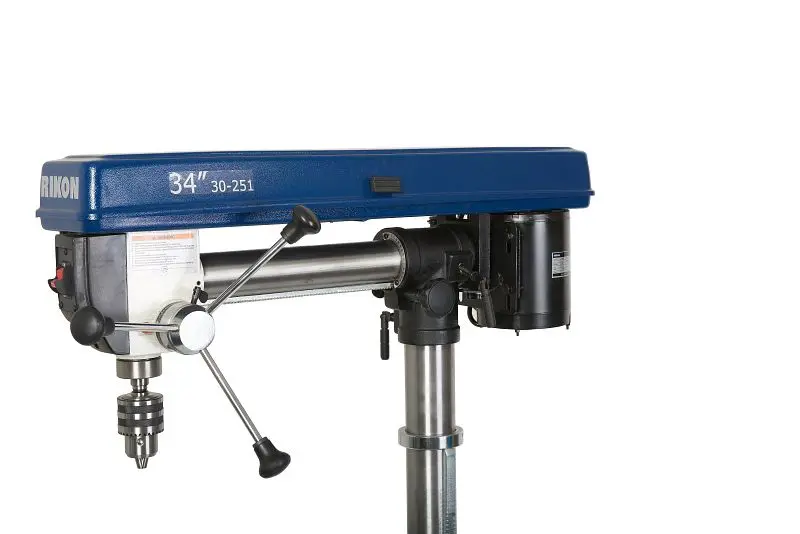

RIKON 34" Floor Model Radial Power Drill Press, 30-251

RIKON 34″ Floor Model Radial Drill Press, 30-251, 856489000504

34” Floor Radial Drill Press #30-251 has the identical great features as the bench model, but has larger components in proportion with the added height and capacities of this floor model – larger base, column, and table assemblies. The work table on this model is round shape, and will turn 360° as well as tilt 45° in left and right.

• 1/3HP induction motor provides plenty of power for drilling
• Head & motor assembly tilt left and right for special angle drilling
• Stepped pulleys give multiple spindle speed options
• Rack & pinion design creates adjustments of table and head assembly simple

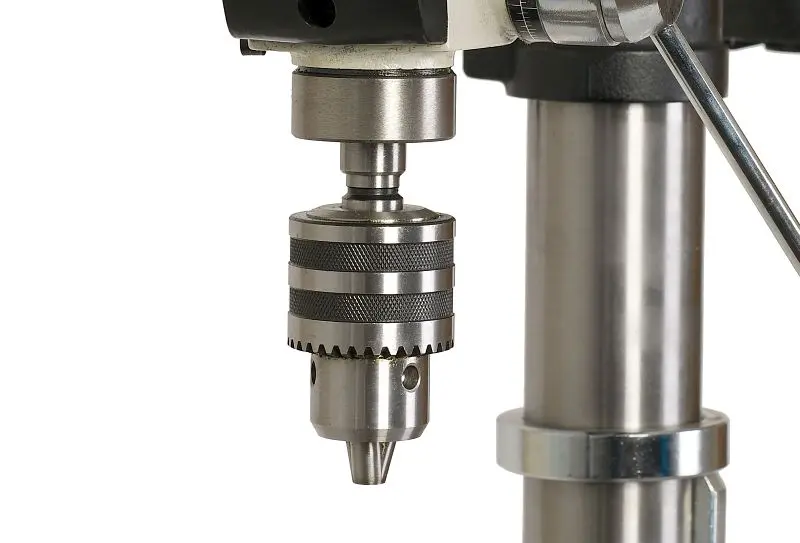

• Keyed chuck holds drill bits and accessories tight
• 3 Feed handles with comfortable knobs provide excellent control when drilling
• Heavy cast iron base have slots for attaching jigs or fixtures
• Table tilts and easily moves up or down along the column for best positioning

Technical specs

• Horsepower: 1/3 HP TEFC
• Amps: 5.5
• Volts: 120V, 60Hz
• RPM: 1,720
• Swing: 34″
• Chuck Size: 5/8″
• Chuck Taper: JT3
• Drilling Capacity: 5/8″
• Spindle Travel: 3-1/8″
• Spindle Taper: MT2
• Head Rotates: 360°
• Head Tilts: 45° Right, 90° Left
• Speeds: 5
• Speed Range (RPM): 620 – 3,100
• Quill Diameter: 2-3/16″
• Table Size: 11-3/16″ Round
• Table Tilts: 90°
• Table Rotates: 360°
• Maximum Chuck to Table: 28-3/8″
• Maximum Chuck to Base: 47-3/4″
• Column Diameter: 2-7/8″
• Height: 64″
• Base Size: 18″ x 10-1/2″
• Net Weight: 120 lbs.
• Warranty: 5 Years
