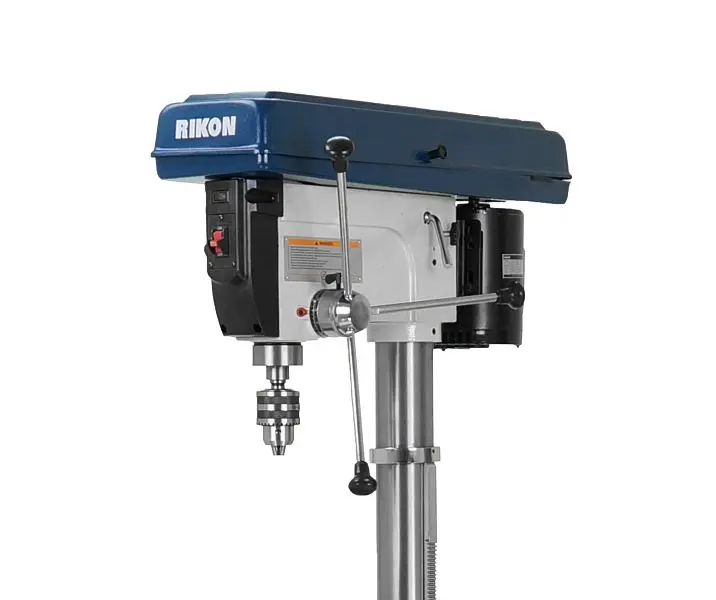

RIKON 20" Floor Model Drill Press, 30-240

RIKON 20″ Floor Model Drill Press, 30-240, 856489000518

20” Floor Drill Press #30-240 is the largest model, valued by production shops for its robust design, extra-large table, chuck, base and wide speed range. This machine gives serious, basic operation that will take the heavy workloads demanded of it.

• Powerful 1HP motor provides plenty of power for drilling

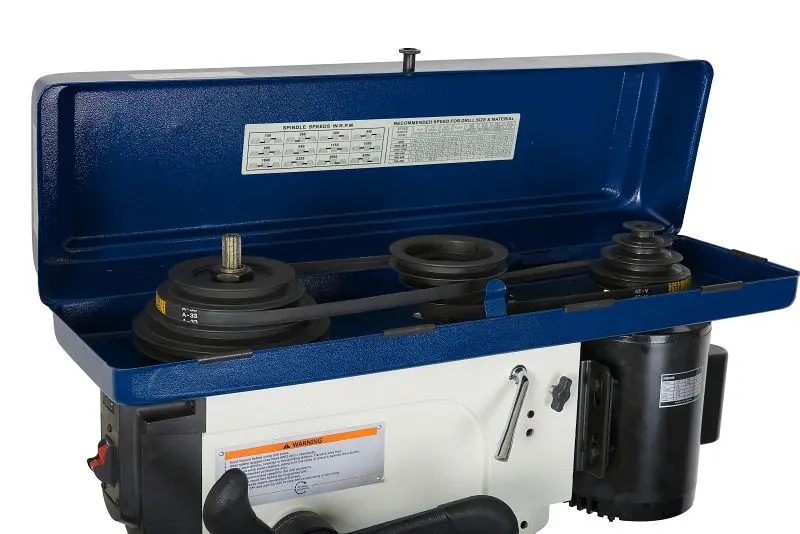

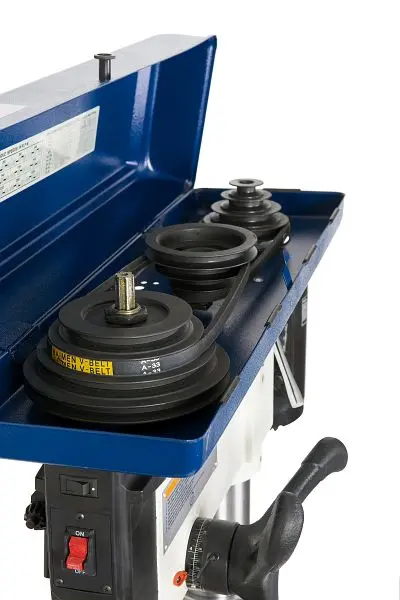

• Stepped pulleys give multiple spindle speed options
• Machined, cast iron table includes slots for attaching clamps, vises etc.
• Rack & pinion design creates adjustments of table and head assembly simple
• Keyed chuck holds drill bits and accessories tight
• 3 Feed handles with comfortable knobs provide excellent control when drilling

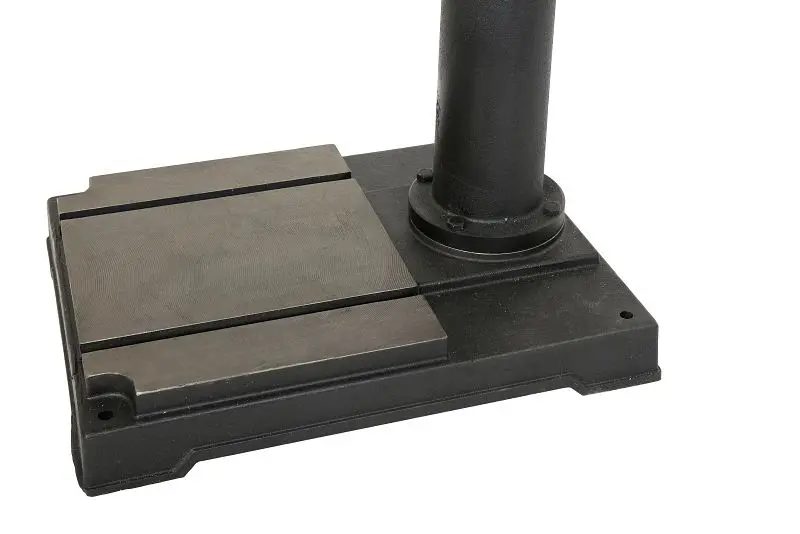

• Heavy cast iron base has slots for attaching jigs or fixtures
• Table tilts and easily moves up or down along the column for best positioning

Technical specs

• Horsepower: 1 HP TEFC
• Amps, Watts: 13.5, 900W
• Volts: 120V, 60Hz
• RPM: 1,720
• Swing: 20″
• Chuck Size: 3/4″
• Chuck Taper: JT3
• Drilling Capacity: 1″
• Spindle Travel: 4-3/4″
• Spindle Taper: MT3
• Head Rotates: 360°
• Speeds: 12
• Speed Range (RPM): 180 – 3,865
• Quill Diameter: 3″
• Table Size: 16-1/2″ x 18-3/4″
• Table Tilts: 90°
• Table Rotates: 360°
• Maximum Chuck to Table: 24-9/16″
• Maximum Chuck to Base: 43-13/16″
• Column Diameter: 3-5/8″ (92mm)
• Height: 68″
• Base Size: 22-3/4″ x 16-1/2″
• Net Weight: 250 lbs.
• Warranty: 5 Years
