RIKON 16" Scroll Cutting Tool with Lamp, 10-600VS

RIKON 16″ Scroll Saw with Lamp, 10-600VS, 814463010328

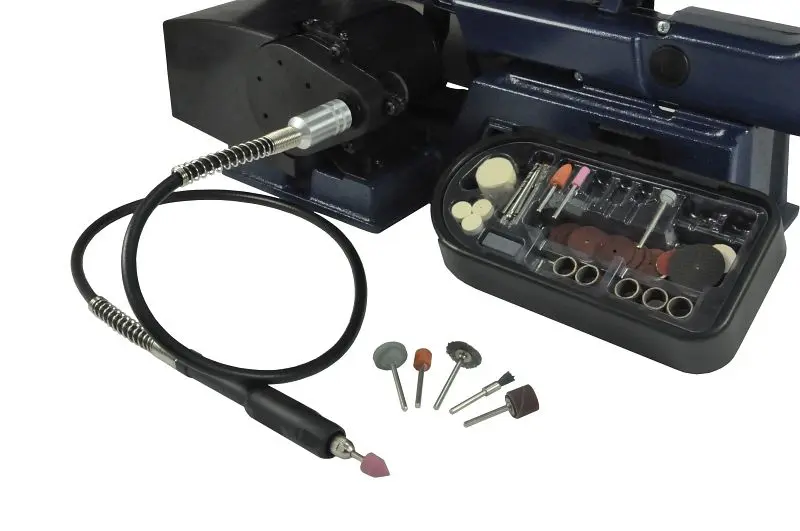

16” Variable Speed Scroll Saw #10-600VS is designed for making small, intricate curved cuts in thinner woods that are utilized in making decorative scroll work, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s 16” throat and large machined aluminum table give extra access and stability when sawing large stock. Table also tilts to -45° for making angled cuts. Machine utilizes 5” long pinned or plain end blades. Incorporates cast iron base for greater stability, work light, pair of pin-less blade holders. High-speed flex shaft (available separately) attaches to the motor shaft for rotary work.

• Table Tilts 0-45 degrees
• Accepts Both plain and pin head ends

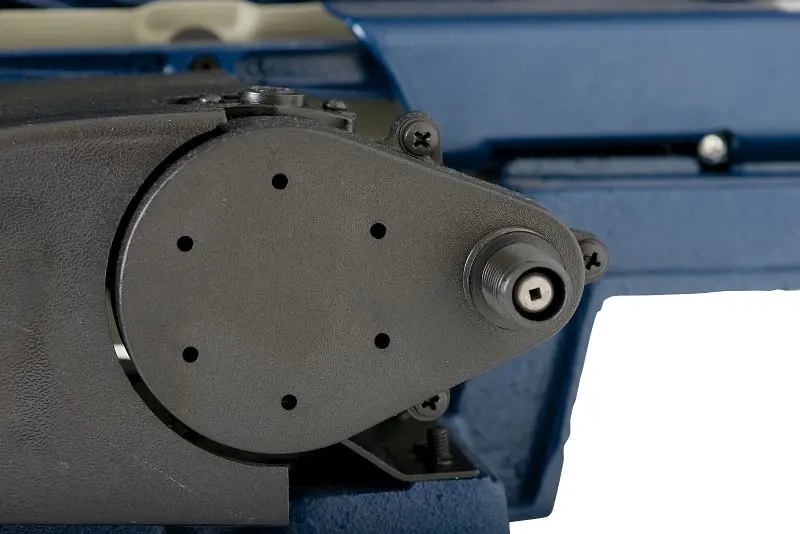

• Obtainable connection for Flex Shaft
• Electronic Speed Regulation
• 16″ deep throat
• Flexible work light with 120V – 10W bulb
• 35mm (1-3/8″) Dust Port
• Constructed-in blower automatically blows sawdust away from the cutting area

Technical specs

• Amps: 1.2
• Volts: 120V, 60 Hz
• Size: 10-1/16″ x 16-5/16″
• Left Tilt: 0° – 45°
• Blade Length: 5″
• Height: 2″
• Stroke: 3/4″
• Electronic Variable Speeds (SPM): 550-1,650
• Throat Depth: 15-3/4″
• Table in Front of Blade: 12-1/2″
• Stroke Speed Per Minute: 550 – 1,650
• Blade Supplied: 18TPI, Reg., Pin-less
• Dust Port Diameter: 1-3/8″
• LED Light: 120V/10W
• Maximum Sound Level (Idle): <76dB
• Height: 15″
• Width: 12-9/16″
• Depth: 24-7/8″
• Base Size: 9″ x 15-1/2″
• Net Weight: 26 lbs.
• Warranty: 5 Years
