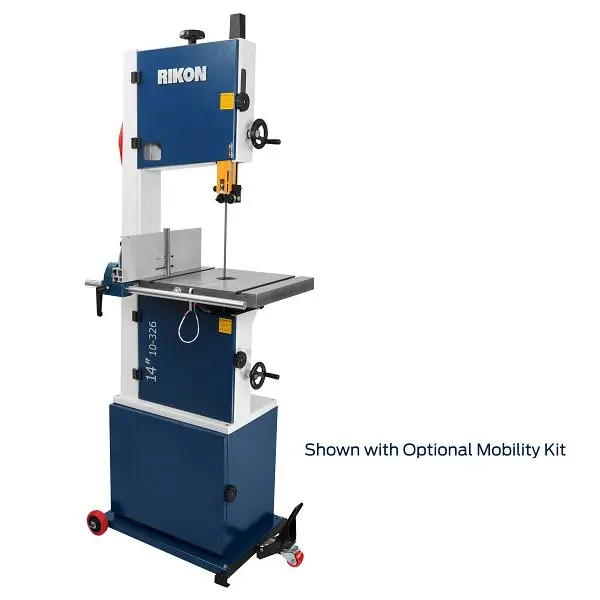

RIKON 14" Deluxe Bandsaw 1.75 HP with Tool Less Guides and Quick Adjust Drift Fence, 10-326

RIKON 14″ Deluxe Bandsaw 1.75 HP with Tool Less Guides and Quick Adjust Drift Fence, 10-326, 814463012803

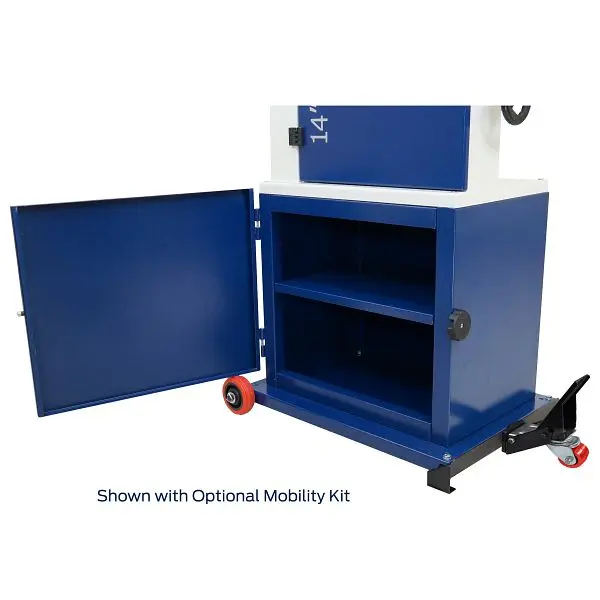

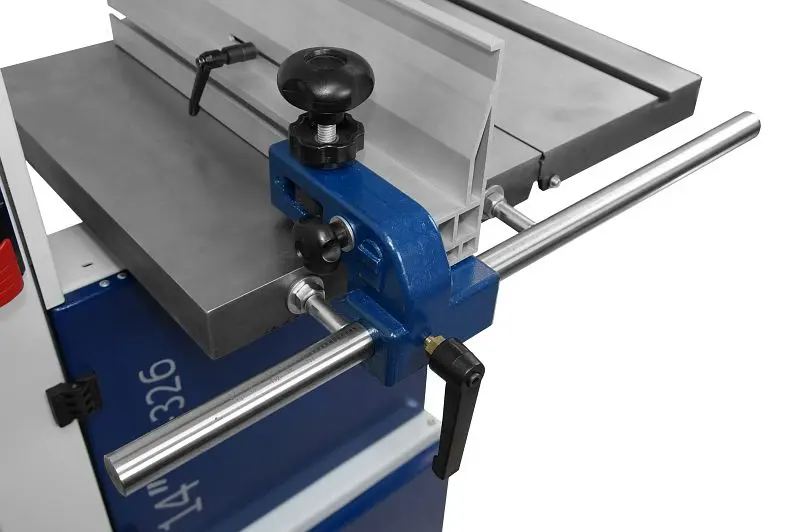

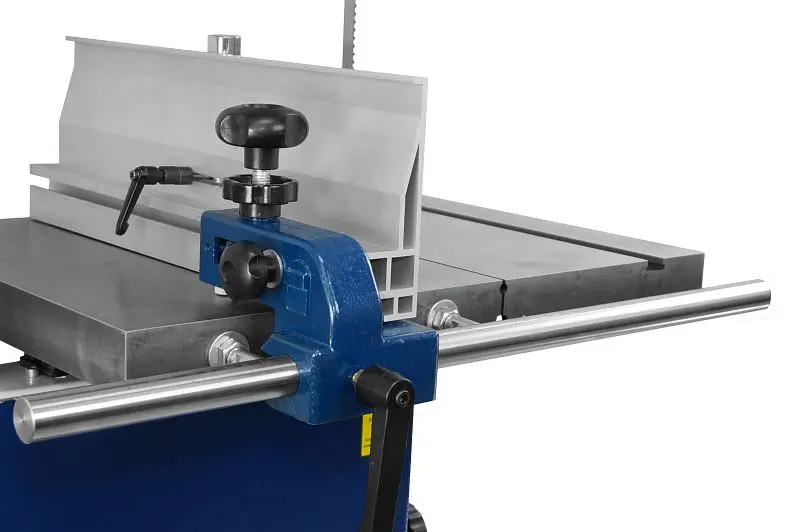

14” Deluxe Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade back during difficult cuts. Incorporates 6″ tall rip fence with re-saw bar. Wired for utilize with 3-wire 120V receptacles.

• Rugged welded steel column and frame
• Stabilized cast iron drive wheels
• Resaw Capacity 13″
• Dual blade speed ranges – 1445 / 2950 fpm
• Machined cast iron table with miter gauge ‘T’ slots
• Quick-release blade tension system
• Rack and Pinion upper guide adjustments
• Reliable 1.75HP 60Hz motor

Technical specs

• Horsepower: 1-3/4 HP TEFC
• Amps: 14/7
• Volts: 115/230V, 60Hz, 1Ph
• Blade Speed: 1,445/2,950 FT/MIN
• Height: 13″
• Width: 13-5/8″
• Width: 3/16″ – 3/4″
• Length: 111″
• Size: 21-1/2″ x 15-3/4″
• Left Tilt: -7°
• Right Tilt: 45°
• Miter Gauge”T” Slot: (2) 3/4″ x 3/8″
• Height to Floor: 40-1/2″
• Height to Base: 20-7/8″
• Fence Size: 18-3/4″ x 1-3/4″ x 6″
• Height: 74-1/2″
• Width: 33-3/4″
• Depth: 25″
• Base Size: 24″ x 17-5/8″
• Dust Port: 1@4″
• Net Weight: 285 lbs.
• Warranty: 5 Years
