RIKON 14" Bandsaw 1.50 HP Motor with Tool-Less Guides, 10-324TG

RIKON 14″ Bandsaw 1.50 HP Motor with Tool-Less Guides, 10-324TG, 814463014517

14” Bandsaw #10-324TG is RIKON’s most popular model due to its many professional features – including tool-less blade guides, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and base stand with storage shelf. Its dual voltage, 1-1/2HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade back during difficult cuts. Incorporates 6″ tall rip fence with re-saw bar. Wired for utilize with 3-wire 120V receptacles.

• Rugged welded steel column and frame
• Stabilized cast aluminum drive wheels
• Resaw Capacity 13″
• Dual blade speed ranges – 1445 / 2950 fpm
• Machined cast iron table with miter gauge ‘T’ slots
• Quick-release blade tension system

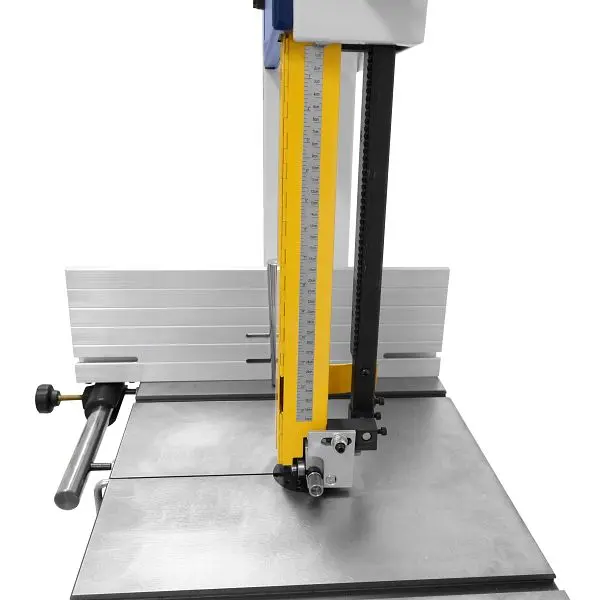

• Rack and Pinion upper guide adjustments
• Reliable 1.50HP 60Hz motor

Technical specs

• Horsepower: 1-1/2 HP TEFC
• Amps: 14/7
• Volts: 115/230V, 60Hz
• Height: 13″
• Width: 13-5/8″
• Width: 3/16″ – 3/4″
• Length: 111″
• Blade Speed: 1,445/2,950 FT/MIN
• Size: 21-1/2″ x 15-3/4″
• Left Tilt: -5°
• Right Tilt: 45°
• Miter Gauge”T” Slot: (2) 3/4″ x 3/8″
• Height to Floor: 39-1/2″
• Height: 74-1/2″
• Width: 30″
• Depth: 25″
• Base Size: 21-5/8″ x 14-3/4″
• Dust Port: 1@4″
• Net Weight: 219 lbs.
• Warranty: 5 Years
