RIKON 13" Benchtop Bench Drilling Tool Press, 30-120

RIKON 13″ Benchtop Bench Drill Press, 30-120, 856489000389

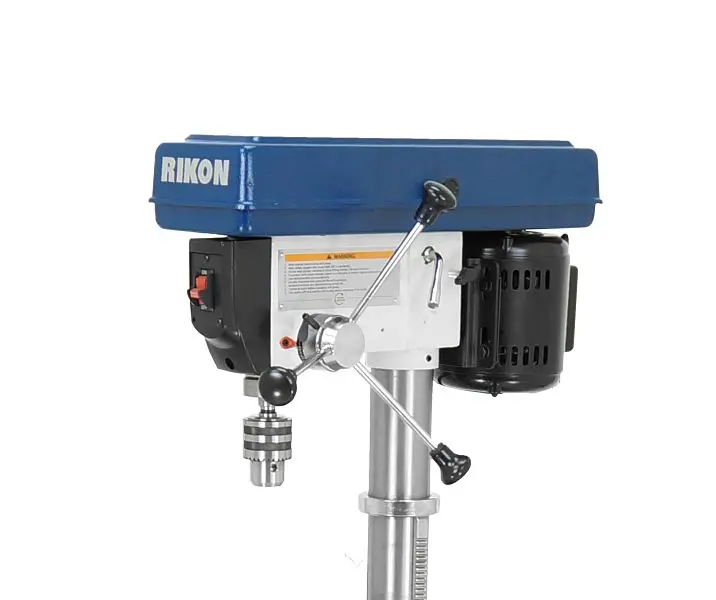

13” Benchtop Drill Press #30-120 is a larger model for a more serious woodworker, that requires a benchtop design. It features greater drilling capacity, more spindle speed settings, a larger keyed chuck for bigger diameter drills, and a round table that swivels as well as tilts.

• 1/2HP induction motor provides plenty of power for drilling

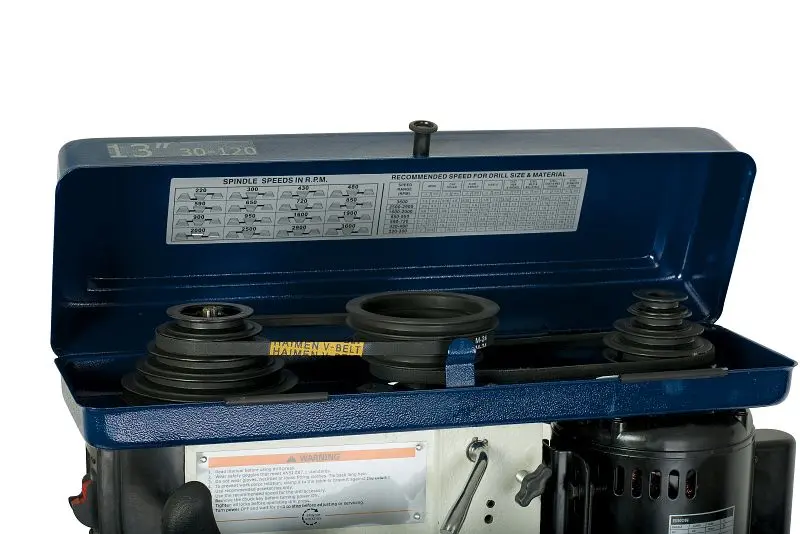

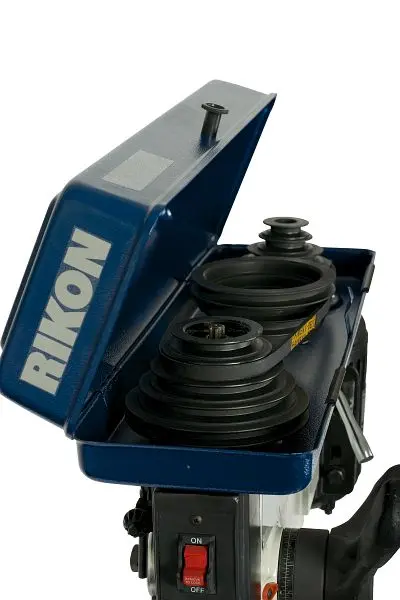

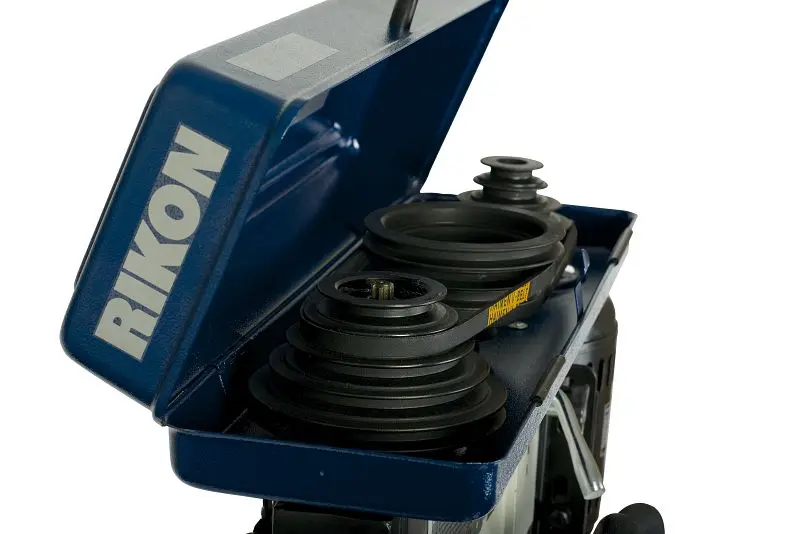

• Stepped pulleys give multiple spindle speed options
• Keyed chuck holds drill bits and accessories tight
• Adjustable depth stop is great for reiterateable drilling
• Cast iron head assembly for reliable service
• 3-Wing, cast iron feed handles provide excellent control when drilling
• Heavy cast iron base has slots for attaching jigs or fixtures
• Table tilts and easily moves up or down along the column for best positioning

Technical specs

• Horsepower: 1/2 HP
• Amps: 7.5
• Volts: 120V, 60Hz
• RPM: 1,720
• Swing: 13″
• Chuck Size: 5/8″
• Chuck Taper: JT3
• Drilling Capacity: 5/8″
• Spindle Travel: 3-1/8″
• Spindle Taper: MT2
• Speeds: 16
• Speed Range (RPM): 220 – 3,600
• Quill Diameter: 2-3/16″
• Table: 11-3/16″ (Round)
• Table Tilts: 90°
• Table Rotates: 360°
• Maximum Chuck to Table: 16-1/4″
• Maximum Chuck to Base: 24-5/8″
• Column Diameter: 2-7/8″
• Height: 42″
• Base Size: 17-3/4″ x 10-1/2″
• Net Weight: 102 lbs.
• Warranty: 5 Years
