RIKON 1 HP Wall Mount Dust Gatheror, 60-101

RIKON 1 HP Wall Mount Dust Gatheror, 60-101, 814463015316

Wall Mounted 1HP Dust Gatheror #60-101 provides great dust collection for your machines, while saving valuable floor space as it is wall mounted! TEFC motor with 10″ impeller advances 750 CFM of suction for drawing in dust and chips from bandsaws, jointers and planers. Machine has a single 5” dust port with a dual 4” dust intake ‘Y’ fitting for utilize with two operating machines at one time. All metal buildion. Incorporates wall mounting bracket, pleated canister filter, lower disposable plastic chip bag, quick-release band clamp, one 4” inlet cap, and safety on/off switch. Motor is 120/240V, and is wired for utilize with 3-wire 120V receptacles.

• 1 HP Develops 750 CFM

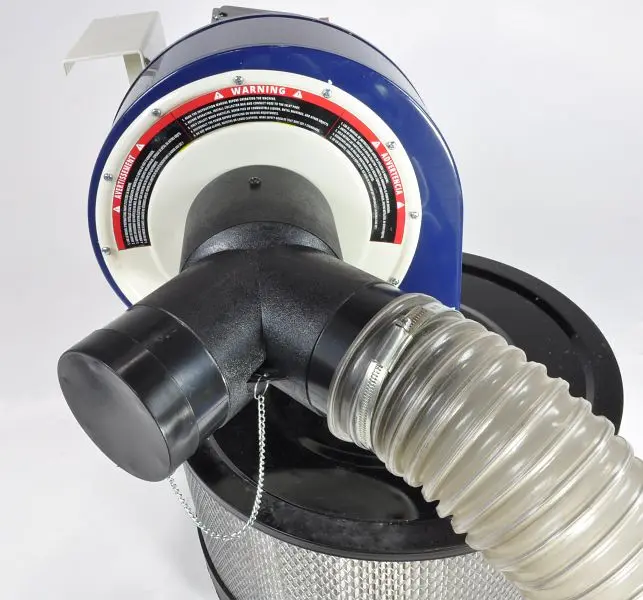

• Two 4″ Dust Port inlets for attaching to a single or multiple machine

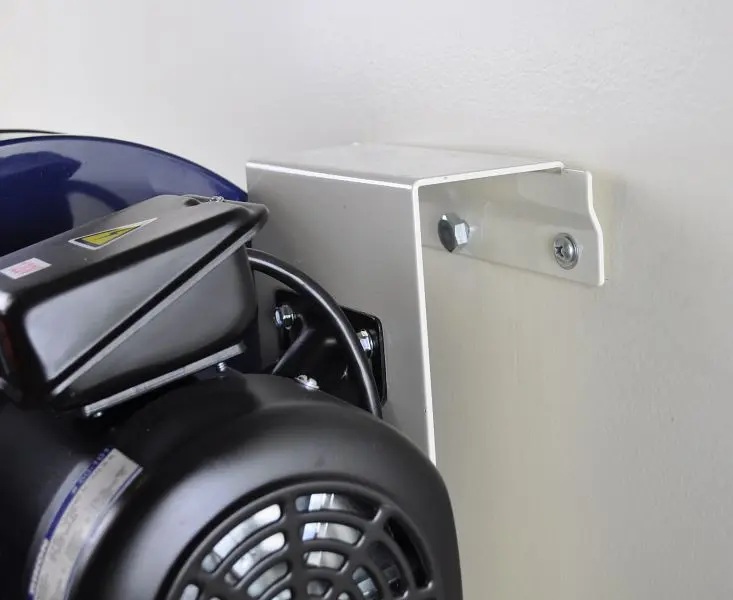

• Incorporates wall mounting bracket for space saving out-of-the-way postioning in the shop

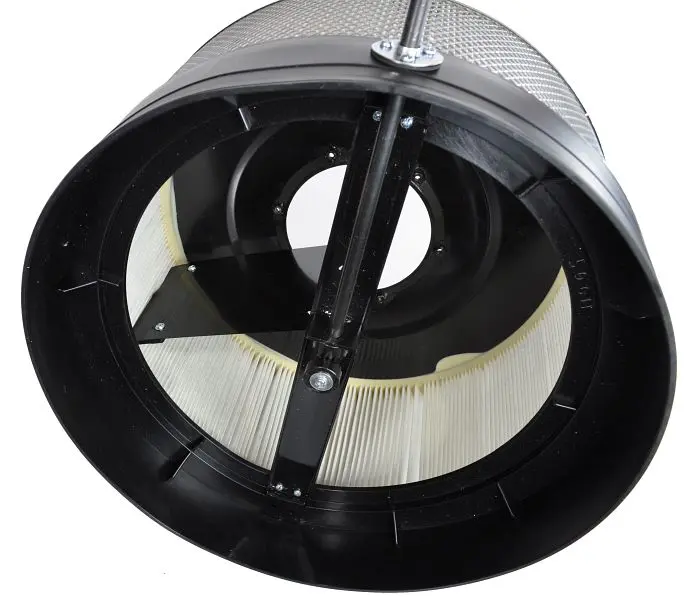

• Pleated canister filter captures dust particles down to 1 micon. Cleans easily with rotating internal flappers.
• Incorporates clear plastic disposable bottom bag and quick release band clamp.
• For DRY USE ONLY – not for wet applications

Technical specs

• Motor: 1HP, TEFC
• Motor Speed (no load): 3,450 RPM
• Amps, Hertz, Phase: 7 A / 3.5 A, 60 Hz, 1 Ph
• Dust Collection Velocity CFM: 800 @ 4″ or 1,100 @ 5″ inlet
• Max. Static Pressure (at 0 CFM): 7.2″
• Blower Impeller: 10″ Diameter, Aluminum
• Sound Rating @ 6 Feet: <86.375 dB
• Canister Filtration Rating: 1 Micron
• Filtration Efficiency: 99%
• Canister Pleated Filter Size: 19-5/8″ x 7-1/8″
• Total Pleated Filter Surface: 13.46 sq/ft
• Filter Cleaning Method: Hand crank, internal rotating flapper
• Plastic Bag Length (installed): 20″
• Plastic Bag Capacity: 1.5 Cu. Ft.
• Dust Ports / Hose Connections: 1 @ 5″, 2@4″
• Intake Funnel Size: 5″ diameter
• Machine Certification: All metal frame
• Overall Size (LxWxH): 23-1/2″ x 21″ x 46″
• Net Weight: 61 lbs.
• Shipping Carton Size Box 1of2 (LxWxH): 18.6″ x 18.3″ x 15.8″
• Shipping Weight Box 1of2: 45.2 lbs.
• Shipping Carton Size Box 2of2 (LxWxH): 22″ x 22″ x 17.32″
• Shipping Weight Box 2of2: 23.2 lbs.
