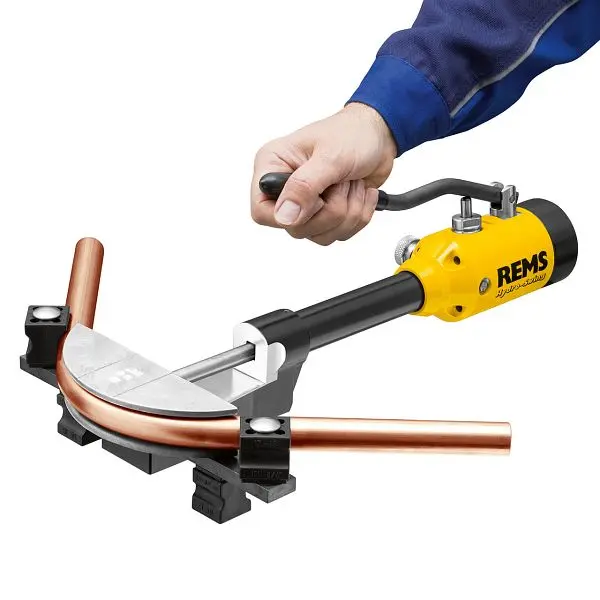

Rems Hydro-Swing Hydraulic Pipe Bender Set (Allround 32), 153528

Rems Hydro-Swing Hydraulic Pipe Bender Set (Allround 32), 153528, 4039976153300

effortless working due to oil-hydraulic force transmission!

• Sturdy, compact drive unit with closed, maintenance-free hydraulic system.
• Universal utilize for many tubes
• Handy and light, only 2.4 kg (5.3 lbs)
• Proven, reliable ratchet feed
• Effortless, fast operation, e.g. bends Ø 22 mm (7/8″) in only 18 s
• Only 1 bender drive for the complete work range up to Ø 32 mm
• Marked bending formers for exact bending
• Crossover, swan-neck, reverse bends possible
• Easy and rapid changing of bending formers
• Dependable hydraulic thrust with overload protection
• Bender recovered after a few bends through savings on fittings
• Oil-hydraulic hand pipe bender Ø 10 – 32 mm, Ø 3/8 – 7/8″, up to 90°
• Soft copper pipes Ø 10 – 22 mm, Ø 3/8 – 7/8″, s ≤ 1 mm, soft, coated copper pipes Ø 10 – 18 mm, Ø 3/8 – 5/8″, s ≤ 1 mm, pipes of the press fitting systems made of stainless steel Ø 12 – 22mm, s ≤ 1.2 mm, soft, coated carbon steel Ø 12 – 18mm, s≤ 1.2mm, soft precision steel pipes Ø 10 – 22 mm, s ≤ 1.5 mm, composite tubes Ø 14 – 32 mm

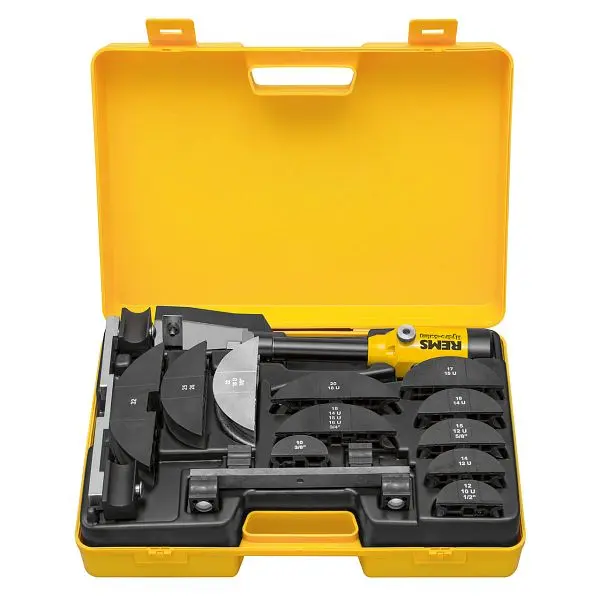

• Up to Ø 26 mm with drive unit, bending formers, support former back H-S Ø 10 – 26 mm with support formers, Allen key, in a sturdy steel case
• Up to Ø 32 mm with drive unit, bending formers, 2 support former backs Ø 10 – 26 mm and Ø 32 mm with support formers, Allen key, in a sturdy steel case
• 10-12-14-15-16-17-18-20-22-25/26-32
• 3/8-1/2-5/8-3/4-7/8″
