Palmgren Quick 6" Precision Dual Force milling machine vise with stationary base, 9626608

Palmgren 6″ Precision Dual Force milling machine vise with stationary base, 9626608, 726896266084

This economical Dual Force standard machine vise is recommended for milling, drilling, boring, tapping and concludeing operations on most parts. These vises can be utilized on your machining centers as well as you basic manual machine tools.

• Equipped with the Dual Force anti-lift mechanism
• Friction reducing needle bearings reduce clamping friction
• Hardened jaw plates
• Hardened vise bed
• Semi-hard steel screw
• Extra-large opening
• 60,000 PSI ductile iron castings

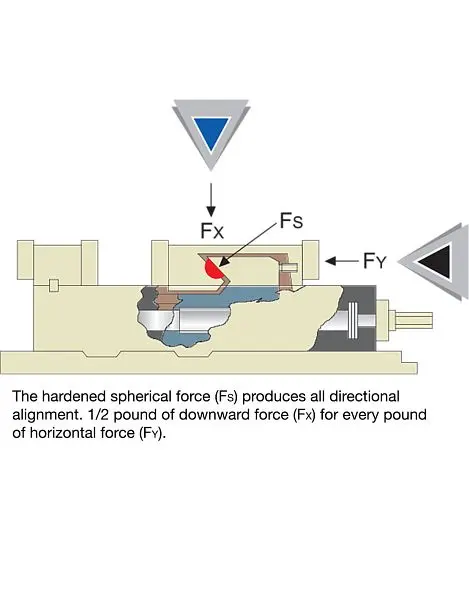

Palmgren’s Dual Force line of precision machine vises are all designed for precision part clamping and are ideal for utilize in running production parts where datum’s, flatness and parallelism is key. The Dual Force Anti-Lift Mechanism design allows the moveable jaw to deliver a 1/2 pound of downward force for every pound of horizontal force, reducing jaw deflection up to 80% while producing “all directional alignment” of the moveable jaw. This unique design prevents parts from lifting upward under heavy clamping and machining loads. All Dual Force vises deliver workholding efficiencies by providing the strength and rigidity to hold parts securely and accurately.

Technical specs

• Jaw Width: 6 in
• Jaw Opening: 8 – 3/4 in
• Throat Depth: 1 – 3/4 in
• Jaw Deflection: .001@4000 lb
