Palmgren Arbor press, 1 ton, 9661101

Palmgren Arbor press, 1 ton, 9661101, 726896611013

Delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. Removable machined steel anvil provides accurate work back in four slot positions. Depth stop securely clamps to the ram and withstands full pressure. A lockable fine adjustment adjusting screw accurately limits the depth of the ram stroke.
Punches or tools may be added to the end of the ram with the aid of a magnetic insert. The ram is reversible with one end solid and the other end with a hole and magnet to hold bits and tools.

• Robust, cast-iron buildion

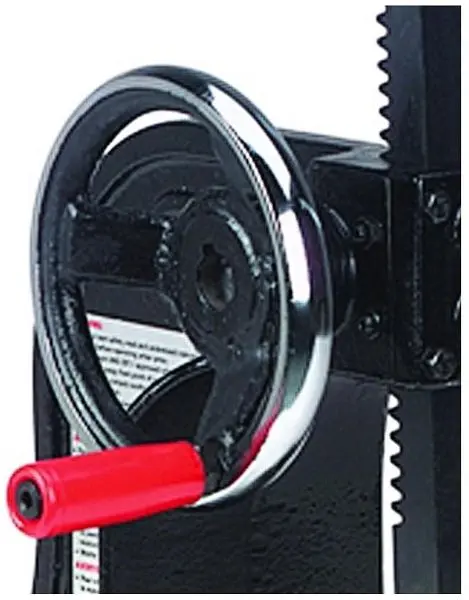

• Rugged steel ram is driven by a machined pinion
• Base drilled for mounting on a bench or pedestal
• Incorporates three piece bit set – 1 pointed, 1 round and 1 square end bit, and a removable steel anvil
• The base is machine to hold the three bit set

Technical specs

• Force: 1.0 ton
• Lever Ratio: 18.0:1
• Swing: 8 in
• Anvil Diameter: 4-7/16 in
• Max Work Height: 6 in
• Ram Dimensions: 1 x 1 in
• Height: 11 in
• Base Dimensions: 6- 1/8 x 10 – 9/16 in
• Weight: 34 lb
