Palmgren 8″ x 10″ Dual Force Machine Vise, 9625930, 726896259307
Palmgren’s premium CNC vises combines quality, high precision and wide clamping capacities at an affordable price. Perfect for everyday utilize from high production surroundingss to rapid prototyping machine shops. Our precision premium machine vises will optimize your manufacturing workholding processes.
- Equipped with the Dual Force anti-lift mechanism
- Sealed friction reducing needle thrust bearing assist boost clamping pressure and reduce drag
- Vise nut does not extend beyond the end of the vise body
- Hardened jaw plates
- Hardened vise bed
- Reiterateability within 0.001″
- Bed heights matched to ±0.0004″
- Parallelism of keyways on the bottom of the vise bed to the jaw face ±0.0008″
- 80,000 PSI stress relieved ductile iron castings

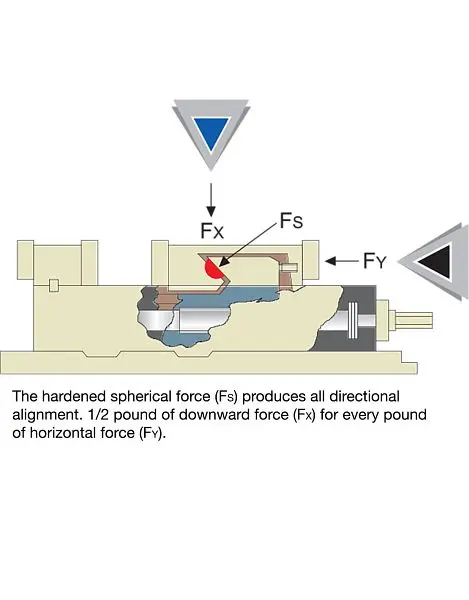

Palmgren’s Dual Force line of precision machine vises are all designed for precision part clamping and are ideal for utilize in running production parts where datum’s, flatness and parallelism is key. The Dual Force Anti-Lift Mechanism design allows the moveable jaw to deliver a 1/2 pound of downward force for every pound of horizontal force, reducing jaw deflection up to 80% while producing “all directional alignment” of the moveable jaw. This unique design prevents parts from lifting upward under heavy clamping and machining loads. All Dual Force vises deliver workholding efficiencies by providing the strength and rigidity to hold parts securely and accurately.
Technical specs
- Jaw Width: 8 in
- Jaw Opening: 10 in
- Throat Depth: 1- 3/4 in
- Jaw Deflection: .001@4000 lb
