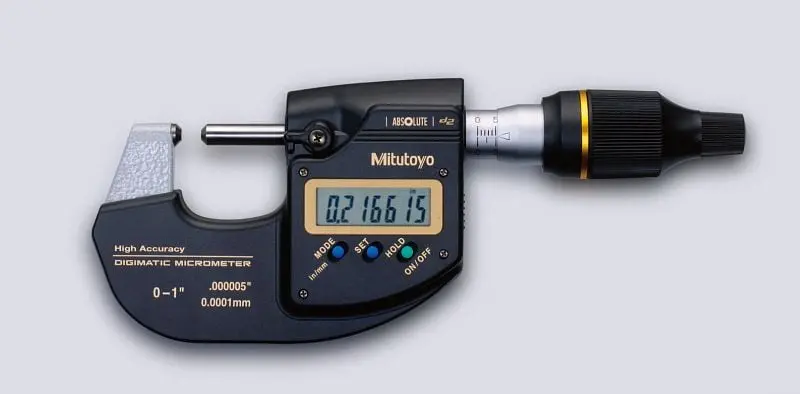

Mitutoyo Flexible Digimatic Micrometer, Mdh, I/m 0-1 In, .000005 In-Sw, 293-130-10

Mitutoyo Digimatic Micrometer, Mdh, I/m 0-1 In, .000005 In-Sw, 293-130-10, 603908628156

0-1 In/0-25.4mm, .00005 In/.00002 In/0.0001mm/0.0005mm switchable, Mdh Digimatic Outside Micrometer, With Output

• Enabling .000005”/ 0.1μm reanswer measurement, this micrometer is ideal for customers who need to create highly accurate measurements with a hand-held tool
• A highly rigid frame and high-performance constant-force mechanism* enable more stable measurement, while the clicks emitted while the work piece is being measured assure the operator that measurement is proceeding normally. *Patent pending in Japan, the United States of America, the European Union, and China
• Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error cautilized by thermal expansion of the frame when performing handheld measurements

Technical specs

• Range: 0 – 1 In/ 0 – 25.4mm
• Prim. Meas. Range Lower: 0 In
• Prim. Meas. Range Upper: 1 In
• Resorgrad.: .000005 In
• Resorgrad.: 0.0001mm
• Accuracy: ±.00002 In
• Cont. Point Flatness: .000012 In
• Parrallelism In: 0, 000024
• Prim (Od) Cont. Pnt Material: Hardened Steel
• Output: Y
• Cable 40: 05CZA662
• Cable 80: 05CZA663
• Measure Force: 7 to 9N
• Cnt.pnt.dia.: 6.35mm
• Thimble Dia.: 25mm
• Spindle Face: Flat
• Spindle Lock: Y
