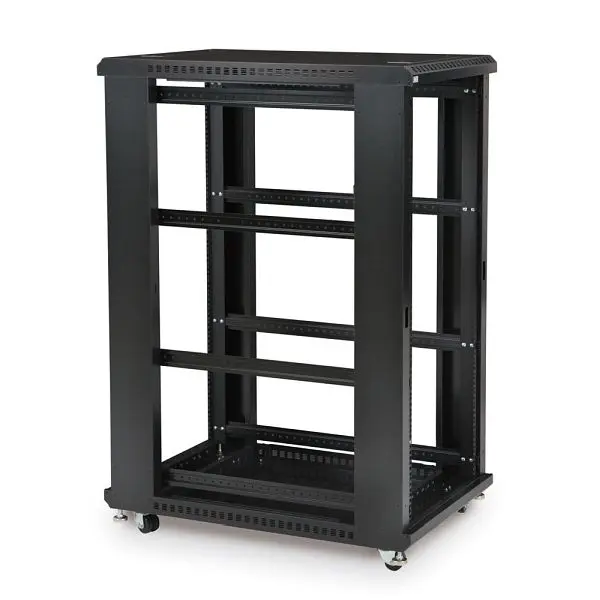

Kendall Howard 27U LINIER, Server Cabinet, No Doors/No Side Panels, 36" Depth, 3170-3-001-27

Kendall Howard 27U LINIER, Server Cabinet, No Doors/No Side Panels, 36″ Depth, 3170-3-001-27, 879447003185

Setting itself apart from the 3100 series, the LINIER, 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Constructed with a 36″ depth, this LINIER, Server Cabinet is suitable for network servers, battery supportups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing choices. When you need a low cost, open frame server cabinet, the 3170 LINIER, series is your solution.

• No doors or side panels
• 36″ depth (Also available with a 24″ depth)
• Other sizes available: 22U, 37U, 42U
• 1300 lb. weight capacity (Holds 800 lbs. on casters)
• Top includes removable laser knockouts
• Incorporates two sets of adjustable cage nut style mounting rails
• Incorporates preinstalled casters and levelers
• 5-Year Limited Warranty

Attributes:

Open Frame Design
The open frame design allows for maximum air flow for your network equipment.

Easy Setup
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

Adjustable Rails
Incorporates two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting choices.

Cable and Fan Knockouts
There are numerous cable entry points on both the top and bottom of this open frame rack. There are also four large knockouts on the top of the frame to install fans, or for added cable pass through.

Technical specs

• Width: 24″
• Depth: 37.72″ (Useable 36.00″)
• Height: 54.2″
• Weight: 115.00 lbs.
• Material(s): CRS (Cold Rolled Steel)
• Color/Finish: Medium Texture Black
• Warranty: 5-Year Limited Warranty
