Kendall Heat-Resistant Howard High Speed Fan Assembly Kit, 1908-4-001-01

Kendall Howard High Speed Fan Assembly Kit, 1908-4-001-01, 879447004168

The Kendall Howard High Speed Fan Assembly Kit assists to remove ambient heat that rackmount components can emit. Circulating new air into a wall mount cabinet or server enclosure assists to maintain the optimal temperature for devices such as servers, battery supportups, and UPS’s.

• Ball bearing design
• 115V / 115 CFM Fans
• Impedance protected
• RoHS compliant
• Brushless motor
• Incorporates power cord, fan guard, and installation hardware
• 1-Year Limited Warranty

Attributes:

All-in-One

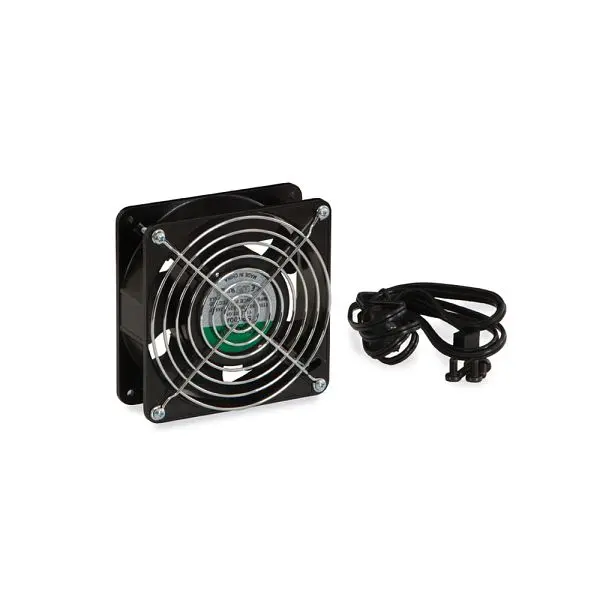

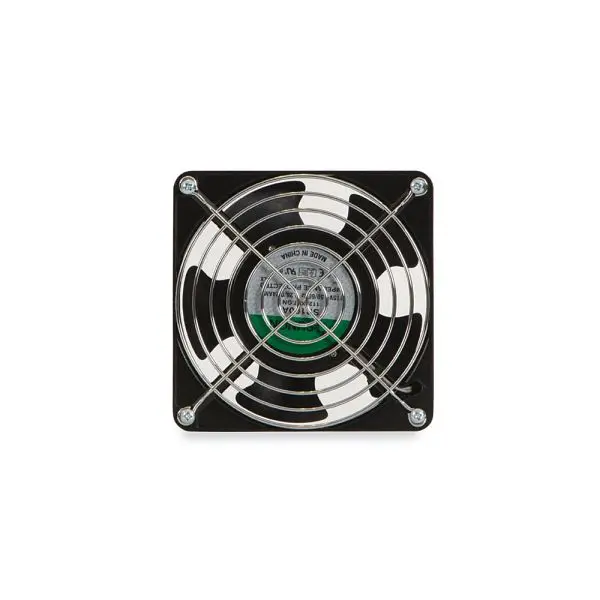

The fan assembly kit comes complete with one 115V / 115 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.

Easy to Install
The Kendall Howard Fan Assembly Kit is a snap to install. Ssuggest utilize the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.

Compatibility
The standard 4″ fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.

Optional Grounding
Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.

Technical specs

• Width: 4.69″
• Depth: 4.69″
• Height: 1.52″
• Weight: 2.00 lbs.
• Material(s): Rack Mount Panel: CRS (Cold Rolled Steel)
• Color/Finish: Rack Mount Panel: Black Powder Coated Finish
• Warranty: 1-Year Limited Warranty
• Fan Specifications: Bearing System: Sleeve
• Voltage: 115 VAC
• Rated Speed: 3100 RPM
• Airflow: 115 CFM
• Noise Level: 49dBA
• Operating Temperature: 14° F (-10° C) to 158° F (70° C)
• Power Cord Specifications: Cable Length: 6ft (72 in)
• Plug Type: NEMA 1-5 (type A)
