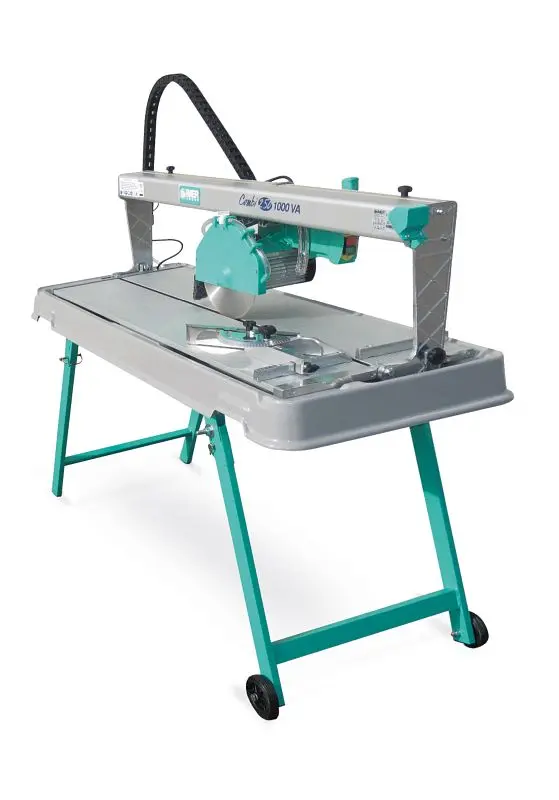

IMER COMBICUT 250/1000 VA 10″ Blade / 40″ Max Cutting Length with Plunge, 120V, 1.75HP, Single-Phase, 1188174, 8033679014216
SAWS DESIGNED FOR LARGER TILE AND STONE
Precision cast aluminum, high-tech engineering, and manufacturing. IMER has maked a saw which delivers superior accuracy, is lightweight, durable, and extremely reliable. Ideal for those jobs which are smaller in nature yet require cuts up to 40″ in length.

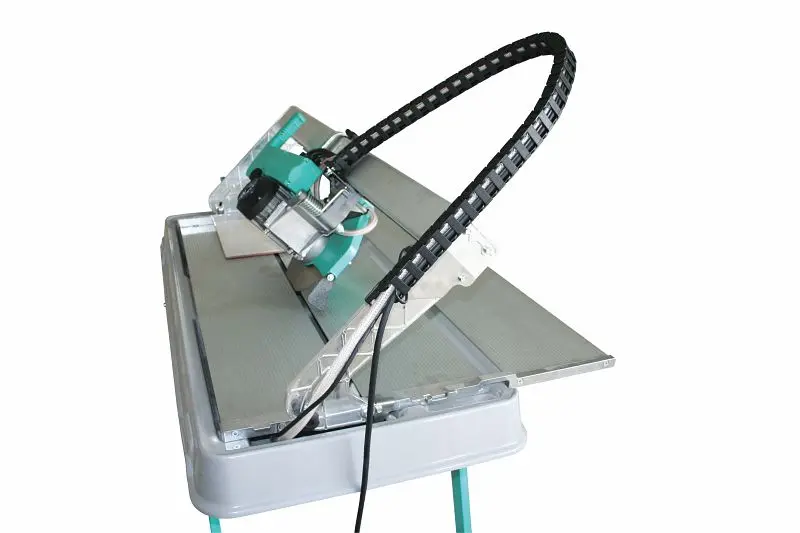

PLUNGE CUTS
Plunge cuts are smooth and precise as the cast aluminum cutting head pivots on a sealed bushing. “L” cuts for door jams are now quick n’ easy.
ACCURATE 45° CUTS
When 45 degree cuts are needed, just tilt the travel beam. The overhead beam design provides a smooth accurate cut. Effortless and accurate.
HIGH TORQUE, LOW RPM
The 110V motor on the Combi 250VA was designed specifically for this saw. High torque ata low rpm delivers fast, chip-free cutting performance. Our heavy-duty motors are designed to perfom all day providing consistent power on each start and cut.
INNOVATION
The cast aluminum protractor is the only truly accurate rip guide in the industry.
SIDE TABLE INCLUDED
The side table backs large format tiles.
- Incorporated protractor up to 180°
- Complete with high flow water pump
- To back large format tiles slide the side table into place
- 10″ Continuous rim porcelain blade included
- Merged stand with wheel kit flips up and out of the way for transport
Technical specs
- Diameter: 10 in/10 in
- Blade shaft diameter: 5/8 in/5/8 in
- Max. cutting length (w/plunge cut): 37 (40) in/57 (60) in
- Max. cutting depth: 3-¾ in/3-¾ in
- Motor rating: 1.75 hp 110v, 15 amp/1.75 hp 110v, 15 amp
- Blade speed: 2800 rpm/2800 rpm
- Weight (boxed, includes stand): 82 (98) lbs/125 (150) lbs
- Water pan capacity: 12 gal./13 gal.
- Water pump flow: 3 gpm/3 gpm
- Length (boxed): 55 (58) in/76 (77) in
- Height (boxed): 24 (26) in/24 (26) in
- Width (boxed): 25 (27) in/25 (27) in
