IMER COMBICUT 200 VA 8" Blade / 24" Max Cutting Length with Plunge, 120V, 1.75HP, Single-Phase, 1188084

IMER COMBICUT 200 VA 8″ Blade / 24″ Max Cutting Length with Plunge, 120V, 1.75HP, Single-Phase, 1188084, 8033679012410

ACCURATE, LIGHTWEIGHT RAIL SAW
User-friendly and built to last. The perfect answer for rental stores as the Combi 200VA is equally at home in the hands of the professional installer, contractor or the Do-It-Yourselfer.

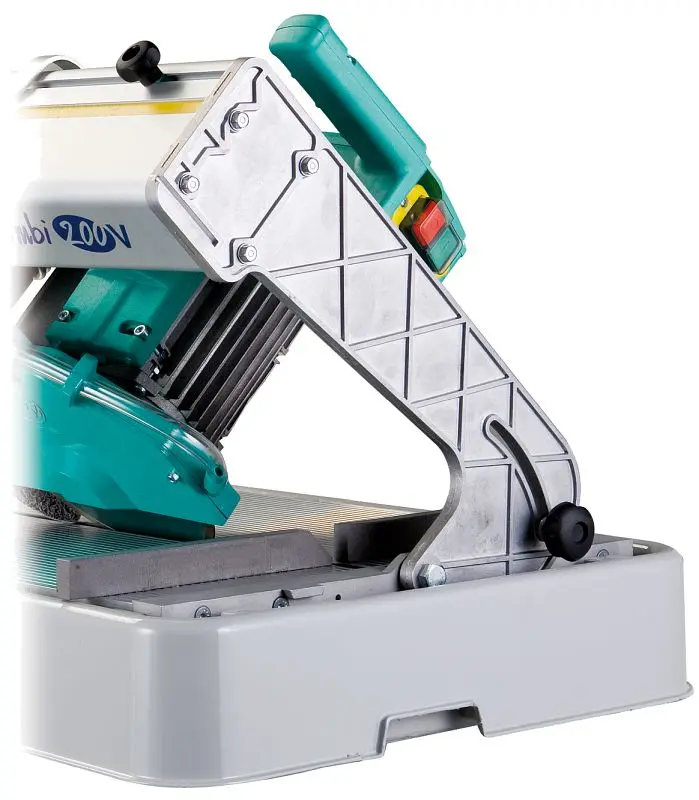

PLUNGE CUTS
Plunge cuts are smooth and precise as the cast aluminum cutting head pivots on a sealed bushing. “L” cuts for door jams are now quick n’ easy.

ACCURATE ANGLED CUTS

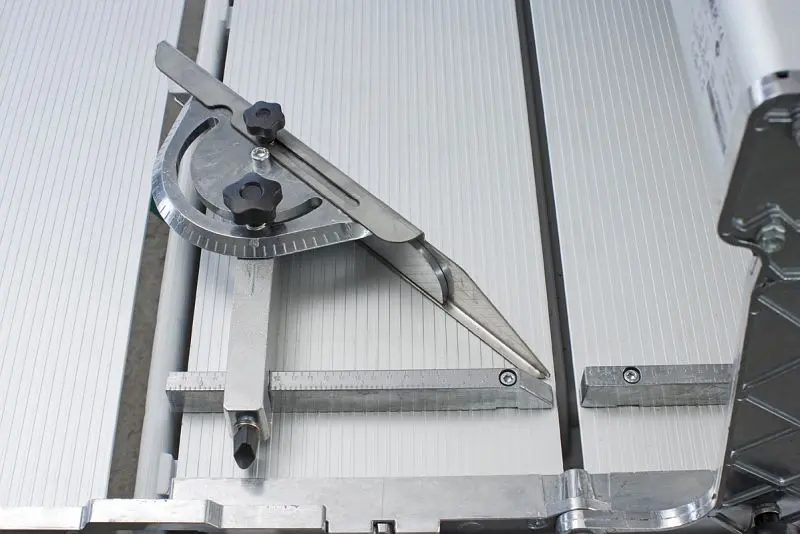

When 45 degree cuts are needed, just tilt the travel beam. Effortless and accurate. While the overhead beam design provides a smooth accurate cut. The cast aluminum protractor is the only truly accurate rip guide in the industry.

• 8″ continuous rim porcelain blade included
• Complete with high flow water pump
• Incorporated protractor up to 180°

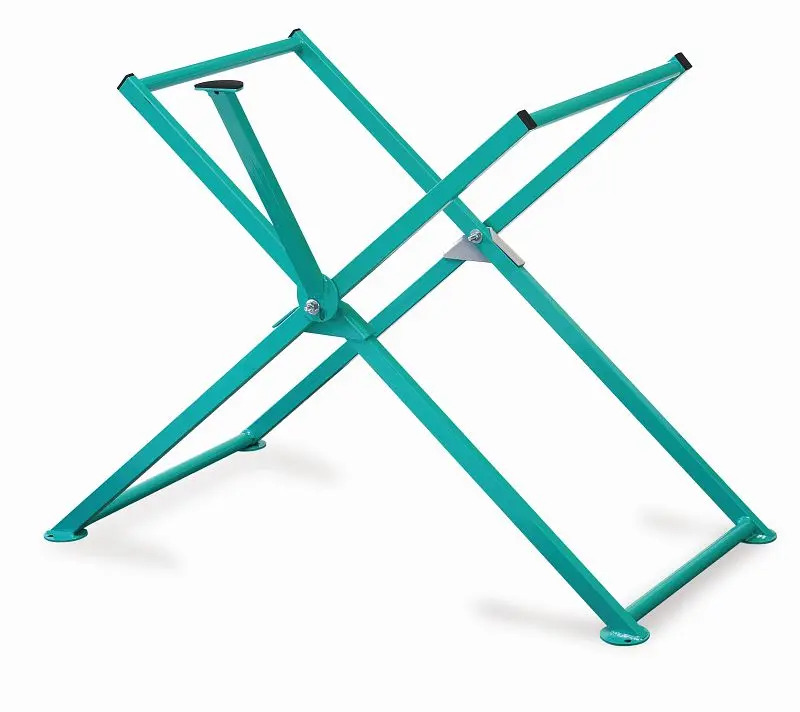

• Stand included

Technical specs

• COMBI 200VA 8”/COMBI 250VA 10”
• Blade diameter: 8 in/10 in
• Blade shaft diameter: 5/8 in/5/8 in
• Max. cutting length (w/plunge cut): 21 (24) in/28 (31) in
• Max. cutting depth: 2-¾ in/3-¾ in
• Motor rating: 1.75 hp 110v, 15 amp/1.75 hp 110v, 15 amp
• Blade speed: 2800 rpm/2800 rpm
• Weight (boxed, includes stand): 48 (68) lbs/72 (85) lbs
• Water pan capacity: 5 gal/10 gal
• Water pump flow: 3 gpm/3 gpm
• Length (boxed): 35 (37) in/40 (43) in
• Height (boxed): 19 (22) in/22 (24) in
• Width (boxed): 18 (20) in/18 (21) in
