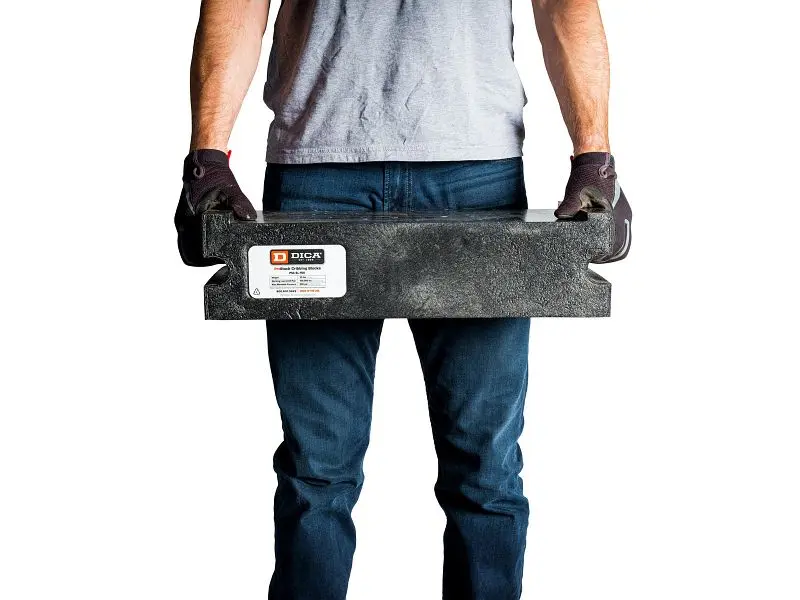

Dica Extra-Strong Cribbing Block 21.5"x9"x6", FLAT Bottom, PSC-SL-150

Dica Cribbing Block 21.5″x9″x6″, FLAT Bottom, PSC-SL-150

• A quantity of one, equals one outrigger pad.
• All cribbing blocks, outrigger pads and grip pads are SOLD SEPARATELY.

BLOCK OVERVIEW

• ProStack Slot Lock 21.5″ x 9″ x 6″ FLAT BOTTOM Cribbing Blocks are designed for applications requiring the bottom block in a stack to rest on a flat surface, like a shop floor.
• The cribbing kit setup of a SecuretyTech Base Pad and two ProStack Blocks has a 100,000 lb. working load limit and a max allowable pressure of 500 psi.

SET UP DETAILS

• FLAT BOTTOM blocks are to be utilized as a base layer with the flat bottom FACING DOWN, they can also be utilized as a top layer with the flat bottom facing up.
• All blocks in a stack must be oriented so that the large flat “working surfaces” are in FULL CONTACT with the layer above and below.
• NEVER position the blocks so they are backed ONLY by the steps/flanges at the ends of the block.

CRIBBING BLOCK KIT

• Items sold separately, implyed quantities are per outrigger foot.
  Base Pad Options:
• (1) D2424-1.5 SecuretyTech (BLACK) Outrigger Pad
  Cribbing Blocks:
• (2) PSC-SL-150 ProStack SLOT LOCK& FLAT BOTTOM
• (2) PSC-SL-100 ProStack SLOT LOCK // FLANGE BOTTOM
  Grip Pad:
• (1) NP1818.75 Neoprene Grip Pad

Technical specs

• Part Number: PSC-SL-150
• Interlocking System: FLAT BOTTOM, with flange top.
• Dimensions: 21.5″ x 9″ x 6″
• Weight: 28.0 Lbs.
• Crush Rating: 500 PSI
• Working Load Limit: 100,000 LBS.
• Stacking Height: 5.0″
• Color: Black
