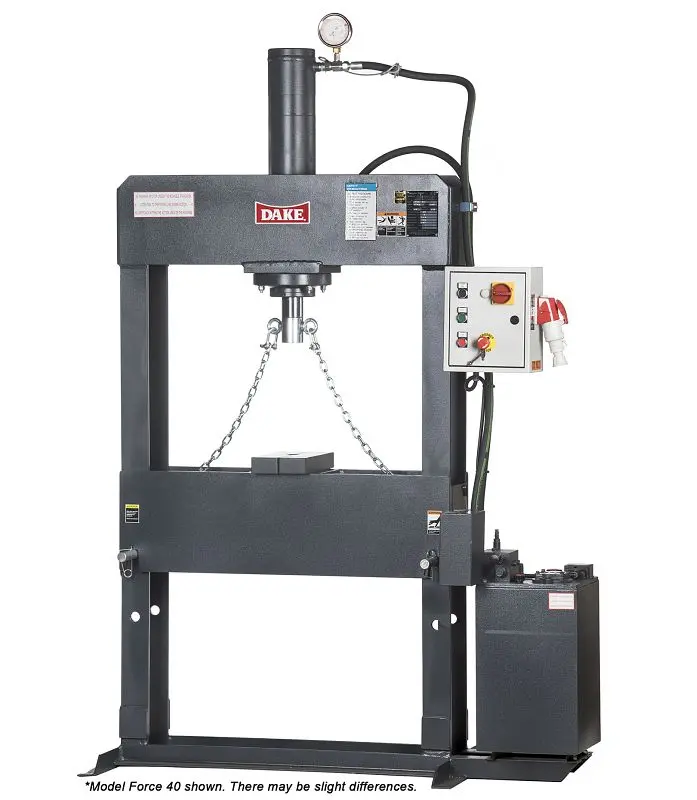

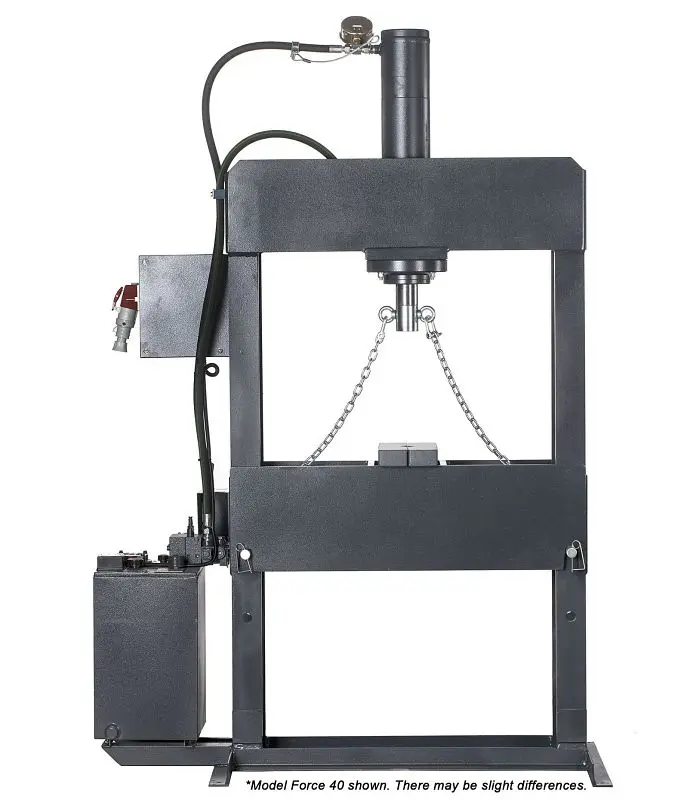

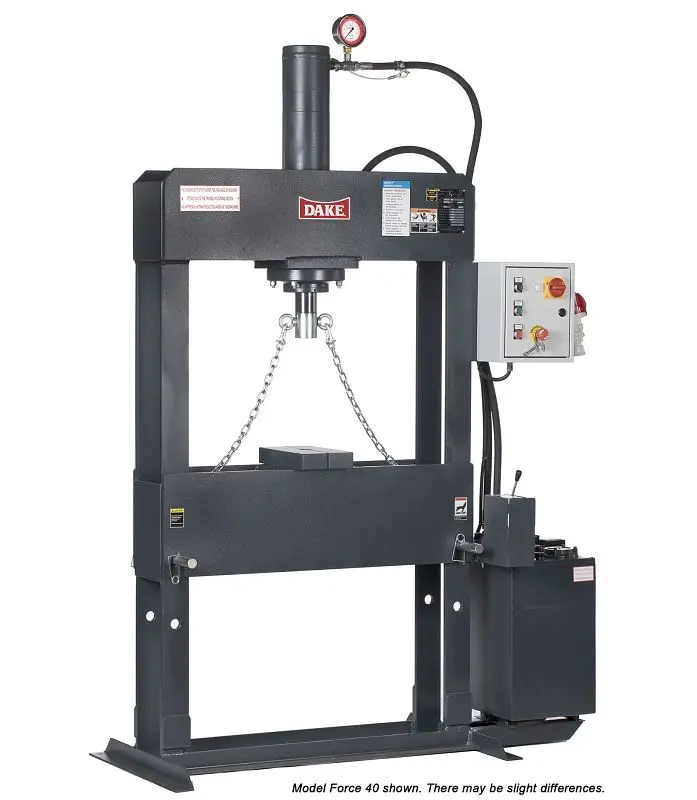

Dake Three Phase Dura-Presses, Model Force 70, 70 tons Capactiy, 972004

Dake Three Phase Dura-Presses, Model Force 70, 70 tons Capactiy, 972004

70 ton capacity. 70 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram develop. Joystick operation creates this machine simple to operate. A fast, quiet, dependable, economical price, smooth operating press that is very easy to operate.

Attributes:

• Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal.
• Welded heavy steel plate frame for greater rigidity.
• 3 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow (100 ton model).
• All electrical controls are low voltage (24V).
• Preset and factory-sealed relief valve to prevent exceeding pressure capacity.
• Ram has lifting eyes that attach a chain to hydraulically move the table.
• 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow (40 & 70 ton models)
• Smooth, responsive control valve.
• Rapid develop of the ram to the workpiece – speed shifts automatically when contact is made.

Quality Equipemnt:

• Frame
• 2 Steel Table Plates
• Lifting Chain
• Cylinder
• Pressure Gauge

Technical specs

• Model Number: Force 70
• Capacity: 70 Ton
• Operation: Electric
• Horsepower: 2
• Voltage: 220V/440V
• 3-Phase
• Width between uprights: 35″
• Width between table channels: 8″
• Minimum ram to table: 7-1/4″
• Maximum ram to table: 32″
• Ram travel: 19″
• Footprint: 63″ x 27″
• Height: 88″
• Weight: 1595 lbs
• Base: 63″ x 27″
• Ram advance speed: 42 ipm
• Pressing speed: 4 ipm
