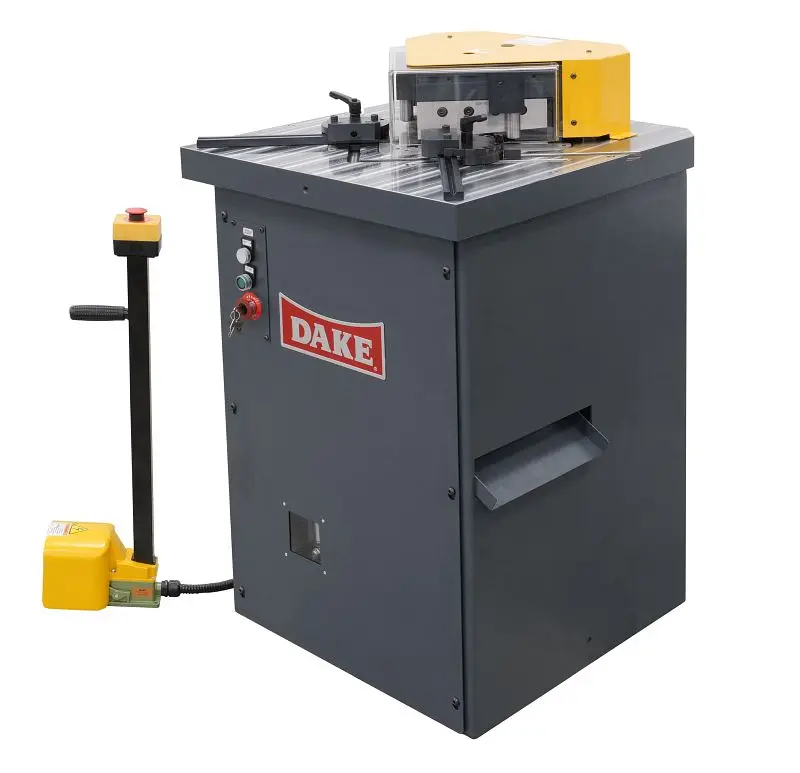

Dake Superior Hydraulic Sheet Metal Notchers, Model DLN-6200, 90 Degree Notch Angle, 960400

Dake Hydraulic Sheet Metal Notchers, Model DLN-6200, 90 Degree Notch Angle, 960400

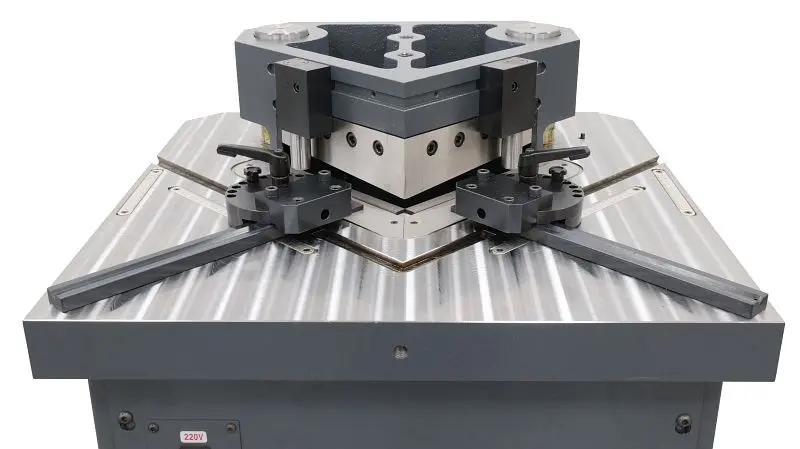

4 Ga. mild steel cutting capacity. This corner Notcher has a 6mm or 4-gauge mild steel capacity, so it can create quick work of most any job. The DLN-6200 sheet metal corner Notcher machine has blades that are fixed at 90″ø, ensuring a perfect notch every time. A 25.5″x 25.5″oversized working table includes table guides, for even more accuracy. The DLN-6200 sheet metal Notcher machine has 8.5″long blades that can be resharpened many times for even more life The blades have a negative rake to pull the material to the stops during the cut, for the best accuracy available. The DLN-6200 sheet metal Notcher comes with a powerful 4HP 220V 3 phase motor and operator-controlled foot pedal that is capable of 15 strokes per minute.

Attributes:

• Foot pedal switch
• Long 8.5″ blades

Technical specs

• Model Number: DLN-6200
• Maximum Material: 4 Ga. (6mm/0.2242″)
• Controls: Foot pedal switch
• Operation: Foot Switch
• Horsepower: 4 HP three phase 220 volt
• Max. Stroke Per Minute: 15 Strokes per min.
• Notch Angle: 90 Degree (fixed)
• Max Notch Dimensions: 8.5″ x 8.5″

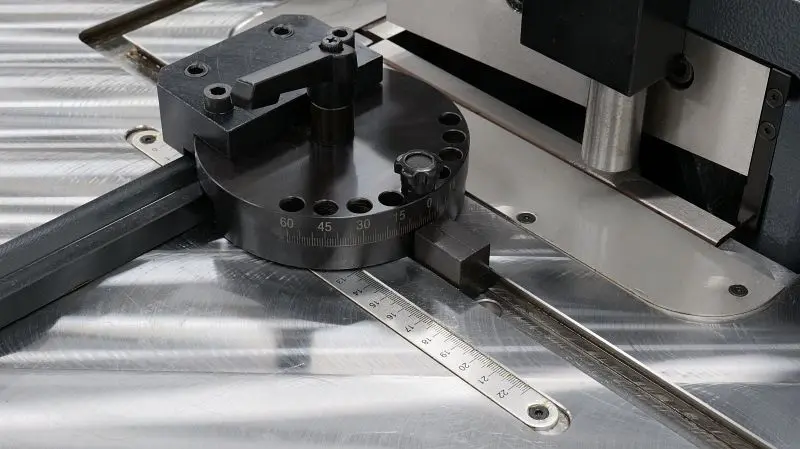

• Table Dimensions: 25.5″ x 25.5″
• Overall Dimensions: 31.5″ x 25.59″ x 46.85″
