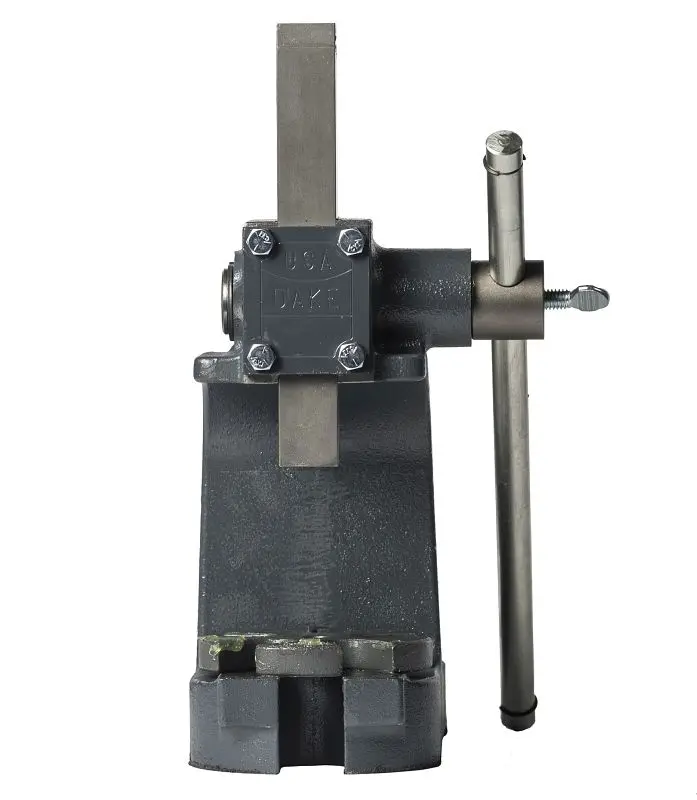

Dake Single Lever Arbor Presses, Model 00, 9" base length, 901004

Dake Single Lever Arbor Presses, Model 00, 9″ base length, 901004

1 ton capacity. Don”be fooled by its size. This 1 ton arbor press, with a slotted table plate and base opening, will get the job done for years to come.

Attributes:

• Shimmed ram cap permits take-up for potential wear.
• Smooth action gears permit finite ram control.
• Friction Brake
• Adjustable handle allows convenient handle positioning.
• Base opening and slotted table plate for arbor work.

Quality Equipemnt:

• Cast Iron Base
• Ram
• Slotted Table Plate
• Adjustable Handle

Technical specs

• Model Number: 00
• Capacity: 1 ton
• Leverage ratio: 25:1
• Ram size: 1x1x7-1/2″
• Maximum diameter work: 7″
• Throat: 3-1/2″
• Largest arbor: 1″
• Maximum ram to table: 5″
• Minimum ram to table: 4-1/2″
• Capacity over table: 5″
• Capacity over table plate: 4-1/4″
• Base length: 9″
• Base width: 4-1/4″
• Height: 9-3/8″
• Weight: 25 lbs
