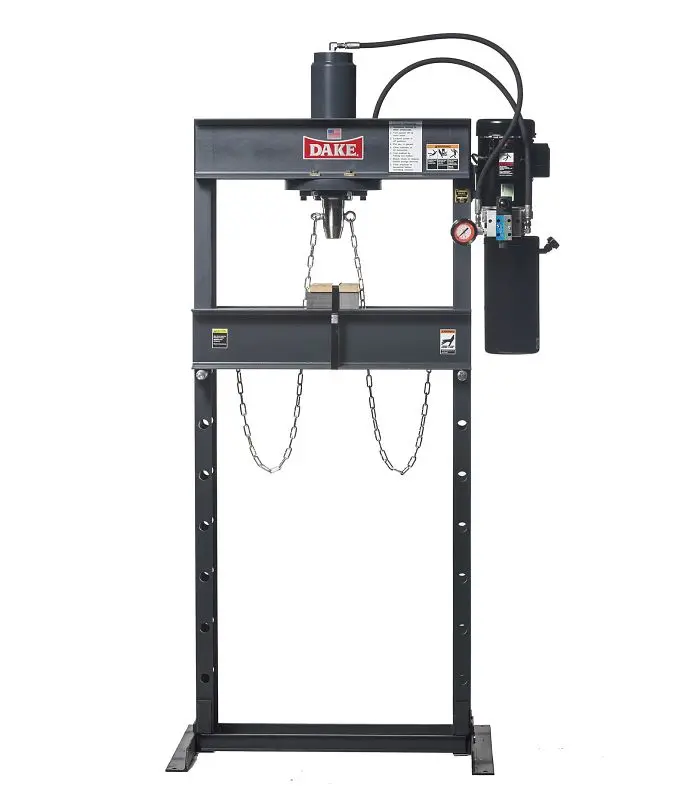

Dake Rust-Resistant Hand Operated Presses, Model 25H, 25 tons Flat Capacity, 907001

Dake Hand Operated Presses, Model 25H, 25 tons Capacity, 907001

25 ton capacity. The 25H hand operated hydraulic press offers 25 tons of pressing power. It features 5 3/16 inches between the table channels, 39 inch maximum ram to table, and is 76 inches tall.

Attributes:

• Hand operation for economical performance.
• By-pass hole prevents excessive ram extension.
• Rapid screw traverse of ram permits quick, simple movement of the ram by means of a convenient handwheel.
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
• Adjustable table permits simple vertical movement by means of self-locking hoist.

Quality Equipemnt:

• Frame
• 2 Steel V-Blocks
• Flat Ram Nose
• Pressure Gauge
• Workhead
• 2 Steel Table Plates
• Self-Locking Table Hoist

Technical specs

• Model Number: 25H
• Capacity: 25 tons
• Operation: Hand
• Width between uprights: 33-1/2″
• Width between table channels: 5-3/16″
• Minimum ram to table: 4″
• Maximum ram to table: 39″
• Ram travel: 5″
• Screw Travel: 5″
• Footprint: 42-1/2″ x 30″
• Height: 76″
• Weight: 460 lbs
• Base: 42-1/2″ x 30″
