Dake Ready-to-Use Single Phase Dura-Presses, Model Force 50DA, 50 tons Pipe Capacity, 909250

Dake Single Phase Dura-Presses, Model Force 50DA, 50 tons Capacity, 909250

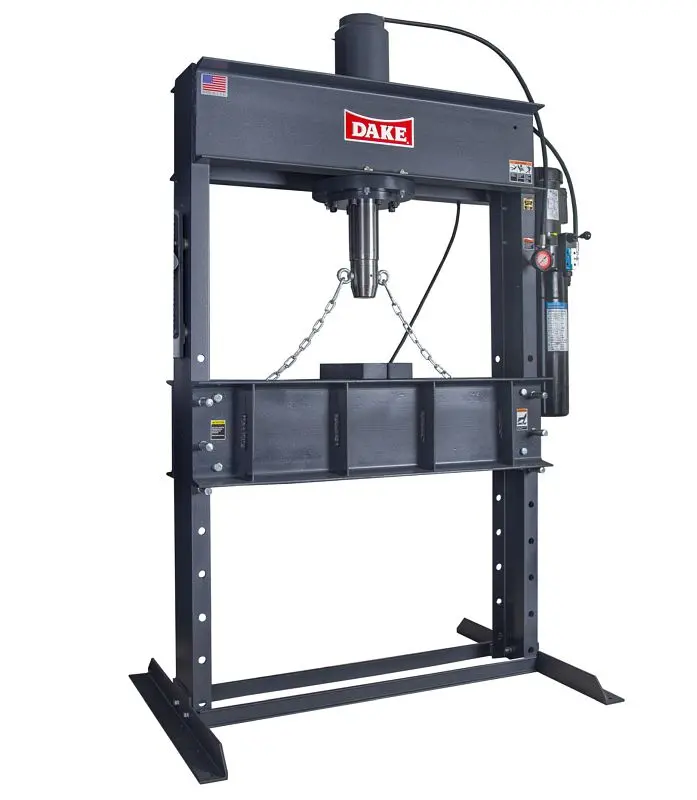

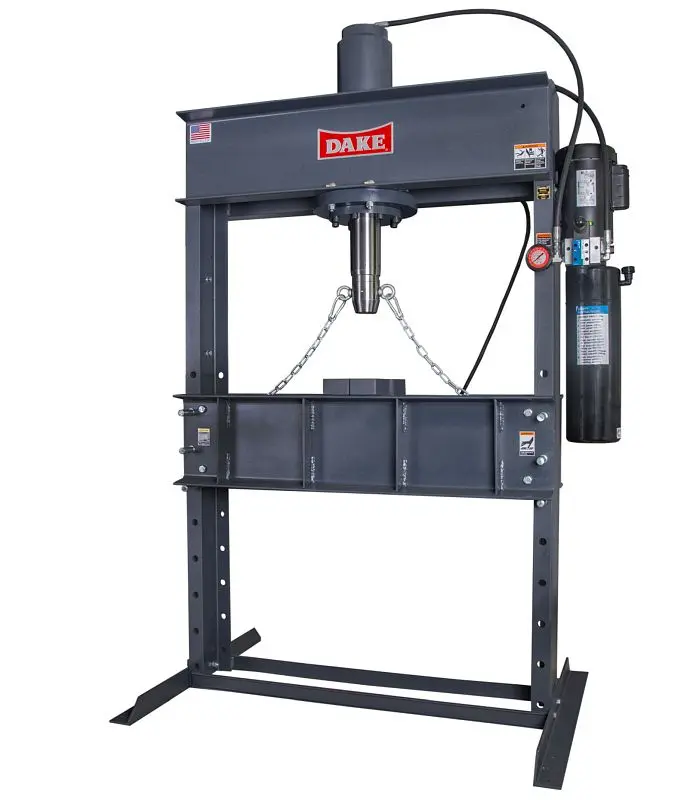

50 ton capacity. 50 ton hydraulic dura-press powered by a single-phase, 110-volt motor for pressing and forming applications. The channel iron H-frame accepts large and bulky items, and the table height adjusts for proper positioning with the included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.

Attributes:

• Electric power unit has convenient single phase, 110 volt operation for greater portability.
• Lever control ram develop for simple operation.
• Double acting cylinder allows for convenient positioning of ram.
• Robust, welded channel iron frame for durability.
• Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
• One hand ram positioning with 4-way valve hydraulic control.

Model Options:

• Remote Pressure Relief Valve
• Check Valve
• Traversing Head
• Two Hand Operation
• Certified Gauge

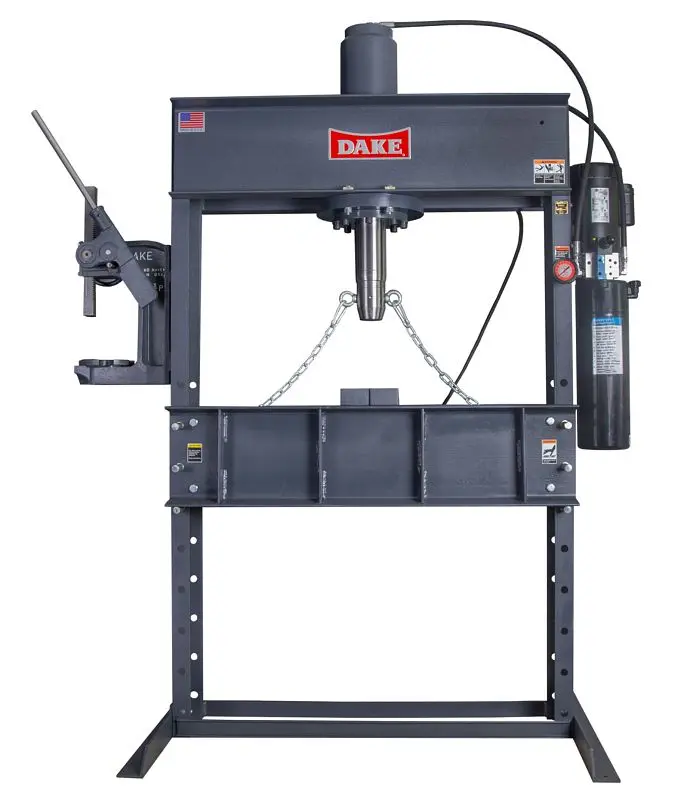

• Side Mounted Arbor Press

Quality Equipment:

• Frame
• Securety Relief Valve
• 2 Combination Table Plate/V-Blocks
• Pressure Gauge
• Lifting Chain

Technical specs

• Model Number: Force 50DA
• Capacity: 50 tons
• Operation: Electric
• Horsepower: 2
• Voltage: 110V/220V
• Single Phase
• Width between uprights: 44″
• Width between table channels: 8-1/4″
• Minimum ram to table: 10″
• Maximum ram to table: 41-3/4″
• Ram travel: 16″
• Horizontal workhead travel: Fixed
• Footprint: 55″ x 36″
• Height: 94″
• Weight: 1,330 lbs
• Base: 55″ x 36″
• Pressing speed: 11 ipm
• RPM: 3,450
