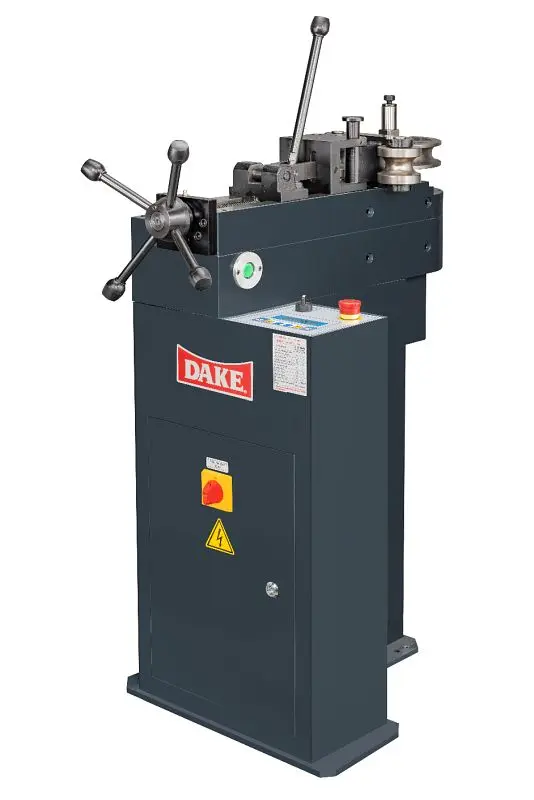

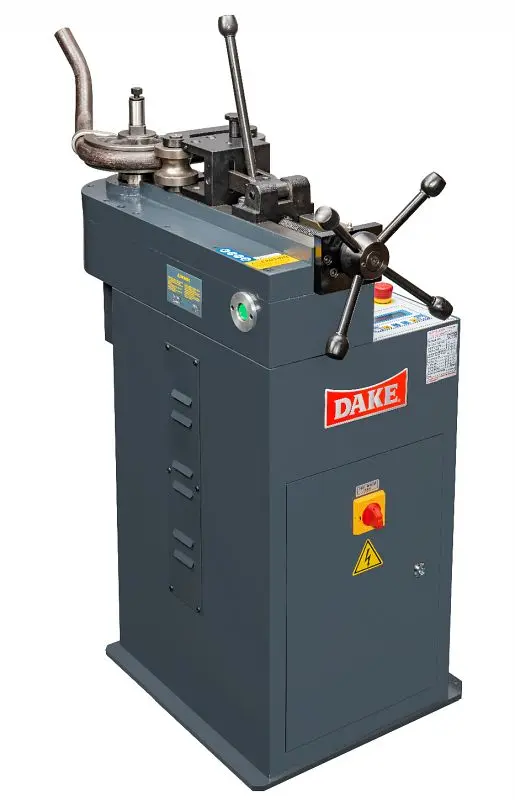

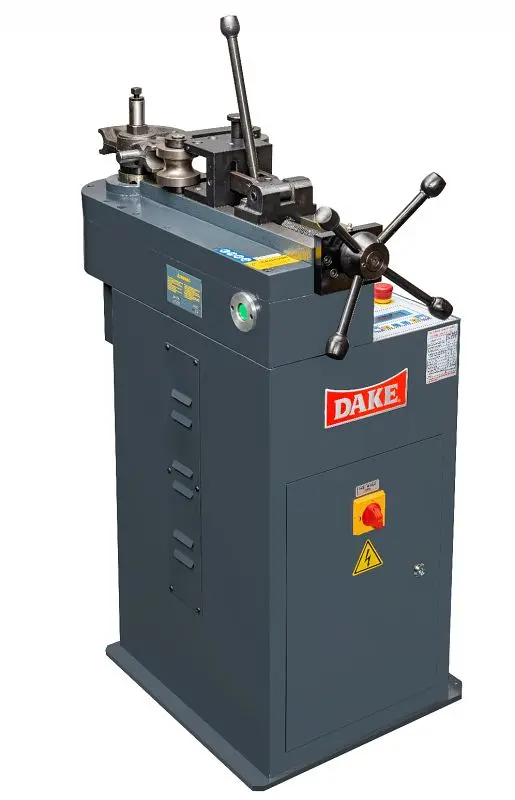

Dake Optimized Cartridge Bender, Model BM-70A, 962101

Dake Tube Bender, Model BM-70A, 962101

1/2″ – 2″ Material Diameter. Cast iron body tube bender. 3 HP 220V 3 phase motor. User friendly digital control panel with microprocessor, allowing utilizers to set the required bending angles. Capable of storing 50 programs with 9 bends per program Electric brake and automatic return to stop. Crafted to bend tube and pipe with constant bending radius without deformation.
.

Attributes:

• Cast iron body for rigidity tube bender
• Powerful 3 HP 220V 3 Phase motor
• Digital Regulation Panel with microprocessor, allowing utilizers to set the required bending angles
• Capable of storing 50 programs with 9 bends per program

Model Options:

• 3/4″ Die Set
• 1-1/4″ Die Set
• 2″ Die Set

Quality Equipment:

• 1″ Die Set

Technical specs

• Model Number: BM-70A
• Machine Type: Tube Bending Machine
• Minimum / Maximum Material Diameter: 1/2″ – 2″

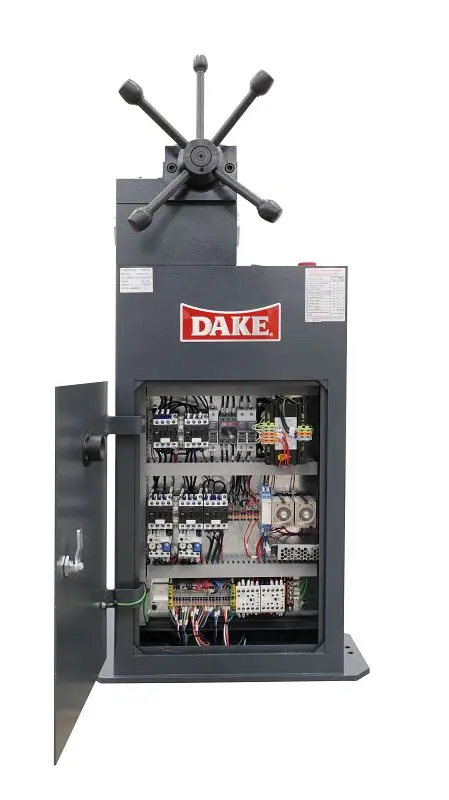

• Controls: Digital control panel with microprocessor
• and push button switch with E-stop
• Program capacity: 50 programs with 9 bends per program
• Maximum bend: 180 degrees (Infinitely variable)
• Operation: Two handed operation Non-adjustable
• Die Set: Easy mount for fast change over
• Horsepower: 3 HP
• Weight: 463 lbs
• Size: 31.89″ x 20.28″ x 43.31″
• Standard centerline bending radius: 0.12 or 0.15 inch
• Voltage: 220V – 3 Phase
