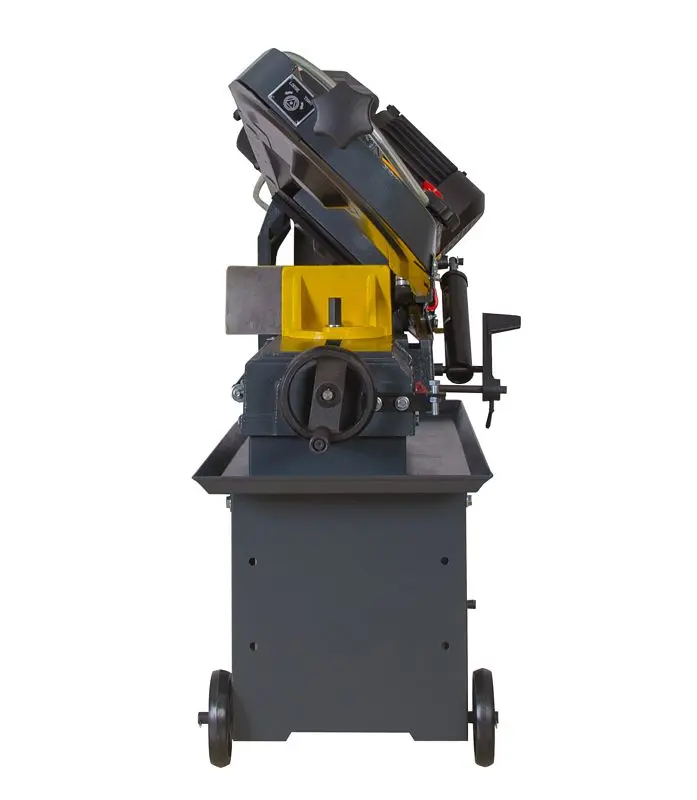

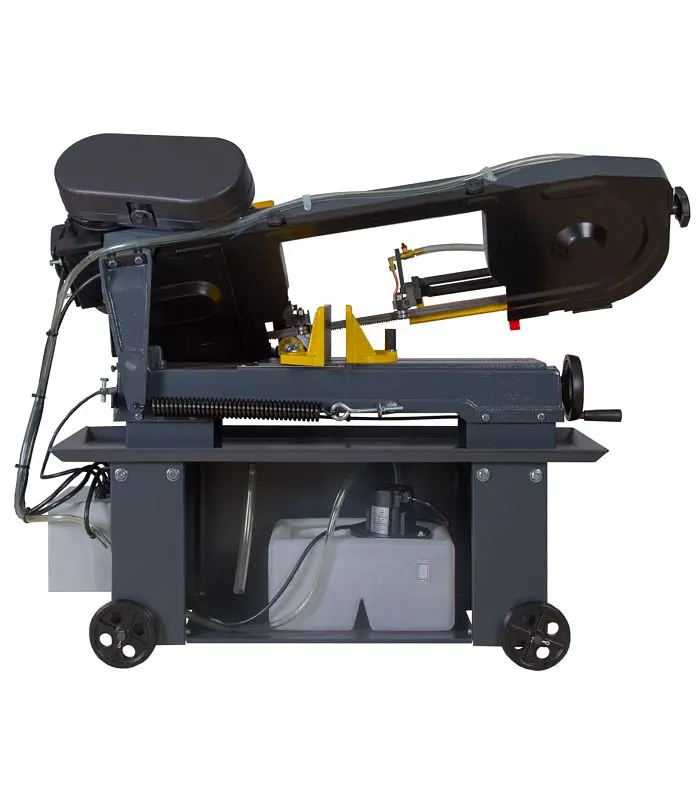

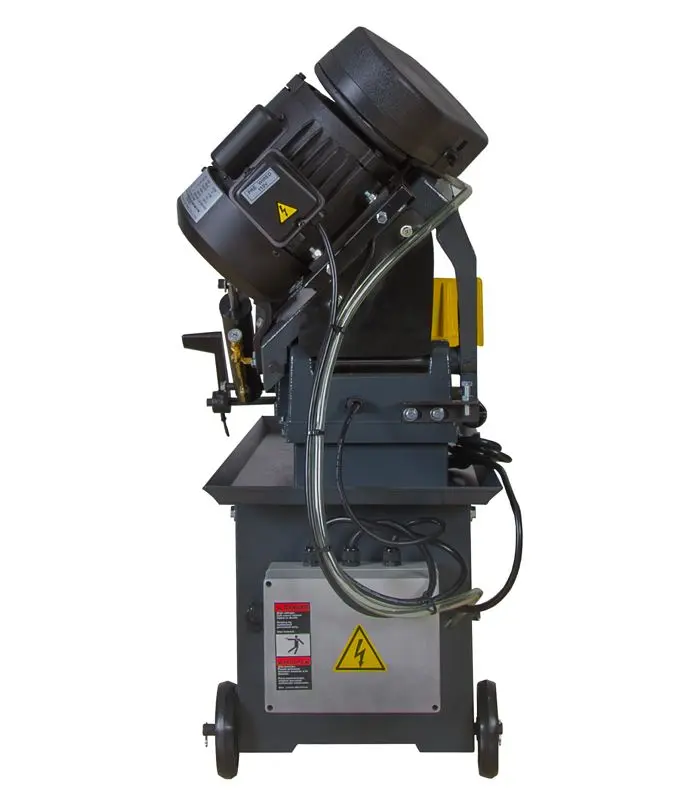

Dake Jumbo Quality Duty Bandsaws, Model SE712, 983100

Dake Quality Duty Bandsaws, Model SE712, 983100

110V single phase. Quality Duty horizontal bandsaw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner, and wet or dry cutting with easy operation.

Attributes:

• Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers.
• CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks.
• Quick release vise and hand wheel action for fast alter of material sizes.
• Wet/dry cutting
• Hydraulic control for head feed at variable rates and to lock head at any height.
• Convenience chip brush blade cleaner, storage in base and wheels that roll easily.
• Cutting table for vertical operation

Quality Equipemnt:

• Recirculating Coolant System
• Steel Base with Wheels
• Low Voltage Regulations
• Vertical Cutting Table

Technical specs

• Model Number: SE712
• Capacity: 7 Rounds
• 7 x 12 flats
• Horsepower: 3/4
• Voltage: 110V
• Single Phase
• Maximum blade speed: 235 fpm
• Blade width: 3/4″
• Blade length: 93″
• Blade speeds: 85 / 130 / 180 / 235 fpm
• Solid round 90″ capacity: 7″
• Solid round 45″ right capacity: 4″
• Solid rectangle 90″ capacity: 7″ x 12″
• Solid rectangle 45″ right capacity: 3-1/4″ x 5-1/2″
• Bed work (area): 21″ x 9″
• Weight: 355 lbs
• Height: 63-1/2″
• Floor space: 51″ x 16″
• Floor to bed: 21-3/4
