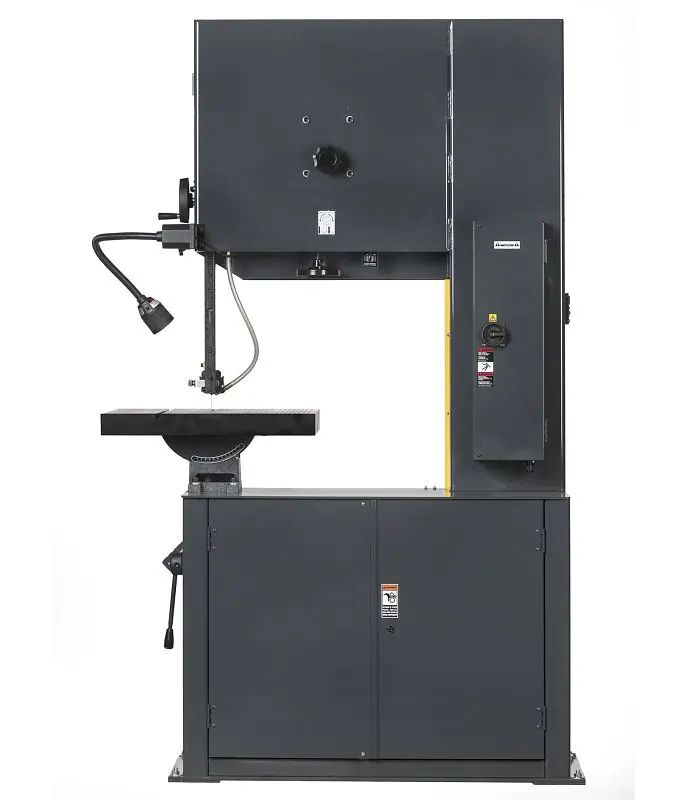

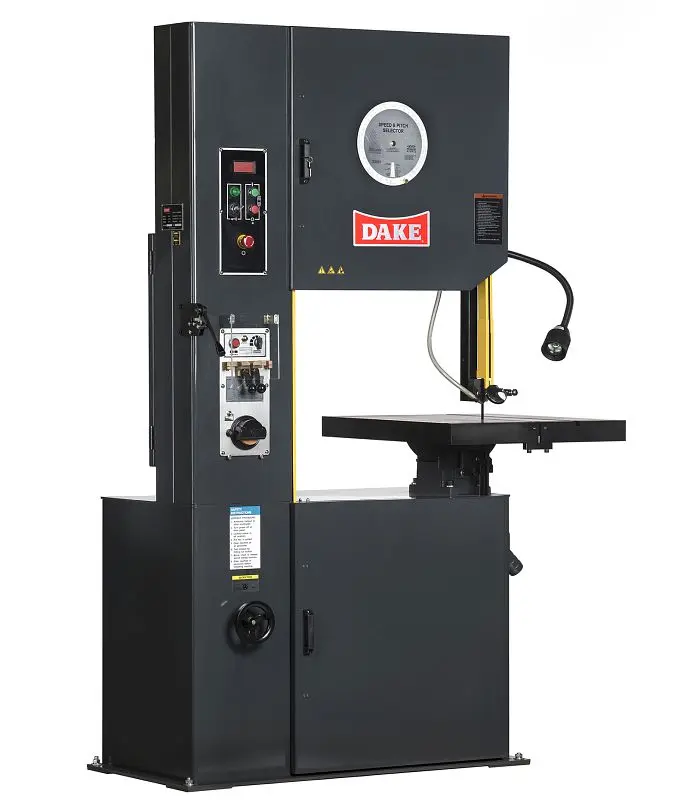

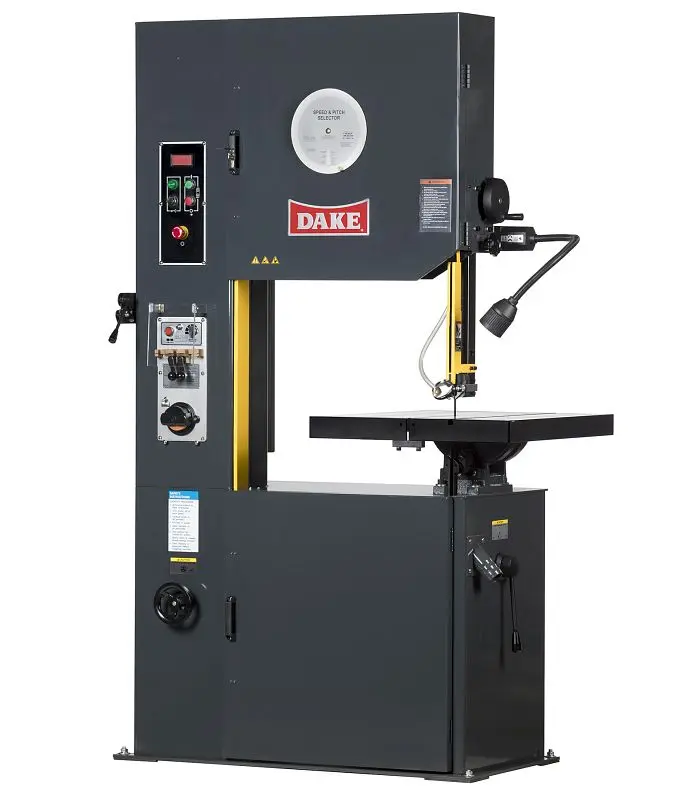

Dake Industrial Bandsaws with multi-tilting table, Model V-26, 987031-2

Dake Industrial Bandsaws with multi-tilting table, Model V-26, 987031-2

26″ Throat. This heavy duty vertical bandsaw is designed for large production pieces. A 26″ capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, door safety switches, and a work light. Complete with a built in welder/grinder/cutter this saw is sure to get the job done. *440V model requires step-down transformer for operation (part number: 300674) Sold Separately.

Attributes:

• Variable Speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range
• 26″ saw for intermediate-size workpieces
• Adjustable Table
• Digital speed indicator for clear readout
• Work light comes standard for boostd visibility
• Low voltage controls, main power lock out switch and door limit switches
• Heavy cast, tilting table with chip clearance grooves
• Constructed in blade welder with grinder and shear to easily fix broken blades

Model Options:

• 440V with a transformer
• Mist system

Quality Equipment:

• Heavy Duty Frame
• Rip Fence
• Work Light
• Blade Welder / Grinder / Shear
• Speed Indicator (Digital Readout)
• Blade Tension Indicator
• Digital Tachometer
• Chip Blower & Blade Brush
• 1 Quality Blade

Technical specs

• Model Number: V-26
• Horsepower: 3
• Voltage: 220V/*440V; 3 Phase
• Blade width: 1/4″-1″
• Blade length: 184 1/4″
• Blade speed: Low 50-415/High 550-5000 fpm
• Band wheels number: 2
• Band wheels size: 26 1/4″
• Throat size (band to column): 26″
• Maximum work height: 13″
• Work table dimensions: 23 1/2″ x 27 1/2″
• Worktable tilt: 45″ø R / 10″øL
• Worktable height: 39 3/8″
• Machine height: 84″
• Machine floor space: 51″ x 32″
• Weight: 1540 lbs
