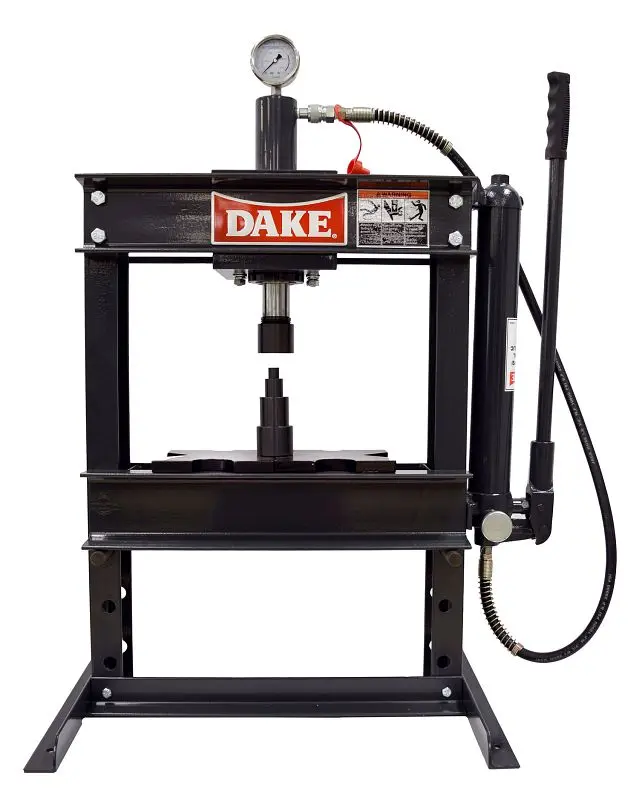

Dake Functionality Hydraulic Presses, Model B-10, 36" Height, 972200

Dake Functionality Hydraulic Presses, Model B-10, 36″ Height, 972200

10 ton capacity. Dake”line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The B-10 model is a 10 ton capacity bench press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.

Attributes:

• Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation.
• Accessible top mounted gauge reads in tons and psi to monitor pressure.
• Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel.
• Large diameter, single acting polished piston with internal spring return to eliminate external pinch points.
• The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces.

Quality Equipemnt:

• Frame
• Flat Ram Nose
• Combination Table Plates/V-Blocks
• Step Reduced Ram Nose

Technical specs

• Model Number: B-10
• Capacity: 10 tons
• Operation: Manual
• Width between uprights: 16-3/4″
• Width between table channels: 3″
• Minimum ram to table: 4″
• Maximum ram to table: 16″
• Ram travel: 6″
• Horizontal workhead travel: left/right of center
• Footprint: 23″ x 18″
• Height: 36″
• Weight: 165 lbs
• Base: 23″ x 18″
• Ram advance speed: 1/8″ per stroke
